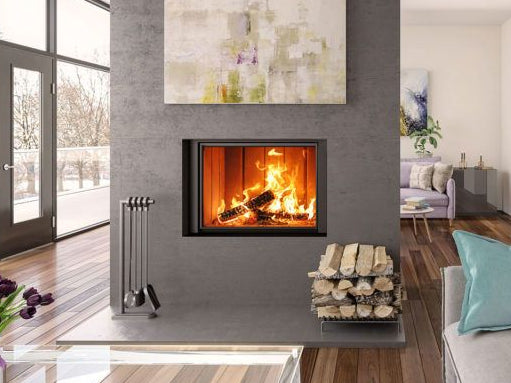

Uptown 600

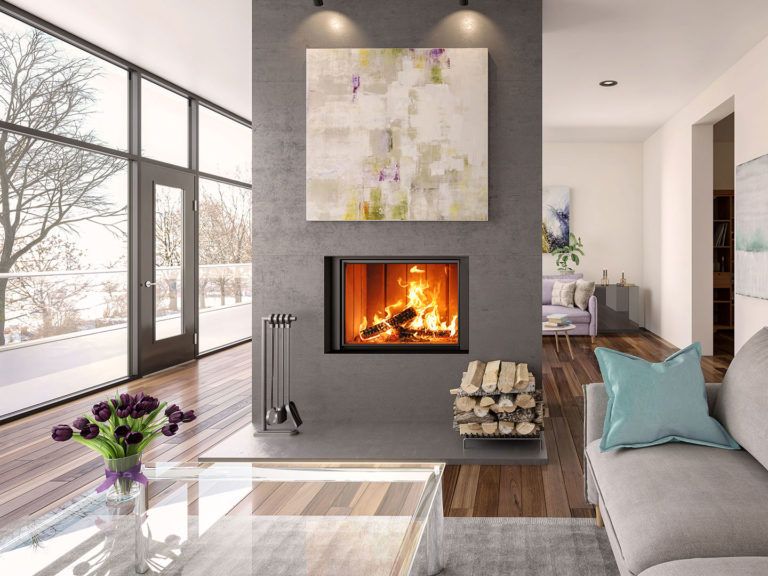

The Renaissance Uptown 600 is a clean-lined, moderately sized wood fireplace with a 600 sq. in. view of an open, crackling fire. Its guillotine door and screen glide on counterweighted vertical rails, and a tilt-forward system makes loading, cleaning and servicing easy.

Finished with a straight trim (for heavier masonry) or a frame trim (for tile or cement board).

Specifications

• Fuel Type: Wood (cordwood), 3–4 medium logs max load
• Firebox Size: 28 1/2" W × 13" D
• Max Log Length: 24"
• Overall Dimensions: 44 3/4" W × 56 5/8" H × 28 1/4" D
• Shipping Weight: 705 lbs
• Door Type: Guillotine glide-rail door and screen
• Door Opening: 36 7/8" W × 26 1/8" H
• Glass Size: 28 1/2" W × 20 3/8" H
• Firebox Lining: Refractory brick
• Heat Recovery System: Included (circulating air ducts and grills)
• Flue Diameter: 8" EXCEL chimney, 12 ft minimum; masonry chimney approved with adapter
• Gas Log Provision: Yes, up to 50,000 BTU (no gas lighter)
• Emissions: 4.8 g/kg (EPA Phase 2 qualified, ASTM 2558)
• EPA Status: Not regulated as a heater; can be sold in Canada and the USA

Clearances

Minimum clearances to combustibles from the installation manual (same values for Canada and the USA). Always confirm with the manual and local code before installing.

• Combustible mantel: 7" above the guillotine bay opening (up to 4" deep); deeper shelves need depth + 3", up to 15" above for the 12" max depth
• Combustible mantel posts: 5" from side of opening (up to 3" deep), up to 10 1/2" for 12" deep
• Non-combustible mantel: Can be placed anywhere around the opening
• Side wall: 20" from the guillotine bay opening
• Minimum ceiling height: 84" (7 ft) from base of fireplace
• Hearth extension: 18" deep from fireplace front × 45" wide, centred on opening
• Side and back standoffs: 0"
