JC Bordelet

Tatiana

Tatiana

In stock

Regular price $16,877.00 CAD
Regular price Sale price $16,877.00 CAD
Sale Sold out

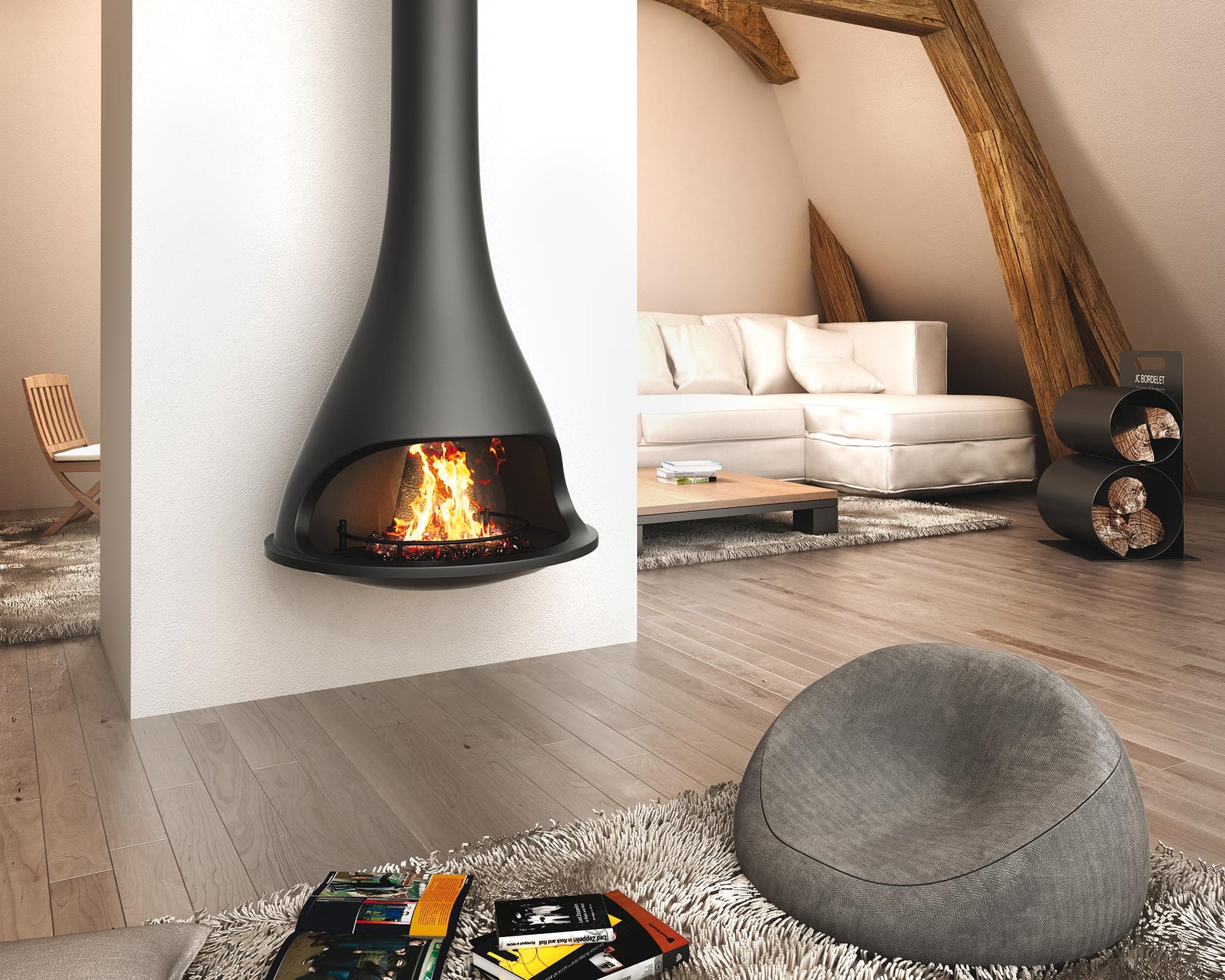

The JC Bordelet Tatiana is a sculptural suspended wood fireplace designed to be the centrepiece of a room, available in four finish colours with an optional 360° pivoting firebox. It can be ceiling-suspended or wall-mounted, and the wall-mounted version accepts an optional gas log set.

A firescreen is required and not included.

Specifications

  • Fuel Type: Wood (standard); natural gas or propane log set optional on the wall-mounted version
  • Max Heat Output: 55,000 BTU (gas option)
  • Max Log Length: 22" (24 lb max load)
  • Overall Dimensions: 38 5/8" diameter (central) or 38 5/8" W × 29 5/16" D (wall-mounted); 72 5/8" H; minimum room height 96"
  • Fireplace Opening: 31 9/16" W × 12 1/8" H
  • Weight: 253 lb
  • Flue Diameter: 10" Class A, 15 ft minimum height
  • Clearance to Combustibles: 48" all around; 27" sides/back (fixed version)
  • Floor Protection: 78 19/32" diameter × 3/8" thick
  • EPA Status: EPA exempt

Clearances

Minimum clearances to combustibles from the installation manual (central suspended open wood installation, UL 127 / ULC-S610 listed for Canada and USA). Always confirm with the manual and local code before installing.

  • Clearance to combustibles (all around, 360°): 48"
  • Top of smoke pipe mounting flange to ceiling: 8 11/16"
  • Minimum ceiling height: 96" (8 ft) from floor
  • Floor protection: 78 5/8" diameter round non-combustible hearth, min 3/8" thick
  • Bottom of firebox opening above hearth: 8" minimum
