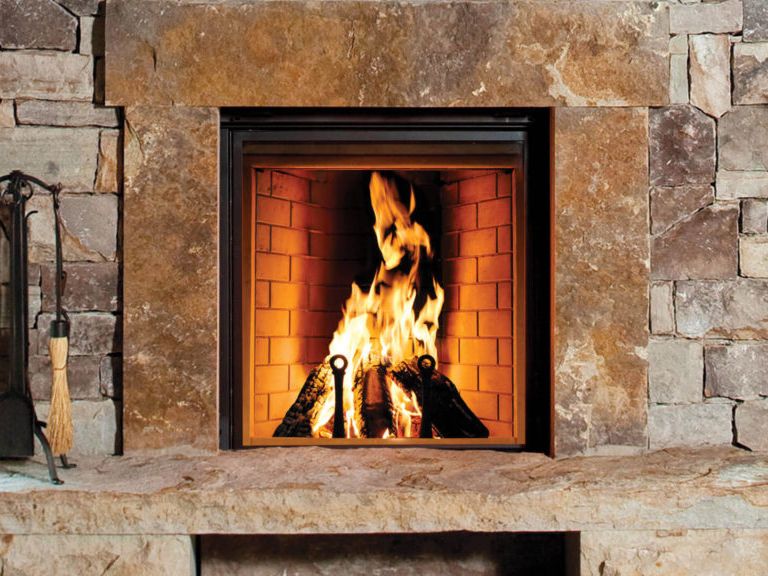

Rumford 1000

The Renaissance Rumford™ 1000 is based on the Rumford design, which was the world's first certified open-door clean-burning fireplace. Taller than a traditional fireplace, its patented true Rumford firebox shape is built with precision manufacturing for outstanding performance.

Specifications

• Fuel Type: Wood (cordwood)
• Firebox Size: 27 1/2" W front, 13 1/2" W back, 12 3/4" D
• Log Length: 20" at the front, 13" at the back laid flat; most stack logs upright
• Overall Dimensions: 51" W × 80 1/4" H × 28 1/4" D
• Shipping Weight: 720 lbs
• Door Type: Counterweighted guillotine ceramic glass door and firescreen
• Glass Size: 29 1/2" W × 31 1/2" H (1,023 sq. in.)
• Andirons: Cast iron
• Flue Diameter: 10" RIS chimney, 12 ft minimum (not certified for masonry)
• Outside Air: 4" (5" also accepted), meets R2000
• Min Ceiling Height: 8 ft
• Gas Log Provision: Yes, up to 70,000 BTU (no gas lighter)
• Emissions: 3.0 g/kg door open, 1.0 g/kg door closed
• EPA Status: EPA Phase 2 qualified (ASTM 2558); not regulated as a heater
• Mobile Home Approved: No

Clearances

Minimum clearances to combustibles from the installation manual (same values for Canada and the USA). Always confirm with the manual and local code before installing.

• Combustible mantel: 6" above the guillotine bay opening (up to 6" deep); 7"–12" deep needs height equal to depth (12" max depth at 12" above)
• Combustible mantel posts: 6" from side of opening (up to 3" deep), up to 10" for 12" deep
• Non-combustible mantel: Can be placed anywhere around the opening
• Side wall: 24" from the guillotine bay opening
• Minimum ceiling height: 96" (8 ft) from base of fireplace
• Hearth extension: 24" deep from fireplace front × 45" wide, centred on opening
• Side, back and top standoffs: 0"

Documents

• Installation Manual
• Owner's Manual
• Brochure
