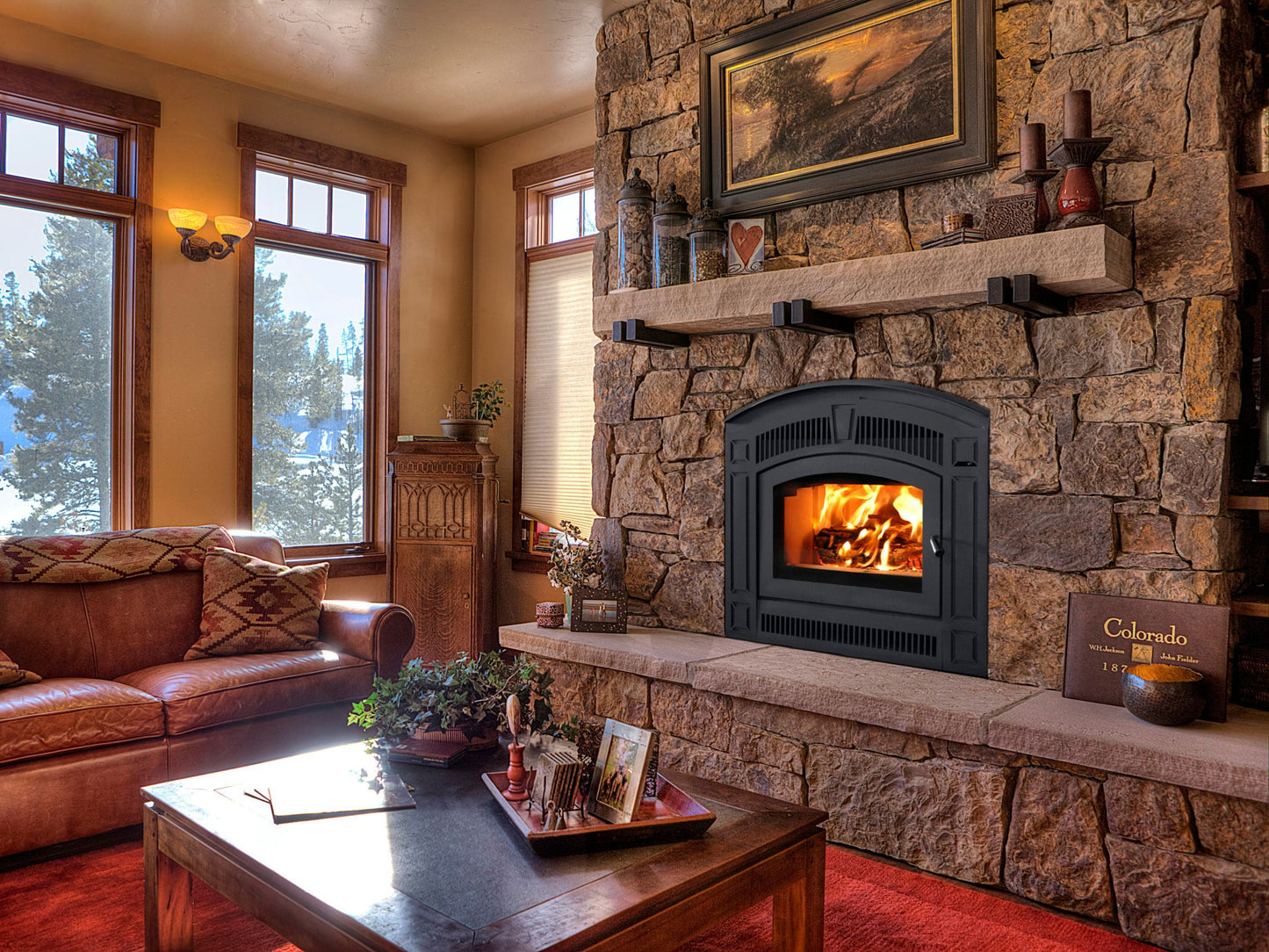

Pearl 3600

The RSF Pearl 3600 is a refined yet rustic built-in wood fireplace known for quality construction and strong performance. It comes with a black door and decorative faceplate, and an optional heat dump blower can move excess heat to the basement or an adjacent room at the flick of a switch.

Certified for use with a 6" ICC EXCEL chimney only.

Specifications

• Fuel Type: Wood (cordwood)
• Max Heat Output: Up to 50,000 BTU/h
• Efficiency: 74% EPA average (HHV), 79% optimal (LHV)
• Firebox Volume: 2.04 cu. ft.
• Max Log Length: 18" front, 16" back
• Overall Dimensions: 36 3/8" W × 43 3/4" H × 24 1/8" D
• Shipping Weight: 455 lbs
• Door Type: Black door with decorative faceplate
• Glass Size: 20 1/4" W × 13 1/4" H
• Flue Diameter: 6" ICC EXCEL chimney; masonry with 6" certified stainless liner
• Outside Air: 4" outside air duct ready (5" also accepted); can run on room air
• Combustion Technology: Non-catalytic
• Emissions: 1.7 g/h (CSA B415.1)
• Mobile Home Approved: Yes

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation; measured from the firebox opening unless noted). Always confirm with the manual and local code before installing.

• Side wall: 12" to side of firebox opening
• Combustible mantel: 12" max depth; 17" above top of door opening (0–4" deep) to 28" (12" deep)
• Combustible mantel posts: 9" to 11" from side of opening (by post depth)
• Minimum ceiling height: 6' (72") from bottom of standoffs; 7' in mobile homes
• Standoffs (sides, back, top): 0"
• Hearth extension: 18" in front, 36 1/2" min total width centred on opening

Documents

• Owner's Manual
