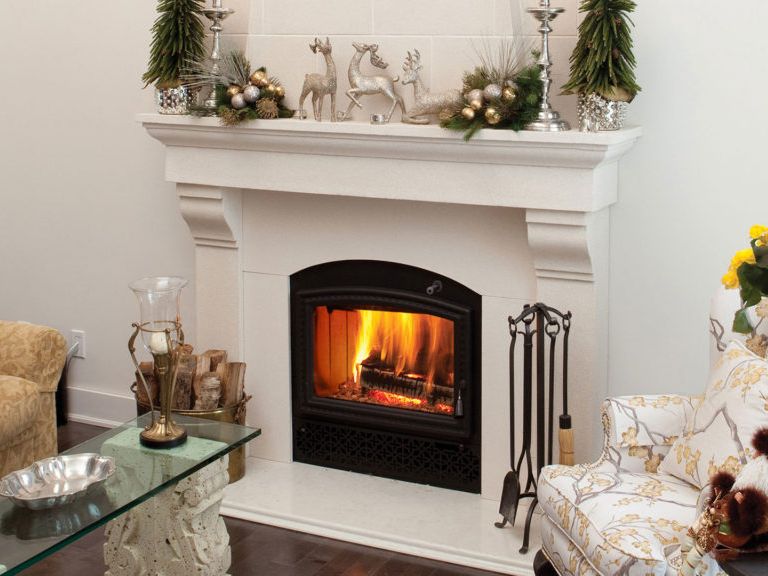

Opel 3 Plus

The RSF Opel 3 Plus takes RSF's catalytic fireplace to the next level with a wide single black door. EPA certified at just 0.7 g/h, it is one of the cleanest-burning wood fireplaces available.

Specifications

• Fuel Type: Wood (cordwood)
• Max Heat Output: 10,000 – 70,000 BTU/h
• Efficiency: 70% EPA average (HHV), 80% optimal (LHV)
• Firebox Volume: 3.6 cu. ft.
• Max Log Length: 18"
• Overall Dimensions: 37" W × 52 1/4" H × 24" D
• Shipping Weight: 553 lbs
• Door Type: Black single door
• Glass Size: 22 1/4" W × 14 9/16" H
• Flue Diameter: 7" ICC EXCEL chimney; masonry with 7" certified stainless liner
• Outside Air: 4" outside air duct ready (5" also accepted); can run on room air
• Combustion Technology: Catalytic
• Emissions: 0.7 g/h
• EPA Status: EPA 2020 certified
• Mobile Home Approved: No

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation; measured from the firebox opening unless noted). Always confirm with the manual and local code before installing.

• Side wall: 16" to side of firebox opening
• Combustible mantel: 12" max depth; 32" above top of firebox opening (0–4" deep) to 36 1/2" (12" deep)
• Combustible wall above facing: 39 1/4" from firebox opening
• Minimum ceiling height: 7' (84") from base of fireplace with sealed enclosure; 6' (72") with vented enclosure
• Standoffs (sides, back, top): 0"
• Hearth extension: 18" in front, 42" min total width centred on opening

Documents

• Owner's Manual
