Matrix 2700 Insert

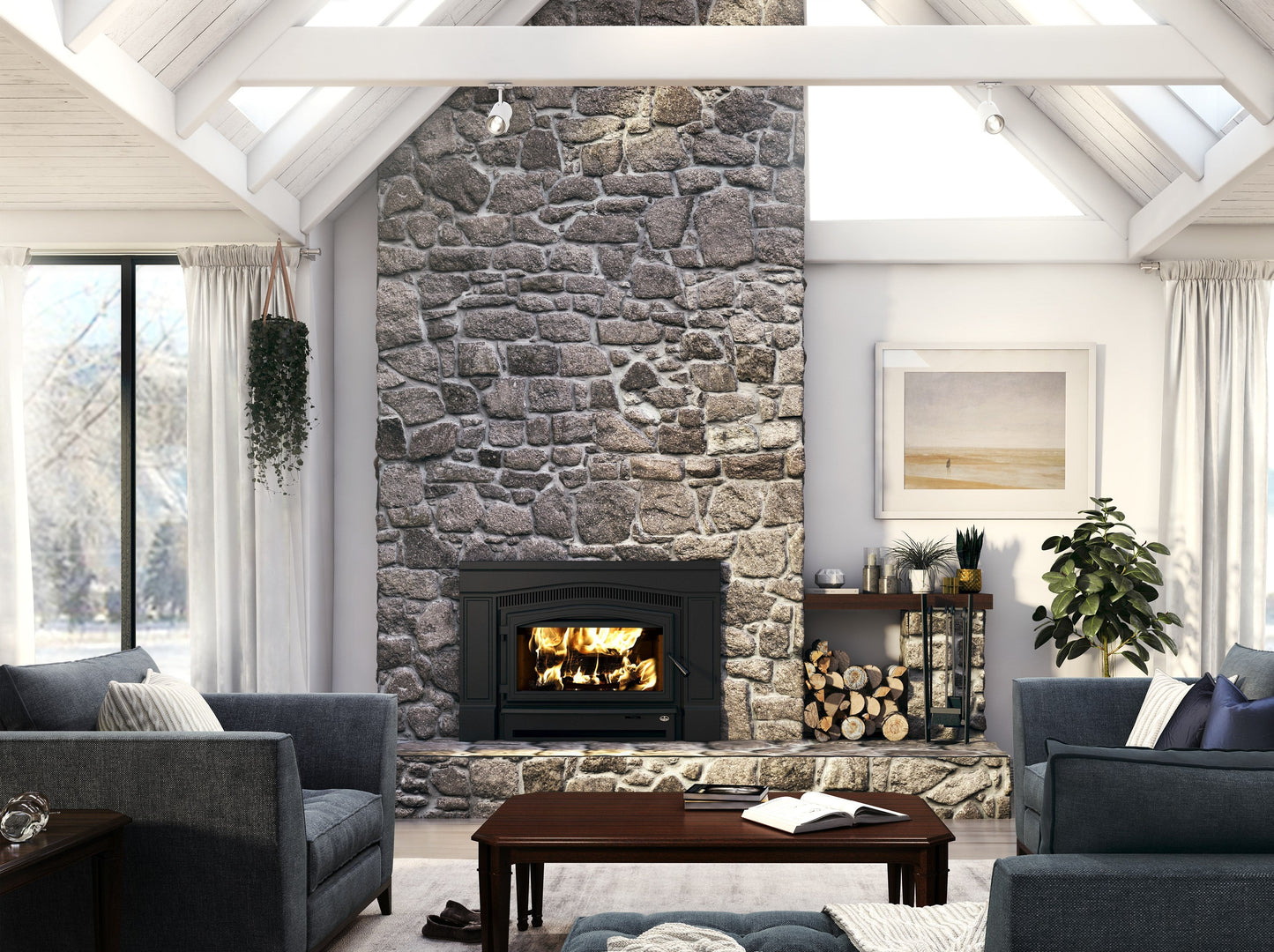

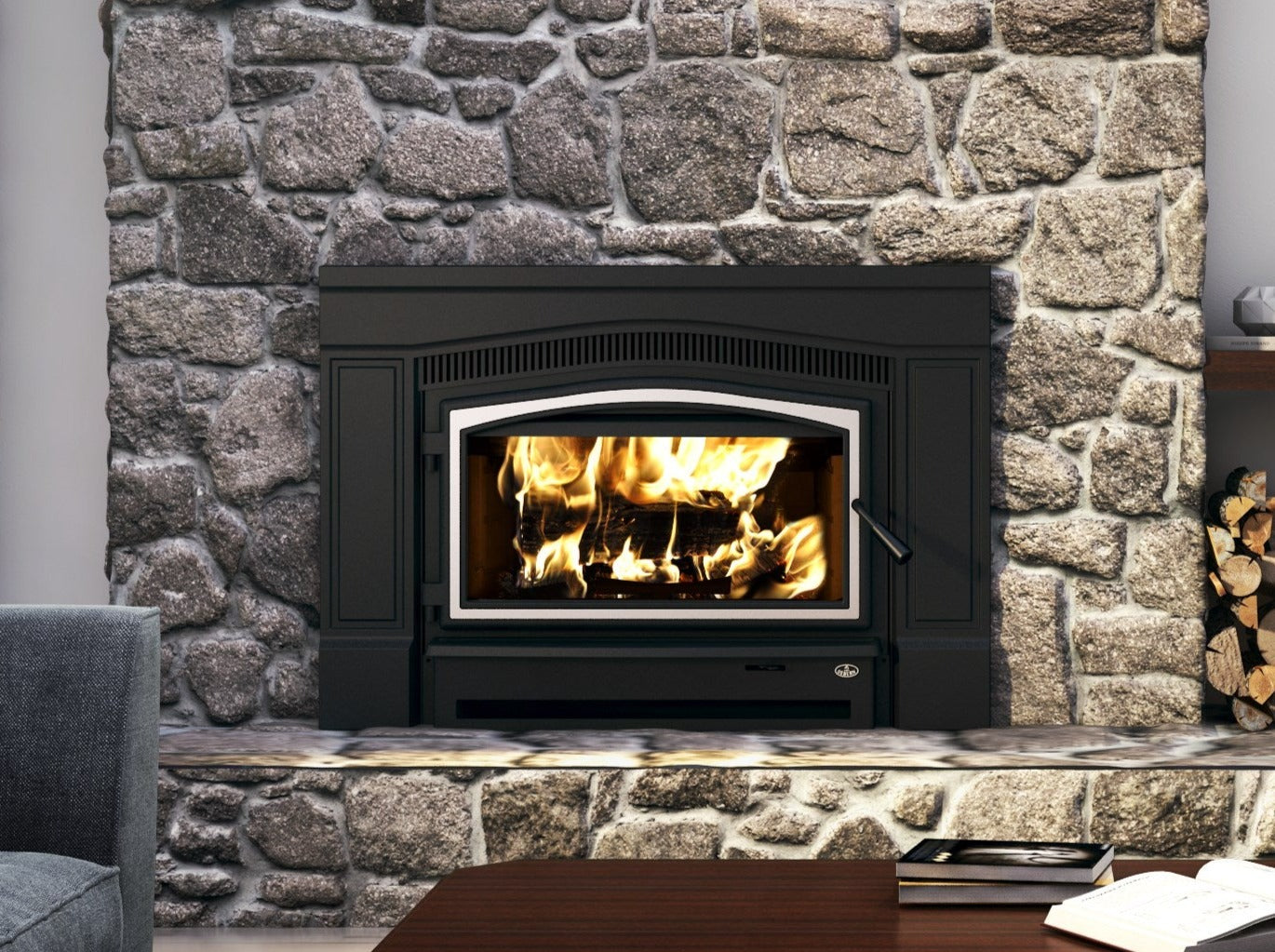

The Osburn Matrix 2700 is a wood insert that blends traditional style with modern combustion, with a generous viewing area for the fire. It comes standard with a cast iron faceplate and heat-activated blower, and the door overlay is available in black or brushed nickel.

Specifications

• Fuel Type: Wood (dry cordwood, 16" recommended)
• Combustion Technology: Non-catalytic
• Max Heat Output: 80,000 BTU/h (23.4 kW)
• Efficiency: 68% average (HHV), 74% optimum
• Max Burn Time: 8 h
• Firebox Volume: 2.5 cu ft
• Max Log Length: 20"
• Overall Dimensions: 43 5/8" W × 30 1/8" H × 27 1/4" D
• Minimum Fireplace Opening: 31 3/4" W × 27 1/8" H × 22 1/8" D
• Weight: 535 lb (243 kg) shipping
• Flue Diameter: 6"
• Blower: Included (heat-activated)
• Emissions: 1.2 g/h
• EPA Status: EPA 2020 certified

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation in a masonry fireplace, without projection kit). Always confirm with the manual and local code before installing.

• Side wall: 19"
• Side trim / facing: 9 1/2"
• Mantel: 12" above top of faceplate, 12" max depth
• Hearth extension (front): 18" from door opening (20" with R-value 1.00 if the hearth is raised 2" or less)

Documents

• Owner's Manual
• Dimension Sheet
