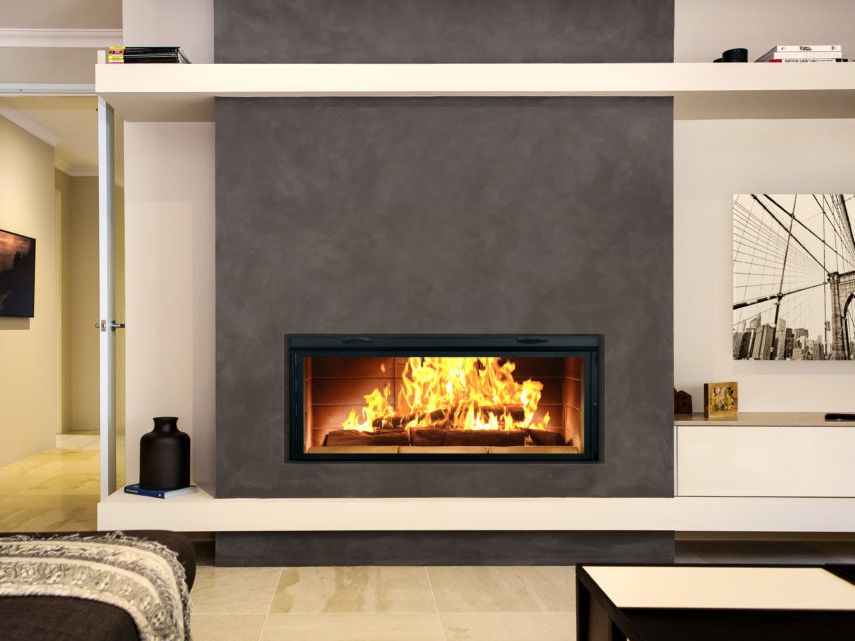

Linear 50

The Renaissance Linear 50 brings a wall-to-wall fire to contemporary wood burning, with the crackle and nostalgia people expect from a real fireplace. A counterweighted guillotine ceramic glass door and screen and an included heat recovery system round it out.

Specifications

• Fuel Type: Wood (cordwood), 4–5 medium logs max load
• Firebox Size: 44 1/2" W × 14" D
• Max Log Length: 24" (do not exceed max load or log length)
• Overall Dimensions: 70 3/8" W × 66 3/8" H × 28 3/4" D
• Shipping Weight: 1,130 lbs
• Door Type: Counterweighted guillotine ceramic glass door and screen
• Door Opening: 50 7/16" W × 19 7/8" H
• Glass Size: 45 7/8" W × 15 3/8" H
• Firebox Lining: Refractory brick

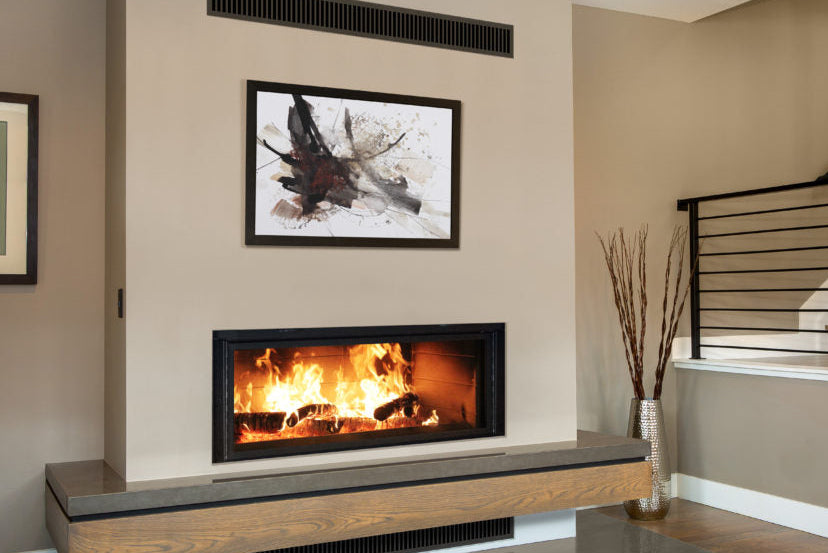

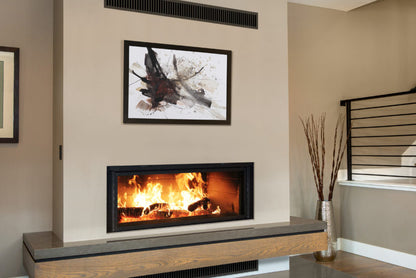

• Heat Recovery System: Included: two 10" outlet and two 10" inlet ducts (5 ft each) and four 13 1/2" × 6" wall grills
• Flue Diameter: 10" RIS chimney, 12 ft minimum (more with elbows); not certified for masonry
• Outside Air: 4" (5" over 20 ft), meets R2000
• Gas Log Provision: Yes (no gas lighter)
• EPA Status: Not regulated as a heater; can be sold in Canada and the USA
• Mobile Home Approved: No

Clearances

Minimum clearances to combustibles from the installation manual (same values for Canada and the USA). Always confirm with the manual and local code before installing.

• Combustible mantel: 12" above top of fireplace opening (to bottom of shelf), 12" max depth
• Non-combustible mantel: Can be placed anywhere around the opening
• Side wall: 24" from the guillotine bay opening
• Minimum ceiling height: 108" (9 ft) from base of bottom standoffs; 96" (8 ft) with optional EO-SG square grilles
• Hearth extension: 20" deep from fireplace front × 74 1/2" wide, centred on opening
• Side and back standoffs: 0"

Documents

• Installation Manual
• Owner's Manual
• Brochure
