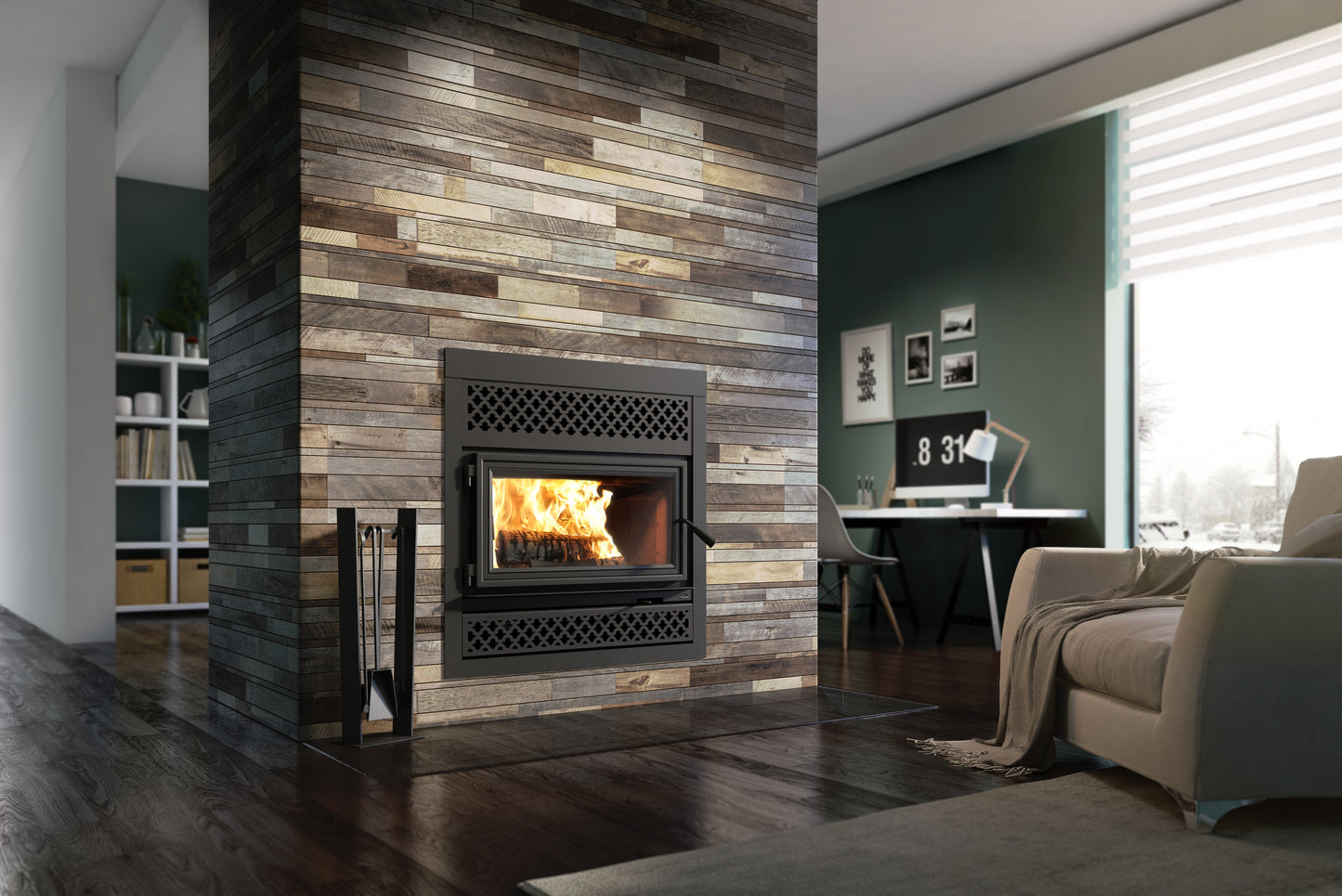

The Valcourt Lafayette IIS is a non-catalytic wood fireplace with a square faceplate that pairs modern heating technology with classic good looks. Choose from five faceplate louver styles and black or brushed nickel door overlays, and enjoy burns of up to 8 hours with a blower included.
Specifications
Fuel Type: Wood (dry cordwood, 16" recommended)
Max Heat Output: 80,000 BTU/h
Heat Output Range: 14,200 – 48,200 BTU/h
Efficiency: 68% average (HHV), 73% (LHV)
Max Burn Time: 8 h
Firebox Volume: 2.5 cu. ft.
Max Log Length: 20"
Overall Dimensions: 36 3/4" W Ă— 40 5/8" H Ă— 28 5/8" D
Shipping Weight: 495 lb (225 kg)
Firebox Lining: Moulded refractory bricks
Flue Diameter: 6"
Blower: Included
Combustion Technology: Non-catalytic
Emissions: 1.14 g/h
EPA Status: EPA 2020 certified
Clearances
Minimum clearances to combustibles from the installation manual (Canadian installation; side measurements from the door opening). Always confirm with the manual and local code before installing.
Side wall: 13" from door opening
Combustible side mantel / trim: 3" max depth, 8" min from door opening
Mantel shelf: combustible 58" above fireplace base (6" deep) to 64" (12" deep); non-combustible 48" min
Minimum ceiling height: 80" from base of fireplace
Framing (reference): 37 3/4" W Ă— 41 5/8" H (to first header) Ă— 24 7/8" D
Enclosure (back, sides, floor): 0"
Hearth extension: 16" in front, 8" each side of door opening
