Osburn
Inspire Insert
Inspire Insert
Out of stock
Couldn't load pickup availability

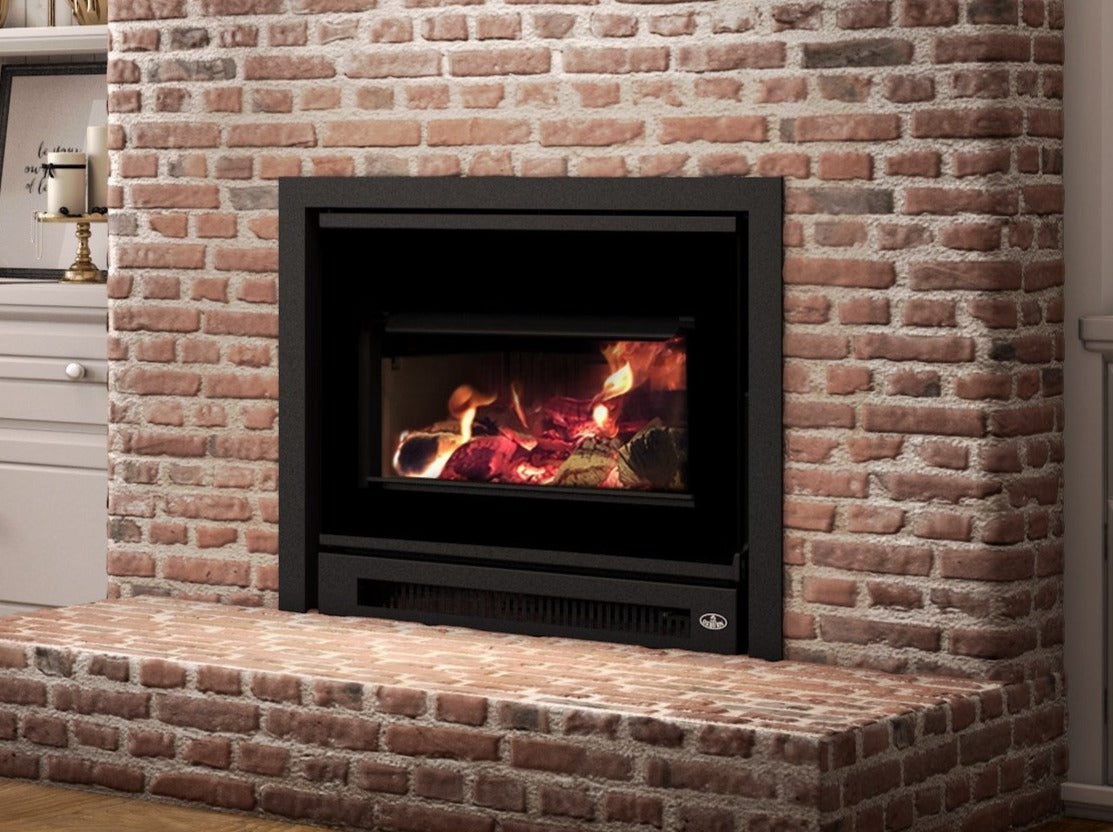

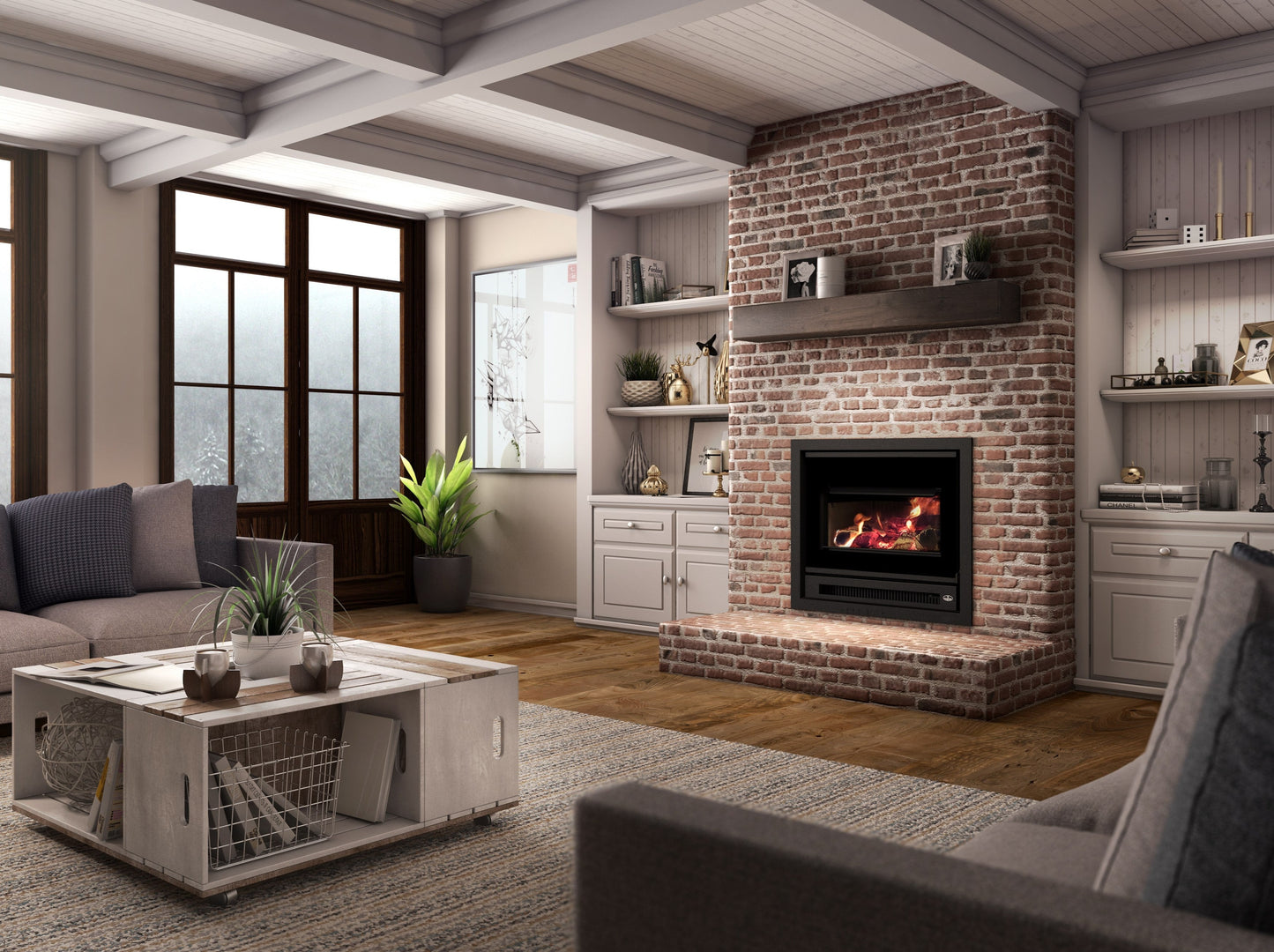

This wood insert will bring unmatched modernism to your decor, in addition to perfectly combining functionality and comfort. The impeccable lines display a timeless style while guaranteeing reliability and durability.
Whether you want to enjoy a broad view of the flames in the comfort of your living room during a romantic evening or simply to benefit from impressive heat in cold weather, the Inspire will charm you as much by its aesthetics as its 77% optimal performance. With its particle emission rate as low as 1.54 g/h and its high-performance combustion system, environmentalists have never been as happy with wood heating. The Inspire Collection celebrates our past and embraces our future as our team is committed more than ever to our industry's contribution to sustainability. A dream opportunity on the latest trends!
Specifications
Appliance Performance
| Fuel type : | Dry cordwood (16" recommended) | |
| Recommended heating area-ft² : | 500 - 2,100 | |
| Overall firebox volume-ft³ : | 2.4 | |
| EPA loading volume-ft³ : | 2.02 | |
| Maximum burn time : | 8 h | |
| Maximum heat output-dry cordwood : | 75,000 BTU/h (22 kW) | |
| Overall heat output rate < : | 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)) | |
| Average overall efficiency (dry cordwood) : | 69 % (HHV) | 74 % (LHV) |
| Optimum overall efficiency : | 77 % | |
| Optimum heat transfer efficiency : | 75 % | |
| Average particulate emissions rate : | 1.54 g/h | |
| Average CO : | 89.4 g/h | |
Manual and Dimensions
Osburn Inspire Insert Dimensions
Faceplate Installation Instructions
