Jøtul

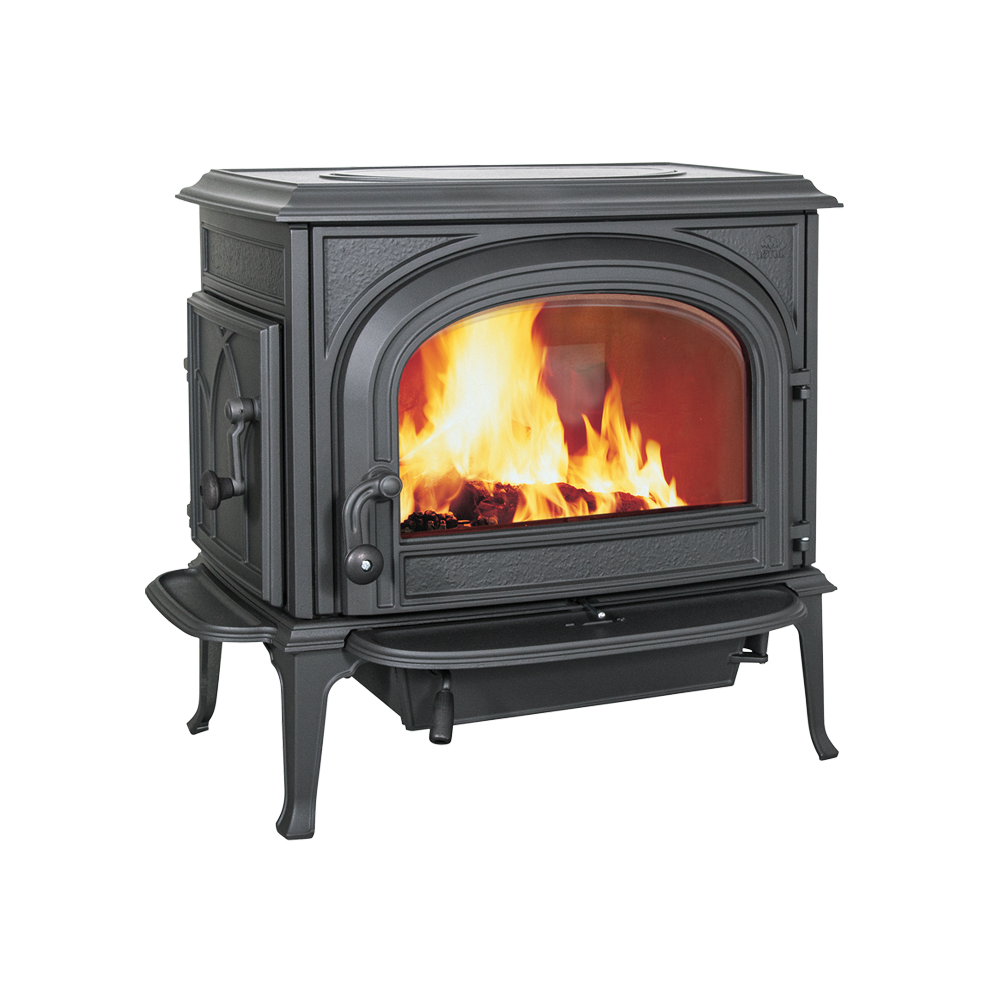

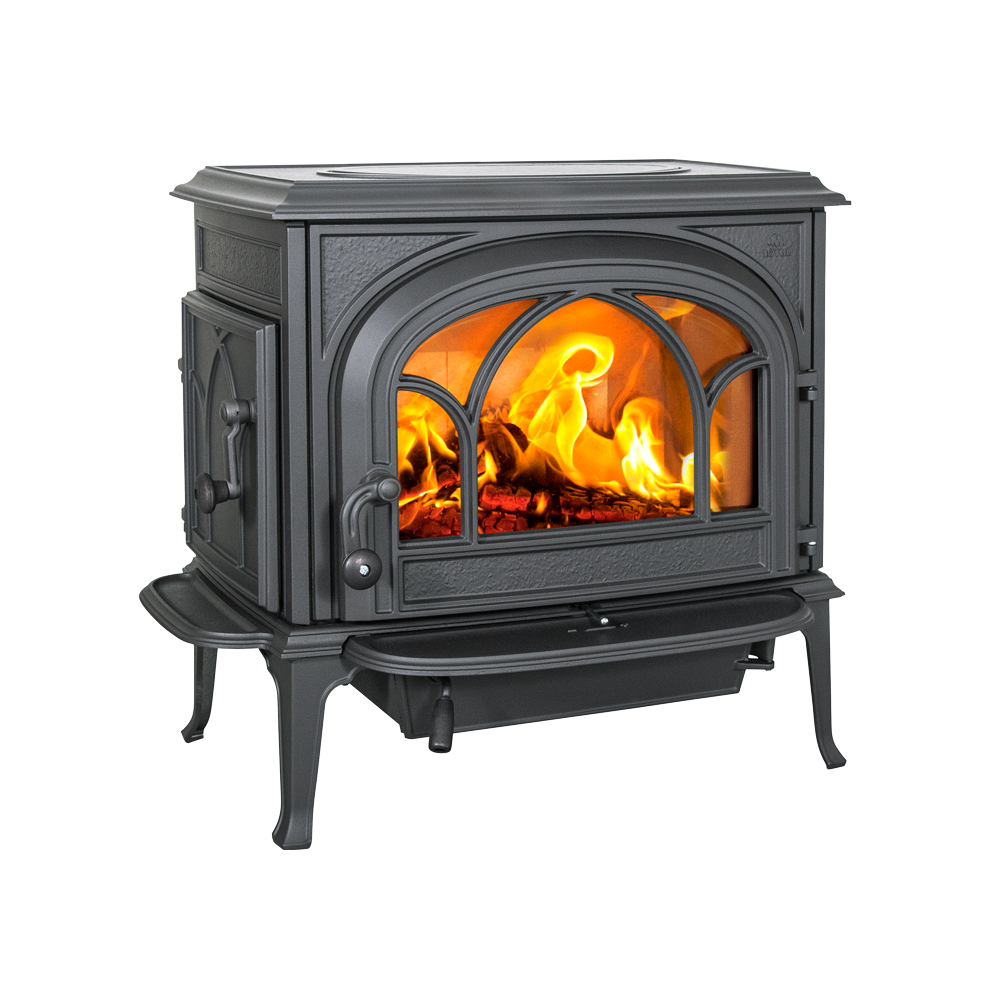

F 500 V3 Oslo
F 500 V3 Oslo
In stock
Call for pricing
The Jøtul F 500 V3 Oslo is a two-time Vesta award winner and one of the best-known cast iron wood stoves around. Patented Jøtul Fusion™ technology pairs a non-catalytic design with the Jøtul High Flow™ combustor, so it burns clean 100% of the time with no bypass, allows closer clearances than typical hybrids, and resists back-puffing and draft sensitivity.

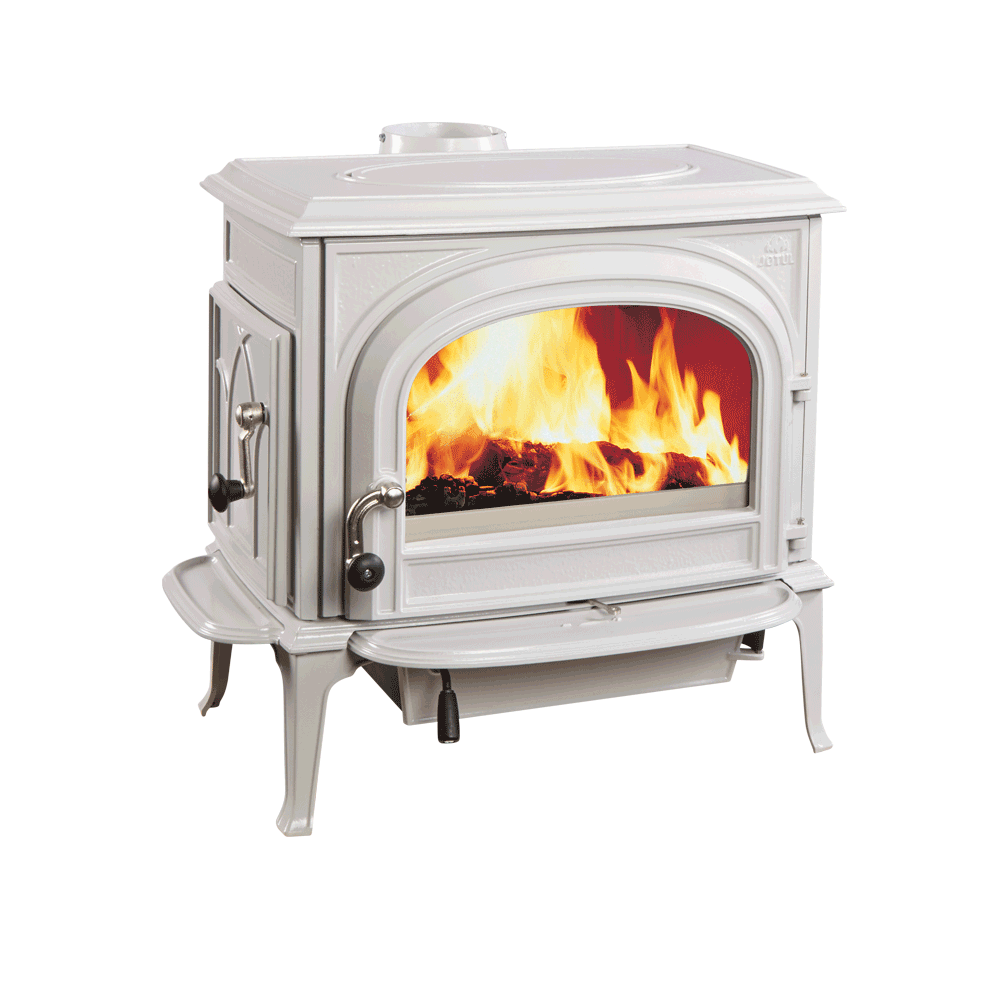

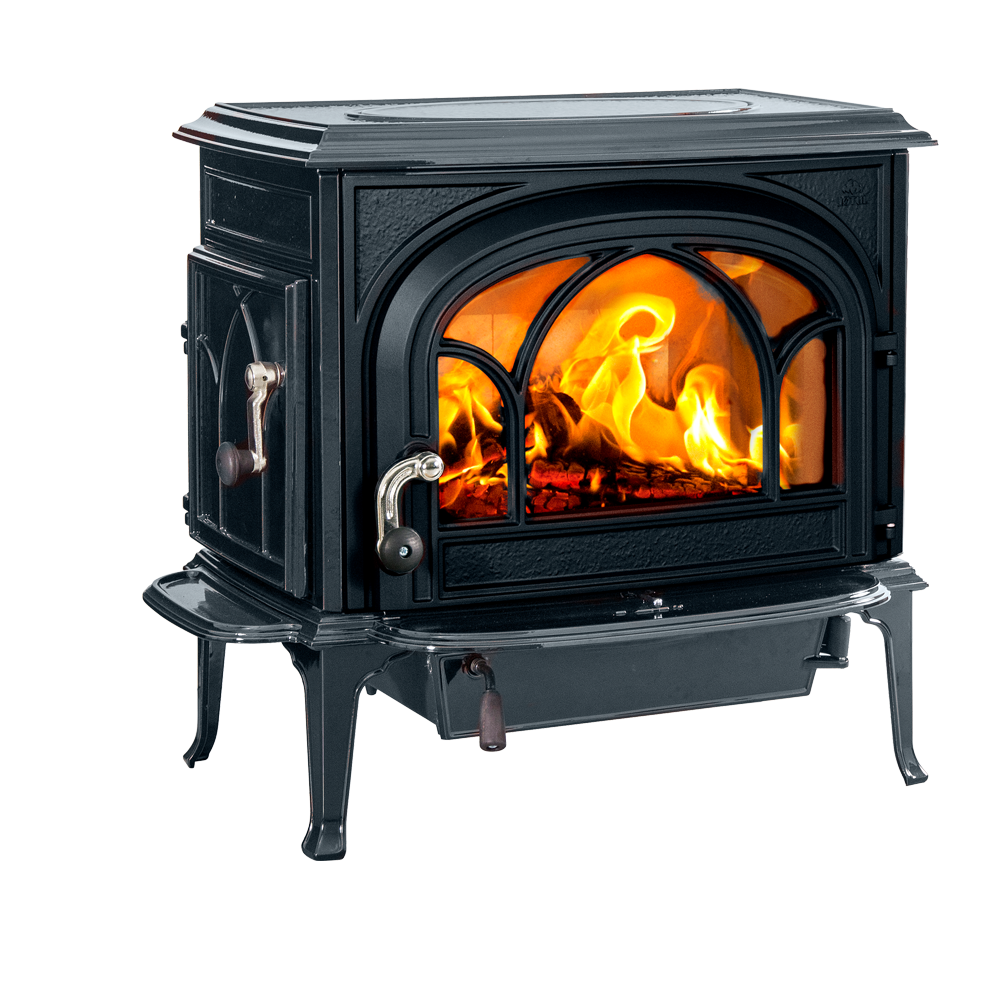

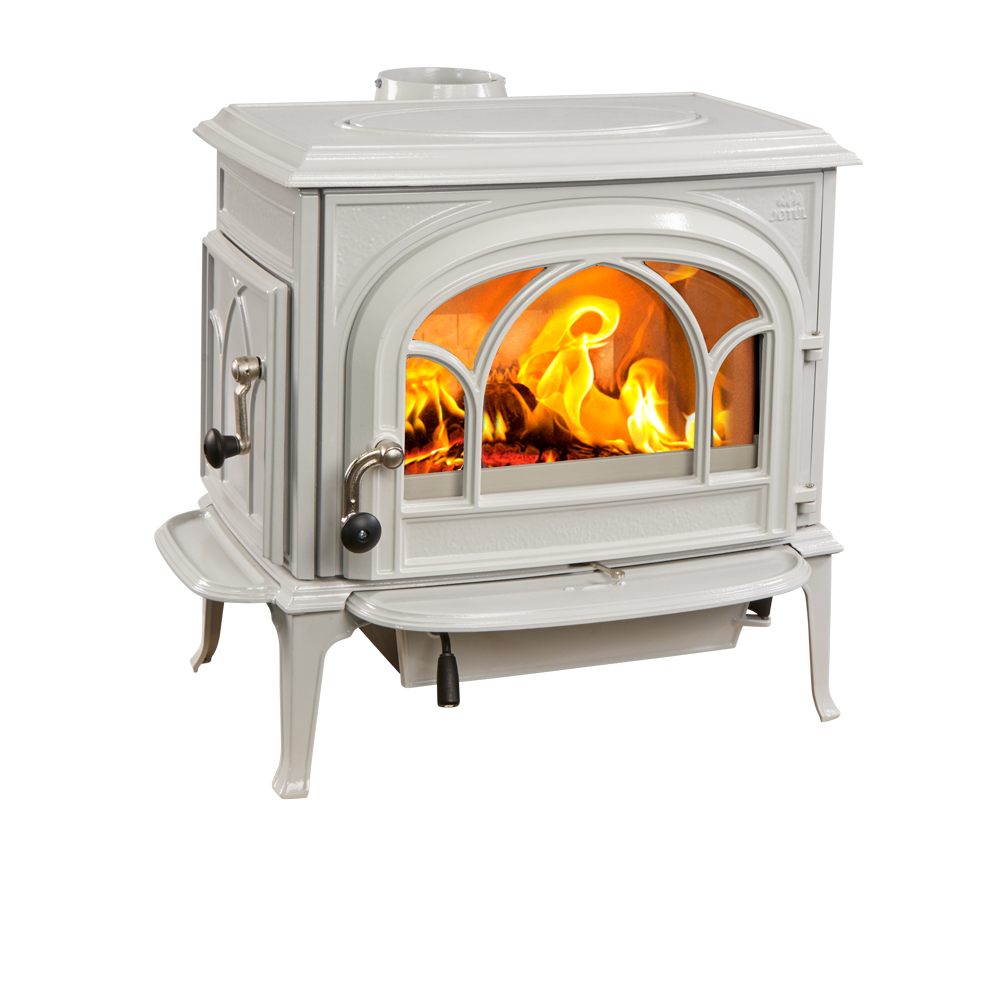

Enamel finishes are special order and take longer to ship.
Specifications
- Fuel Type: Wood (cordwood)
- Max Heat Output: Up to 70,000 BTU
- Efficiency: 84.7% LHV, 78.4% HHV
- Max Burn Time: Up to 10 hours
- Max Log Length: 24"
- Overall Dimensions: 28 1/4" W × 28 1/2" H × 22 1/2" D
- Weight: 445 lbs
- Flue Diameter: 6", top or rear exit
- Emissions: 0.5 g/hr
Clearances
Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls; the manual lists double-wall clearances with the rear heat shield installed). Always confirm with the manual and local code before installing.
- Back wall (with rear heat shield): 6"
- Side wall: 14"
- Corner (with rear heat shield): 9"
- Floor protection (front): 18" in front of stove
- Floor protection (sides and back): 8"
