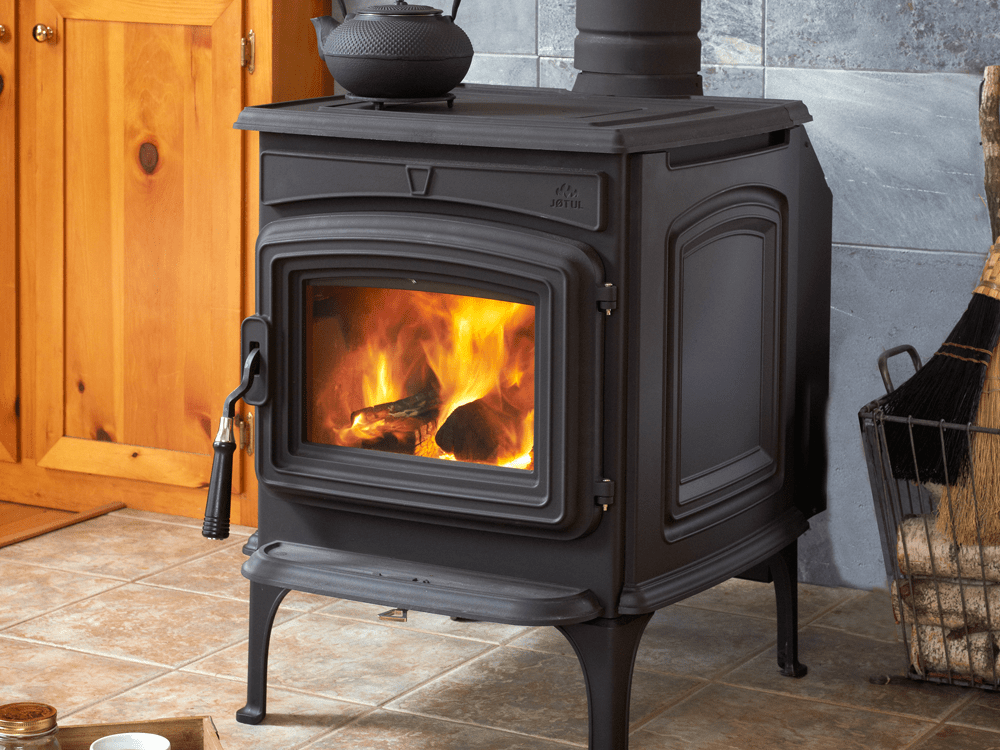

F 45 V2 Greenville

The Jøtul F 45 V2 Greenville is Jøtul's best-selling medium-size wood stove, EPA 2020 certified. Jøtul Turbulator™ non-catalytic technology keeps emissions low, and its close clearances to combustibles make it easy to fit, with cast iron and steel construction that offers excellent value.

Specifications

• Fuel Type: Wood (cordwood)
• Efficiency: 76.55% LHV, 71% HHV
• Max Burn Time: Up to 9 hours
• Max Log Length: 18"
• Overall Dimensions: 22 3/4" W × 29 3/4" H × 25 7/8" D
• Weight: 445 lbs
• Flue Diameter: 6", top exit
• Emissions: 1.8 g/hr
• EPA Status: EPA 2020 certified

Clearances

Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls unless noted). Always confirm with the manual and local code before installing.

• Back wall: 6"
• Side wall: 15"
• Corner: 11"
• Floor protection (front): 18" in front of stove
• Floor protection (sides and back): 8"

Documents

• Owner's Manual
