JC Bordelet

Eva

Eva

In stock

Regular price $25,014.00 CAD
Regular price Sale price $25,014.00 CAD
Sale Sold out

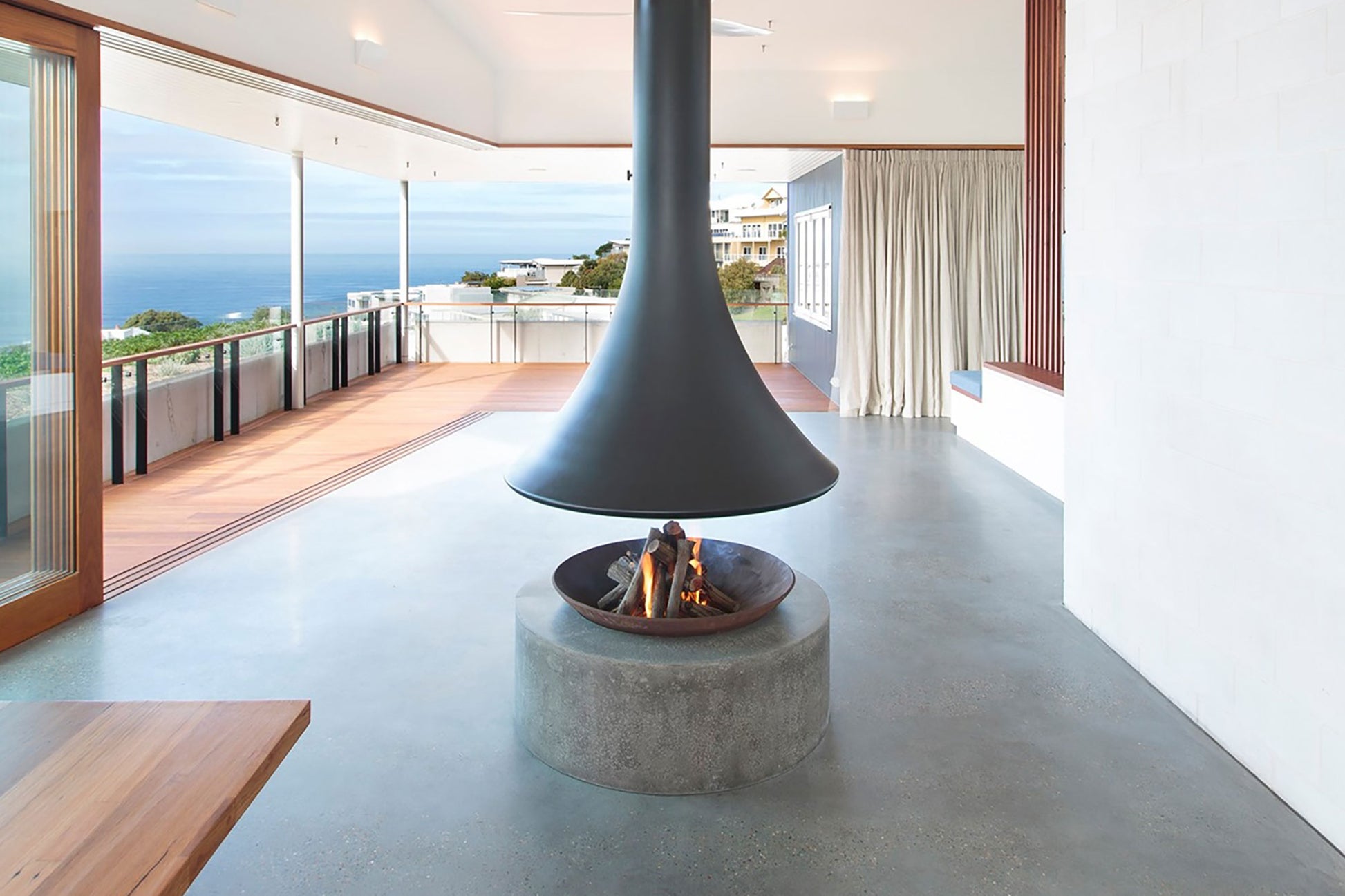

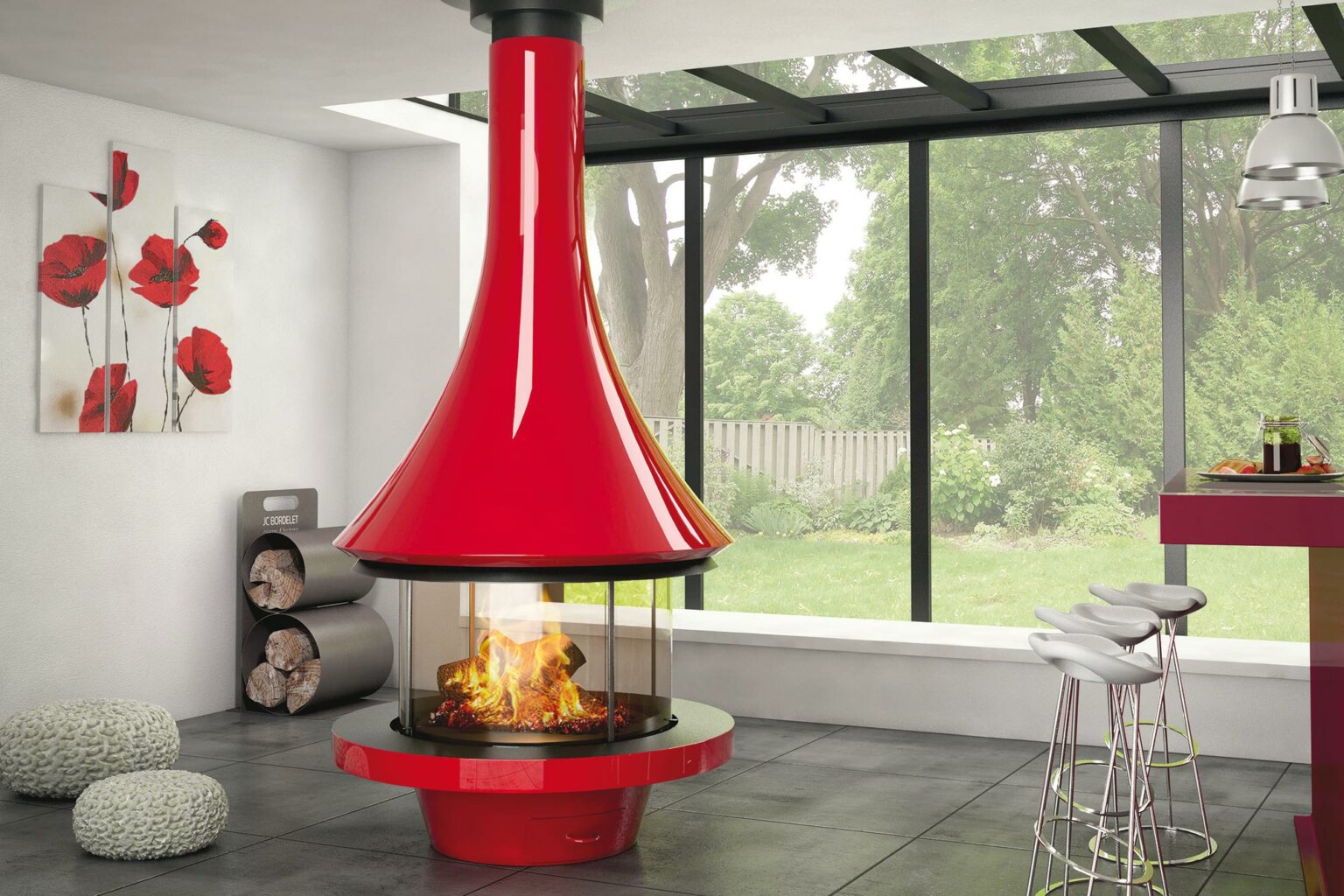

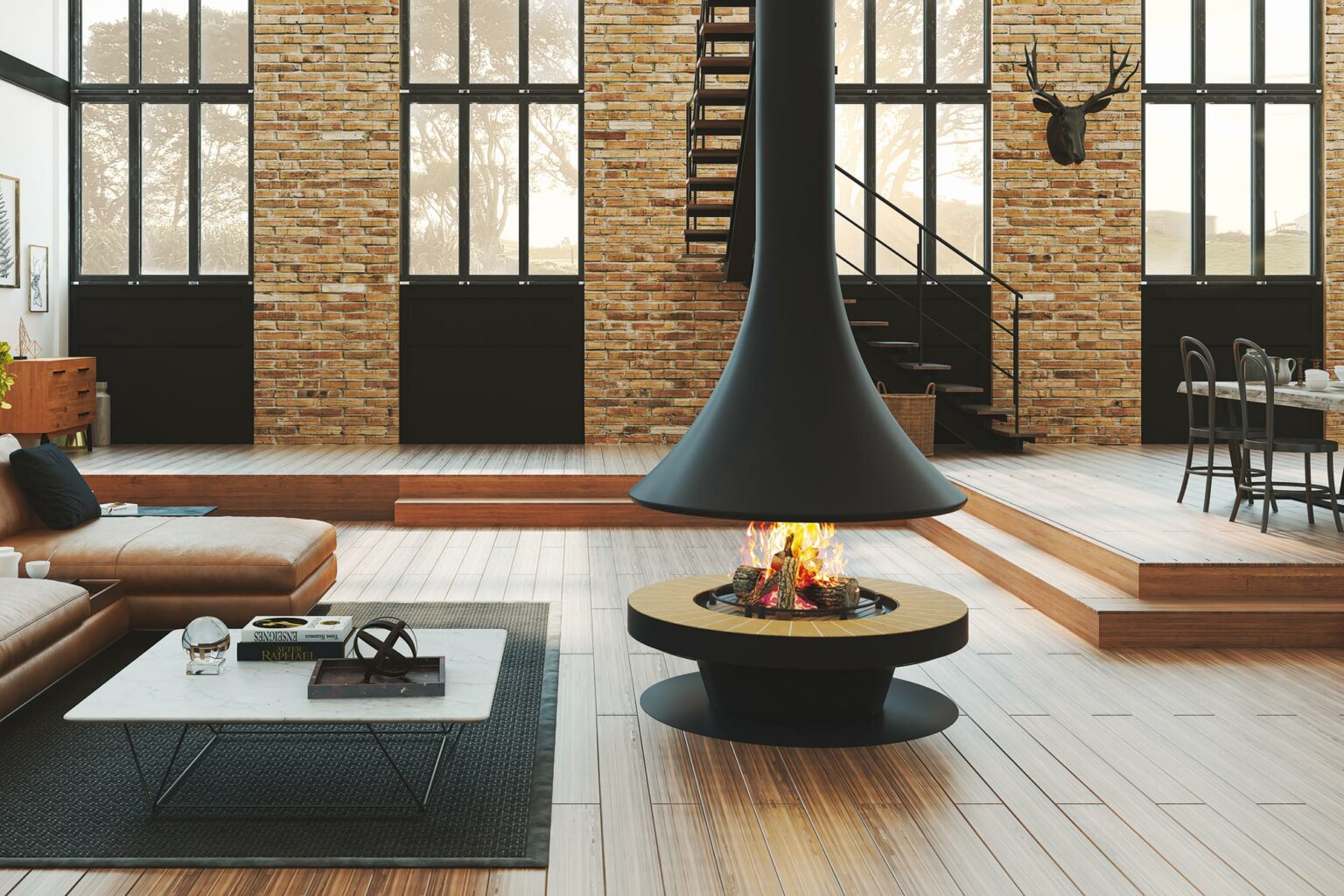

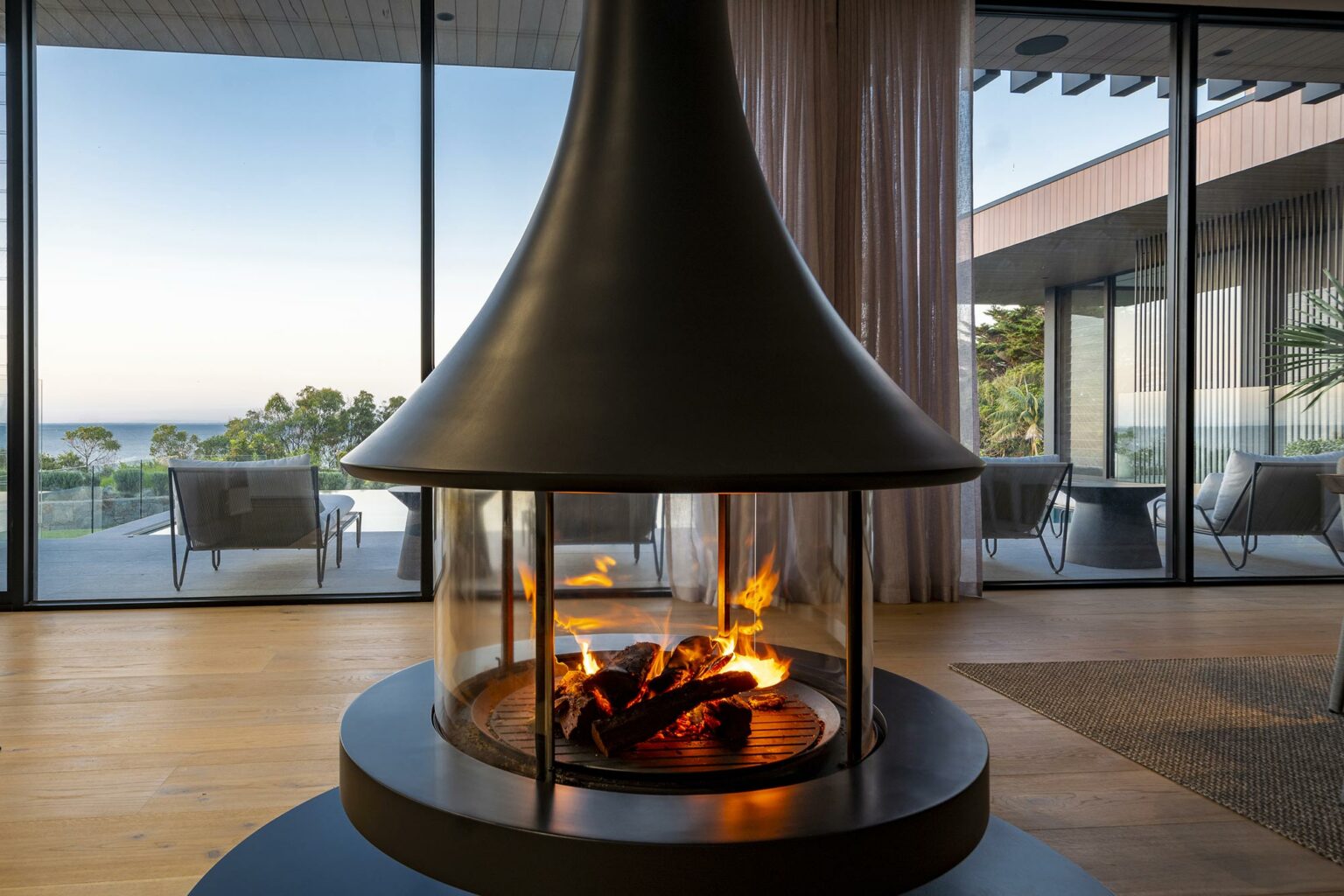

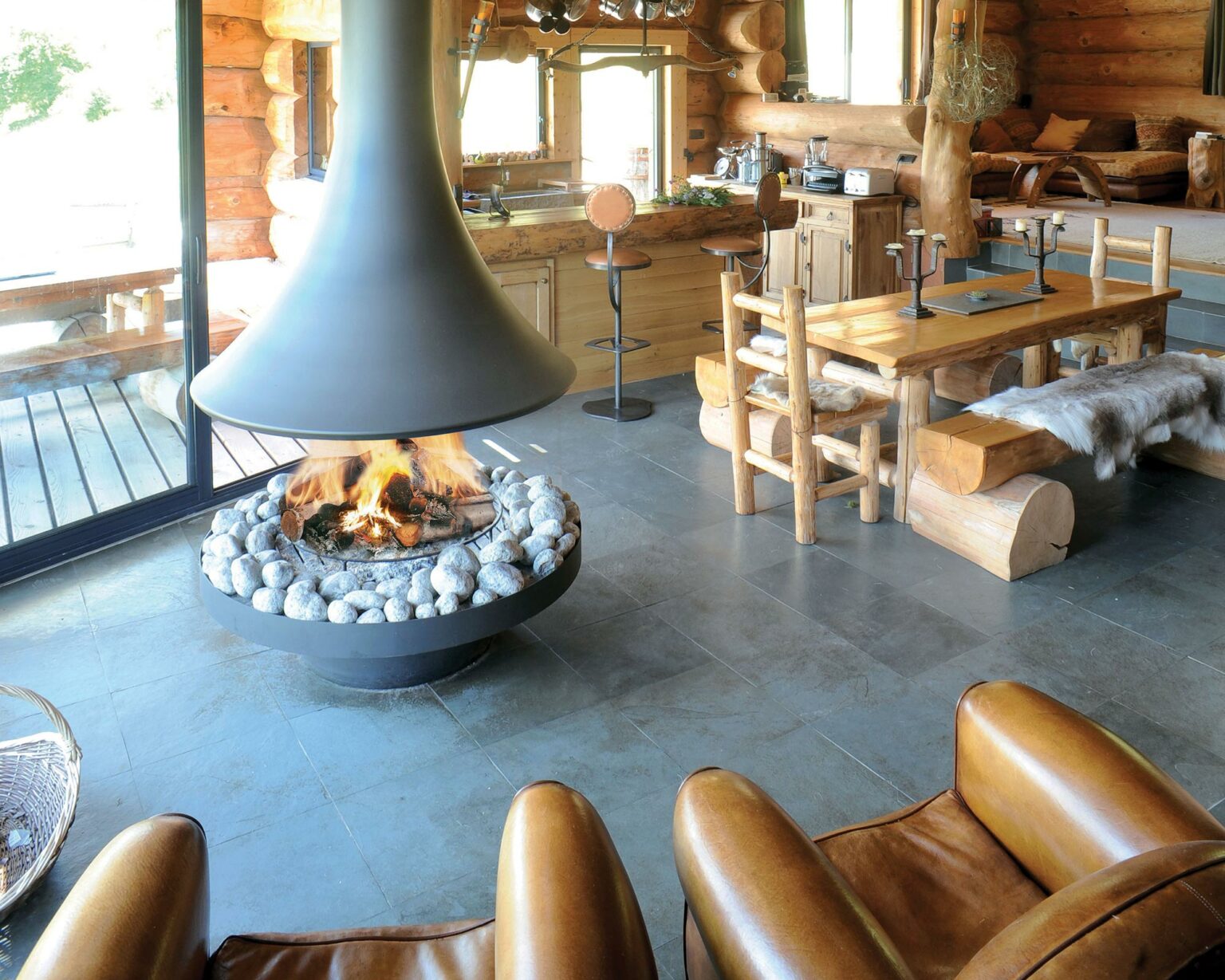

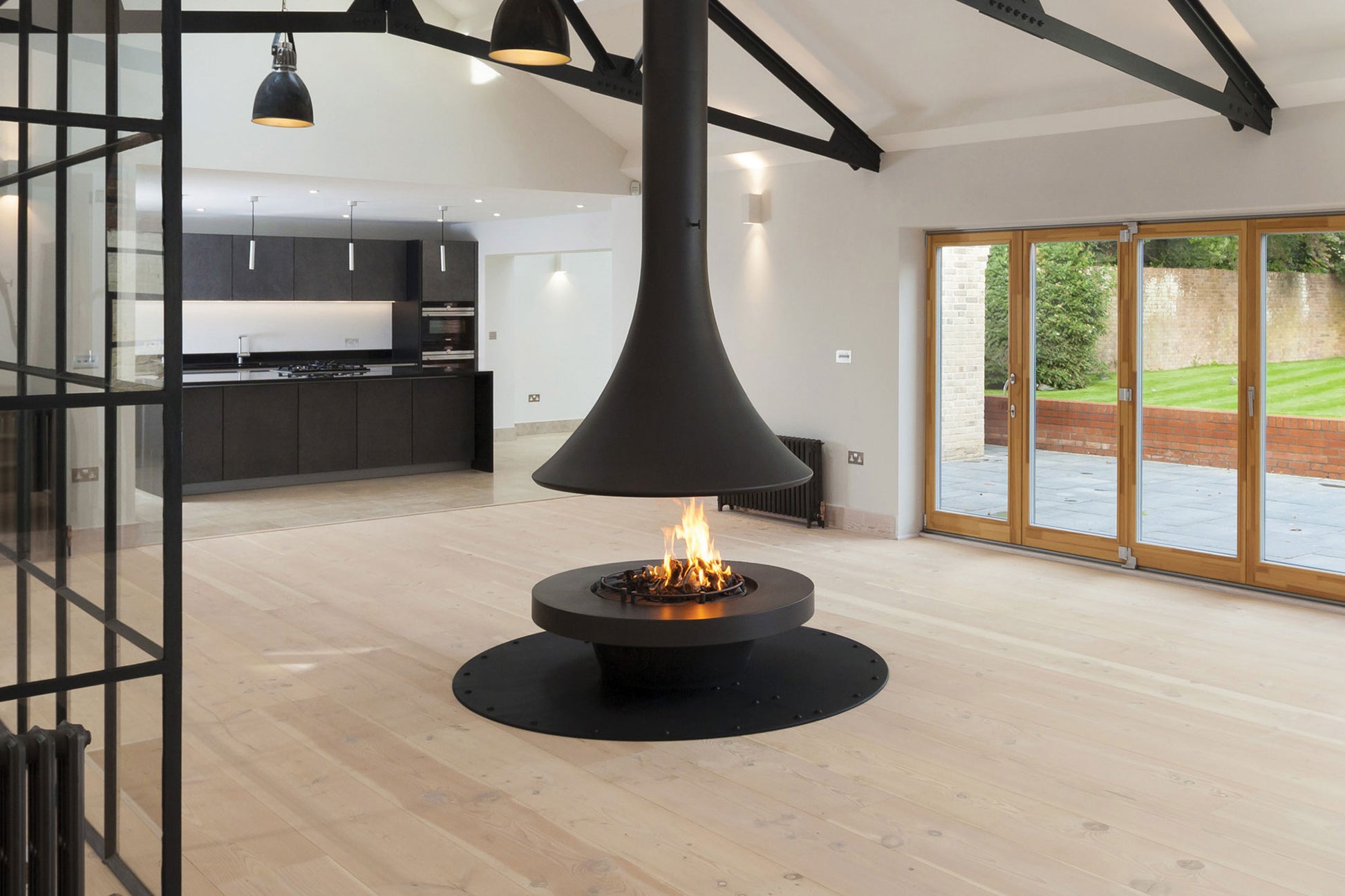

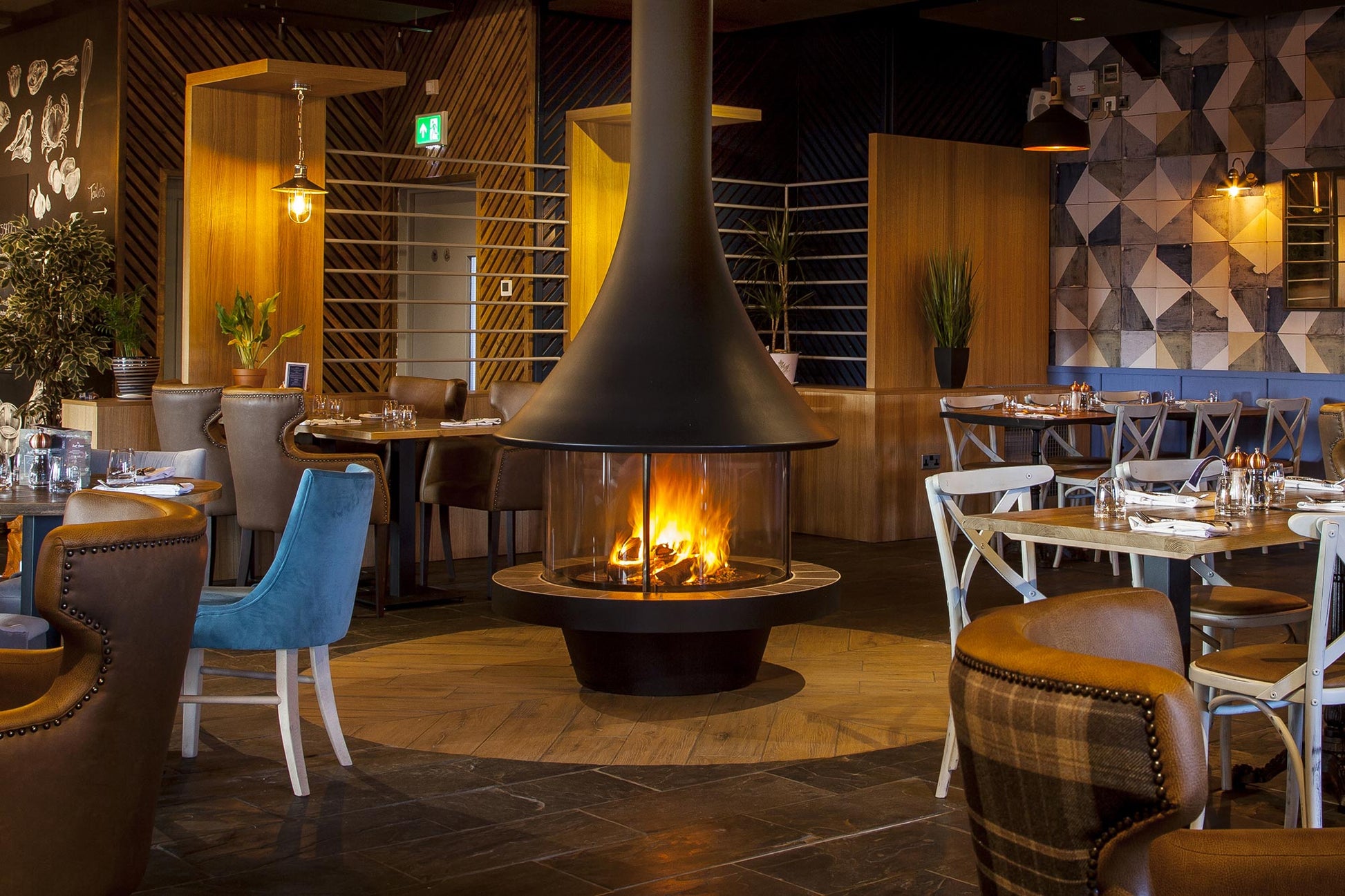

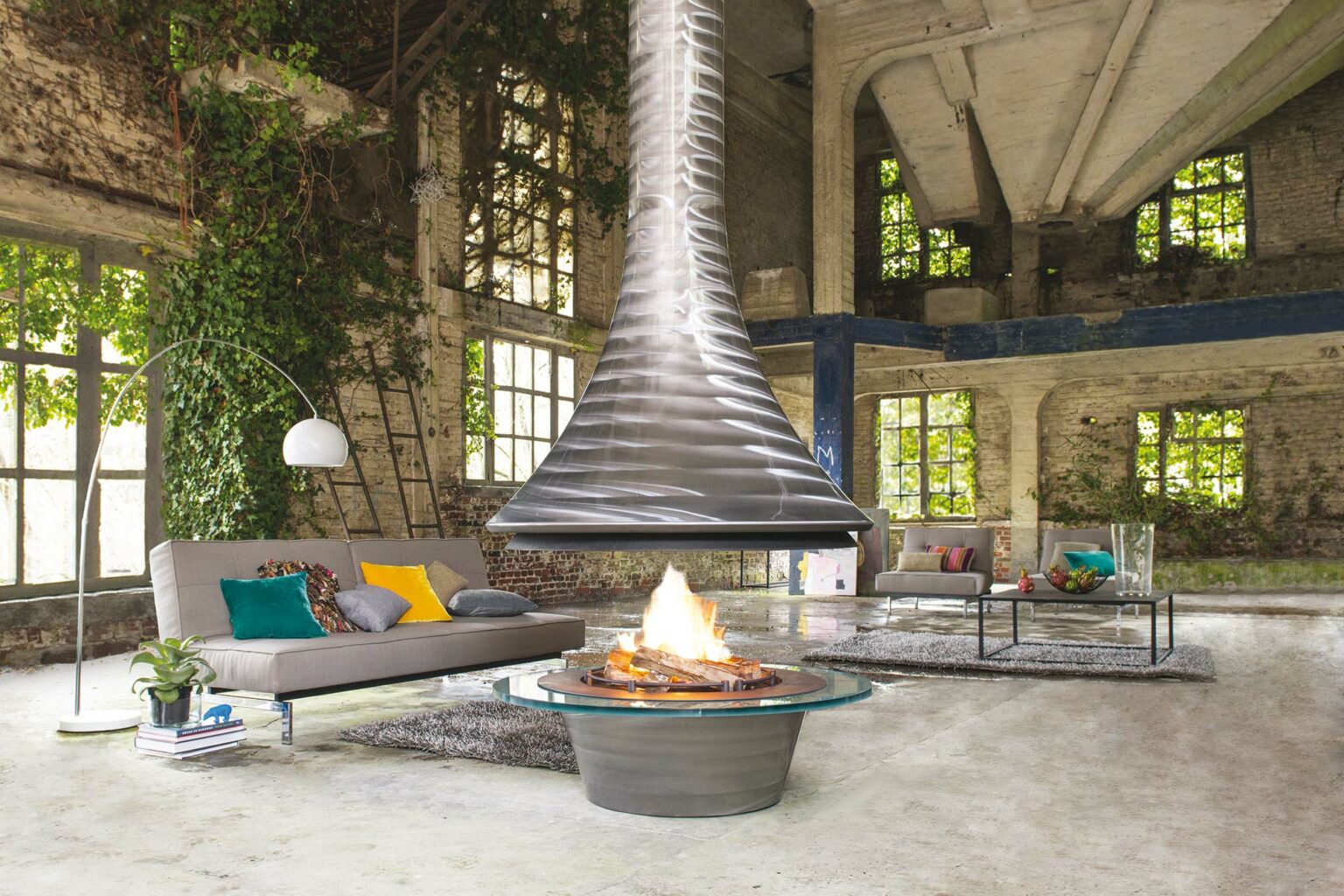

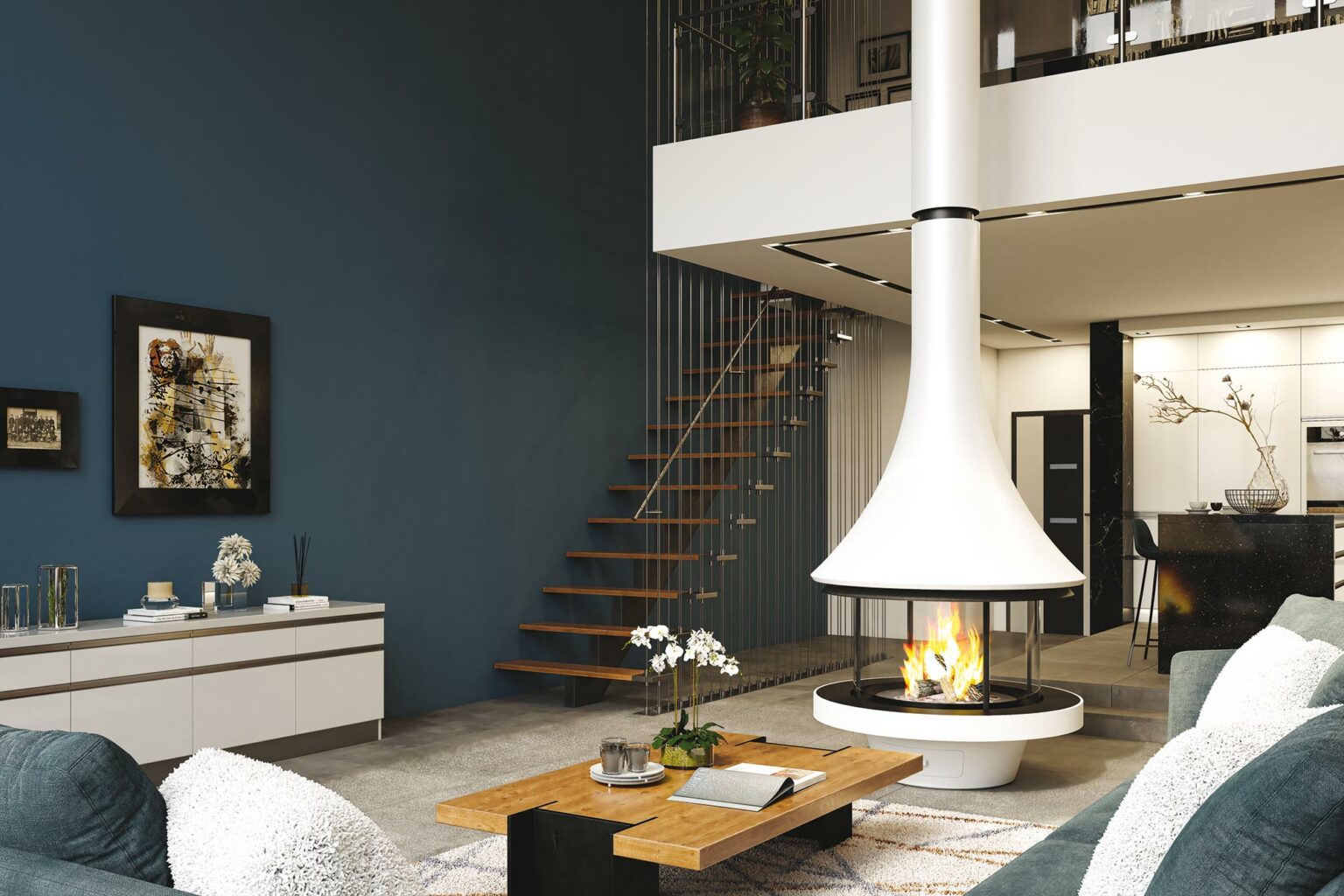

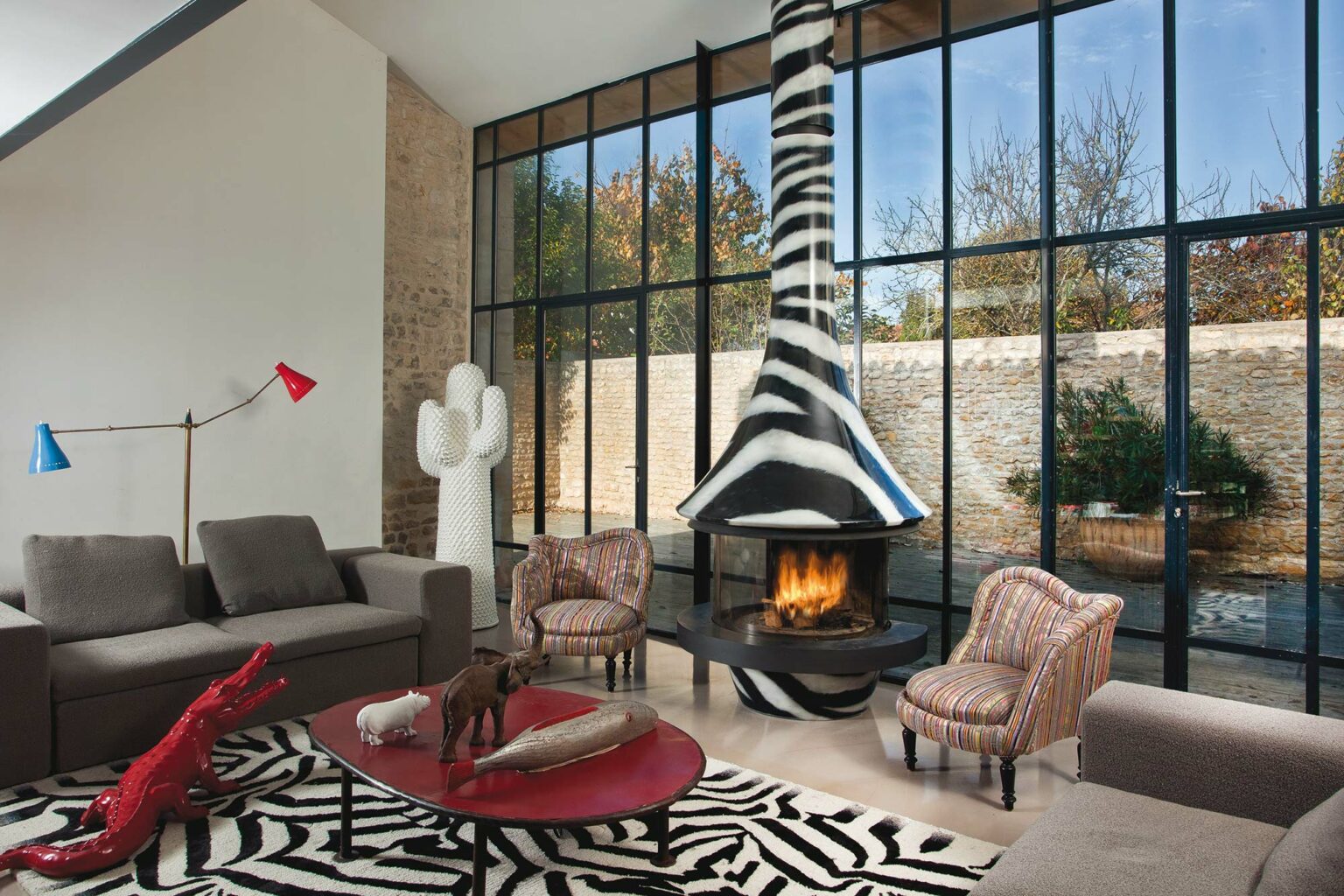

The JC Bordelet Eva is a dramatic suspended fireplace designed as a true centrepiece, with a sculptural hood and 180 RAL colour options. It burns wood as standard, with an optional gas log set, and comes in central or wall-mounted versions.

A firescreen is required and not included.

Specifications

  • Fuel Type: Wood (standard); natural gas or propane log set optional
  • Max Heat Output: 55,000 BTU (gas option)
  • Overall Dimensions: 46" diameter (central) or 46" W Ă— 34" D (wall-mounted); hood height 66 9/16"; minimum overall height 96"
  • Grate Diameter: 19 11/16"
  • Weight: 198 lb (base) + 121 lb (upper part)
  • Clearance to Combustibles: 48" all around
  • Floor Protection: 86 1/4" diameter Ă— 3/8" thick
  • EPA Status: EPA exempt

Clearances

Minimum clearances to combustibles from the installation manual (central suspended wood installation, UL 127 / ULC-S610 listed for Canada and USA). Always confirm with the manual and local code before installing.

  • Clearance to combustibles (all around, 360°): 48"
  • Top of smoke pipe mounting flange to ceiling: 8 11/16"
  • Minimum ceiling height: 96" (8 ft) from floor
  • Floor protection: 86 1/4" diameter round non-combustible hearth, min 3/8" thick
  • Bottom of firebox opening above hearth: 8" minimum
