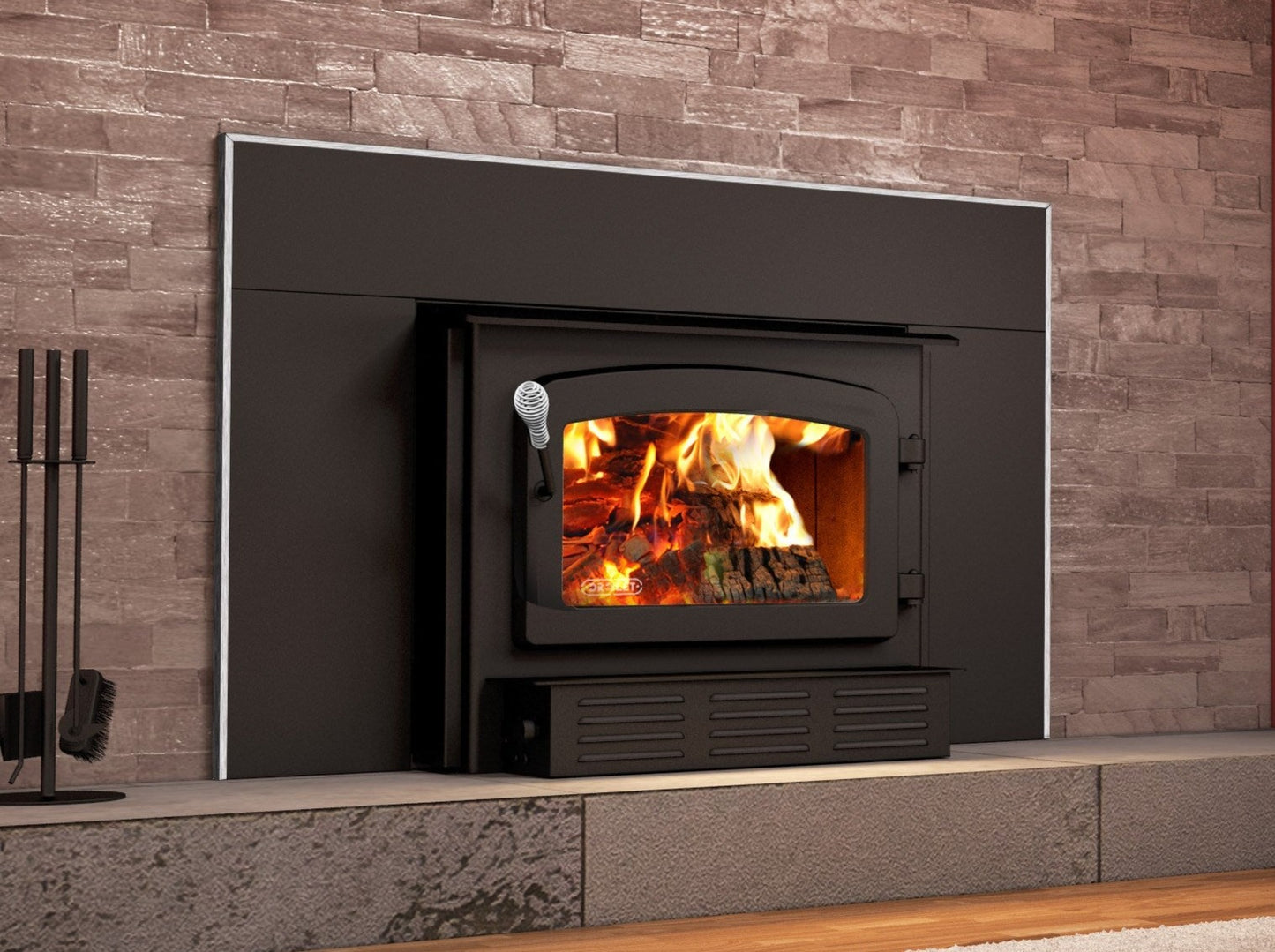

The Drolet Escape 1800-I is a versatile non-catalytic wood insert that updates a masonry fireplace into an efficient heater with low emissions.

Specifications

  • Fuel Type: Wood (dry cordwood, 16" recommended)
  • Max Heat Output: Up to 75,000 BTU/h
  • Efficiency: 69% average (HHV), 77% optimum
  • Max Burn Time: 8 h
  • Firebox Volume: 2.4 ftÂł
  • Emissions: 1.54 g/h (non-catalytic)

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation in a masonry fireplace). Always confirm with the manual and local code before installing.

  • Side wall (to unit): 16"
  • Side trim / facing: 9"
  • Top trim / facing: 27"
  • Mantel (12" deep): 27" above top of unit
  • Minimum ceiling height: 84" from base of unit
  • Hearth extension (front): 18" in front of door opening
  • Hearth extension (sides): 8"
