Escape 1500-I

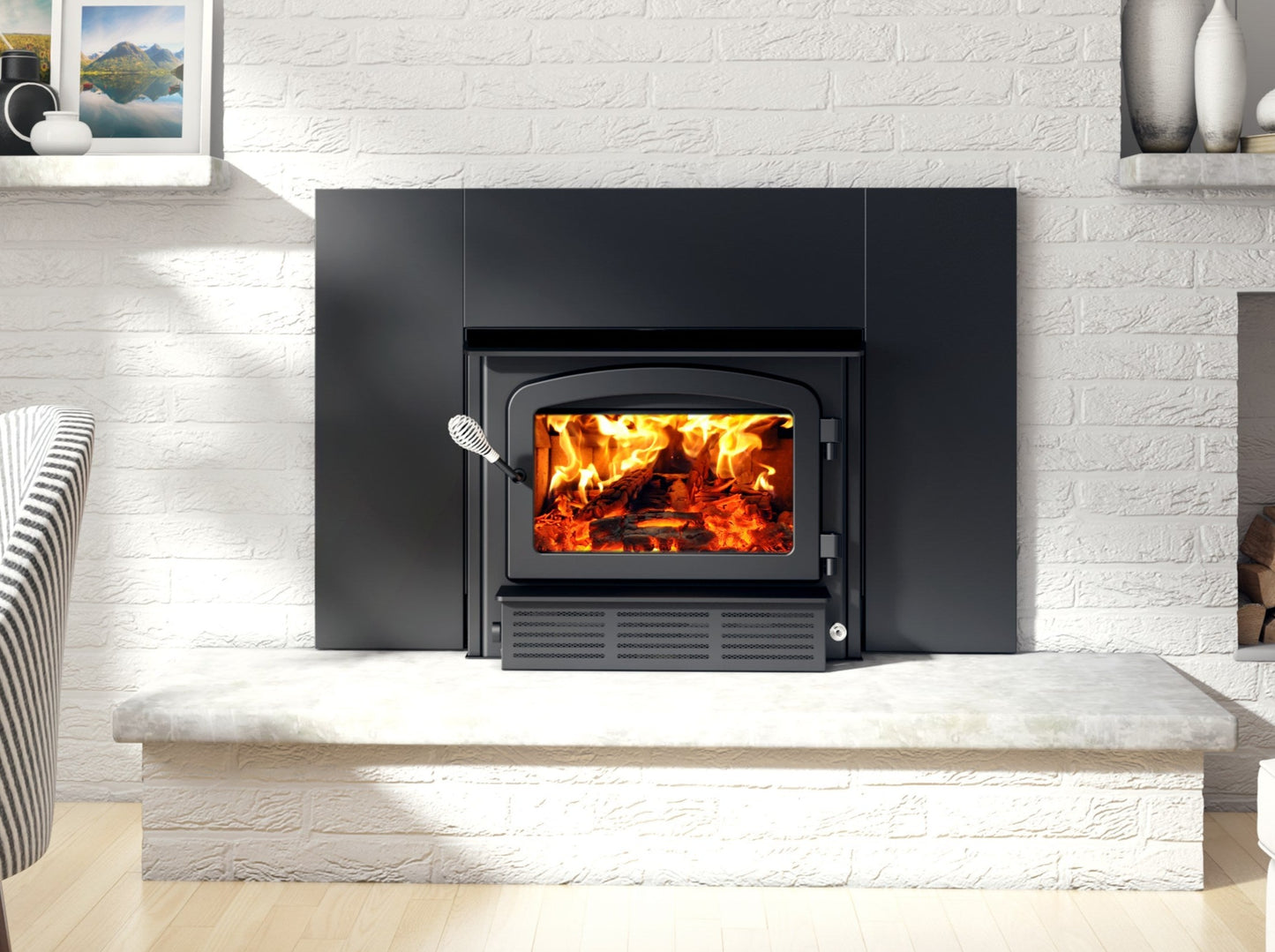

The Drolet Escape 1500-I is a non-catalytic wood insert that turns an existing masonry fireplace into an efficient heater with low emissions.

Specifications

• Fuel Type: Wood (dry cordwood, 16" recommended)
• Max Heat Output: Up to 65,000 BTU/h
• Efficiency: 70% average (HHV), 78% optimum
• Max Burn Time: 6 h
• Firebox Volume: 1.9 ft³
• Emissions: 1.26 g/h (non-catalytic)

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation in a masonry fireplace). Always confirm with the manual and local code before installing.

• Side wall (to unit): 16"
• Side trim / facing: 9"
• Top trim / facing: 27"
• Mantel (12" deep): 27" above top of unit
• Minimum ceiling height: 84" from base of unit
• Hearth extension (front): 18" in front of door opening
• Hearth extension (sides): 8"

Documents

• Owner's Manual
• Dimension Sheet
