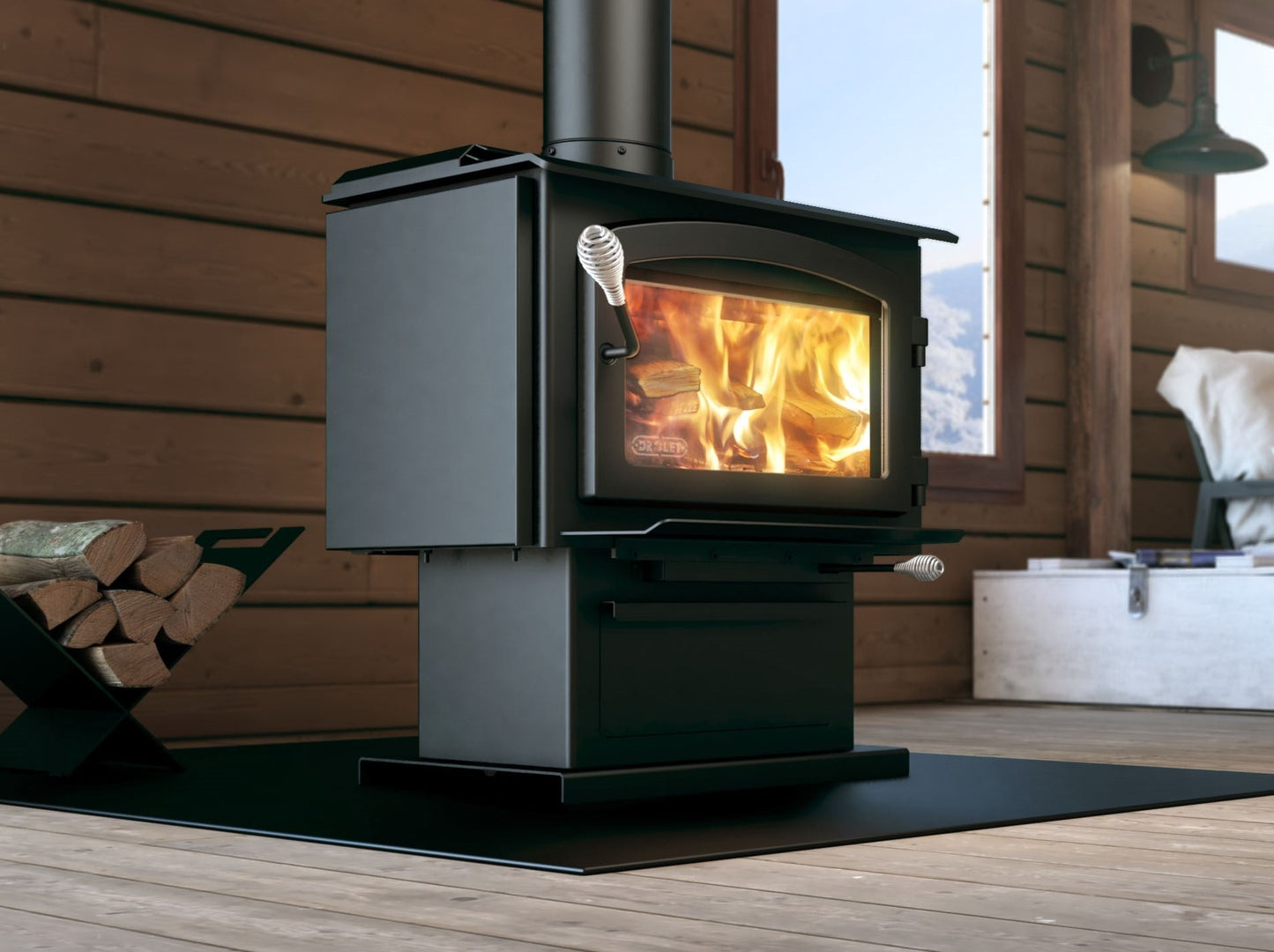

Escape 1500

The Drolet Escape 1500 is a non-catalytic wood stove that pairs good performance with low emissions. Side panels reduce clearances to combustibles, and a top heat exchanger redirects heat to the front of the unit.

Specifications

• Fuel Type: Wood (dry cordwood, 16" recommended)
• Max Heat Output: Up to 65,000 BTU/h
• Efficiency: 70% average (HHV), 78% optimum
• Max Burn Time: 6 h
• Firebox Volume: 1.9 ft³
• Emissions: 1.26 g/h (non-catalytic)

Clearances

Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls unless noted). Always confirm with the manual and local code before installing.

• Back wall: 6"
• Side wall: 10"
• Corner: 6"
• Minimum ceiling height: 84" from floor
• Floor protection (front): 18" in front of door opening
• Floor protection (sides and back): 8"

Documents

• Owner's Manual
• Dimension Sheet
