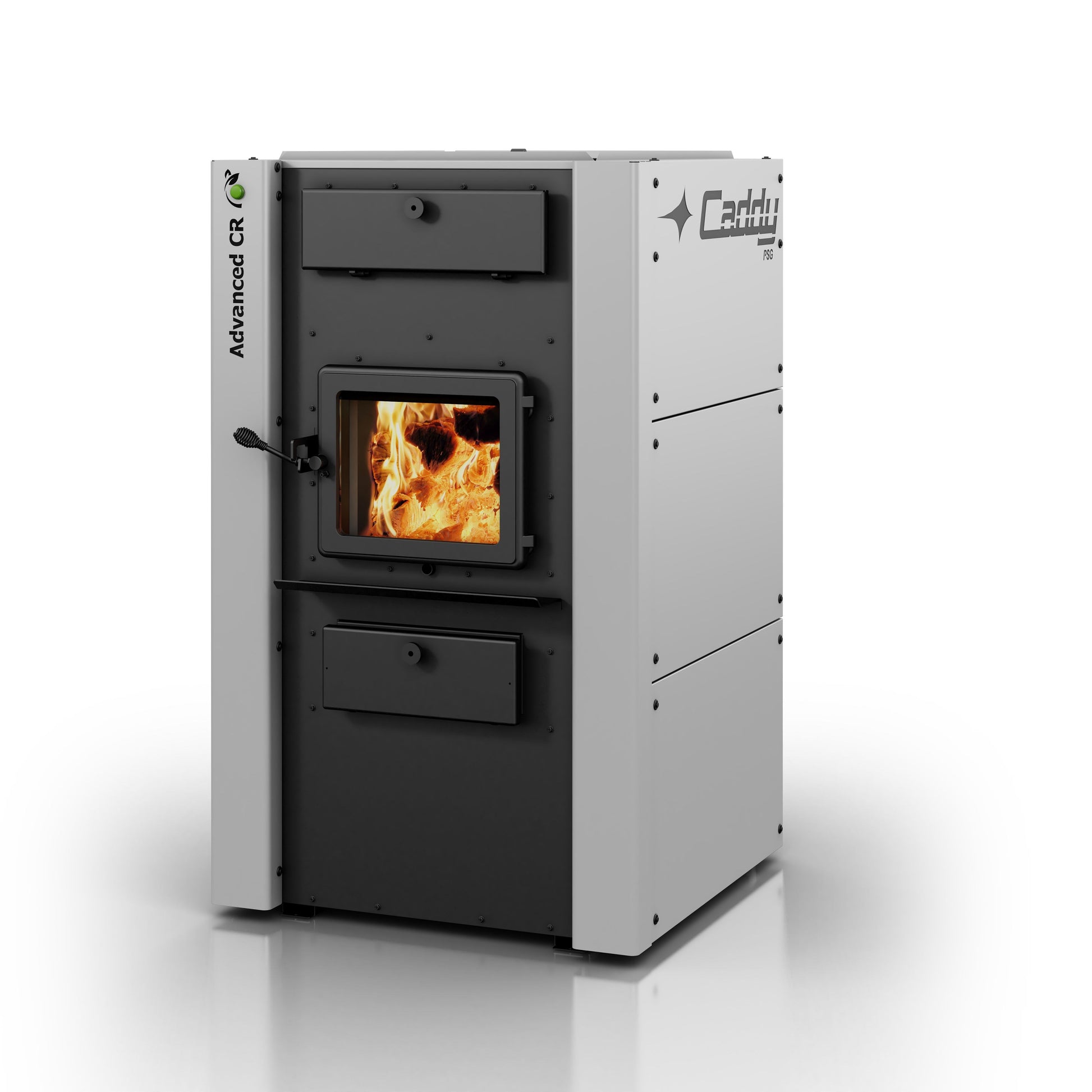

Caddy Advanced CR II

The Caddy Advanced CR II is an EPA 2020 certified wood furnace built for multi-energy systems: a link card controls switching to electric, gas or heat pump back-up. Like the Advanced II it uses self-regulated combustion for steady heat, and adds a self-diagnostic feature that pinpoints component faults quickly. Proudly made in Canada.

As an add-on furnace, only a series configuration is approved in Canada.

Specifications

• Fuel Type: Wood (dry cordwood, 16" recommended); wood, wood + electric, wood + gas, wood + electric + heat pump, wood + gas + heat pump or add-on configurations
• Max Heat Output: Up to 47,052 BTU/h overall (310,000 BTU max input capacity)
• Efficiency: 76.6% average overall (HHV), 83.2% optimum
• Max Burn Time: 10 h
• Firebox Volume: 3.6 ft³
• Max Log Length: 21"
• Overall Dimensions: 32 3/4" W × 54 3/8" H × 42 1/2" D
• Weight: 699 lb (shipping)
• Flue Diameter: 6"

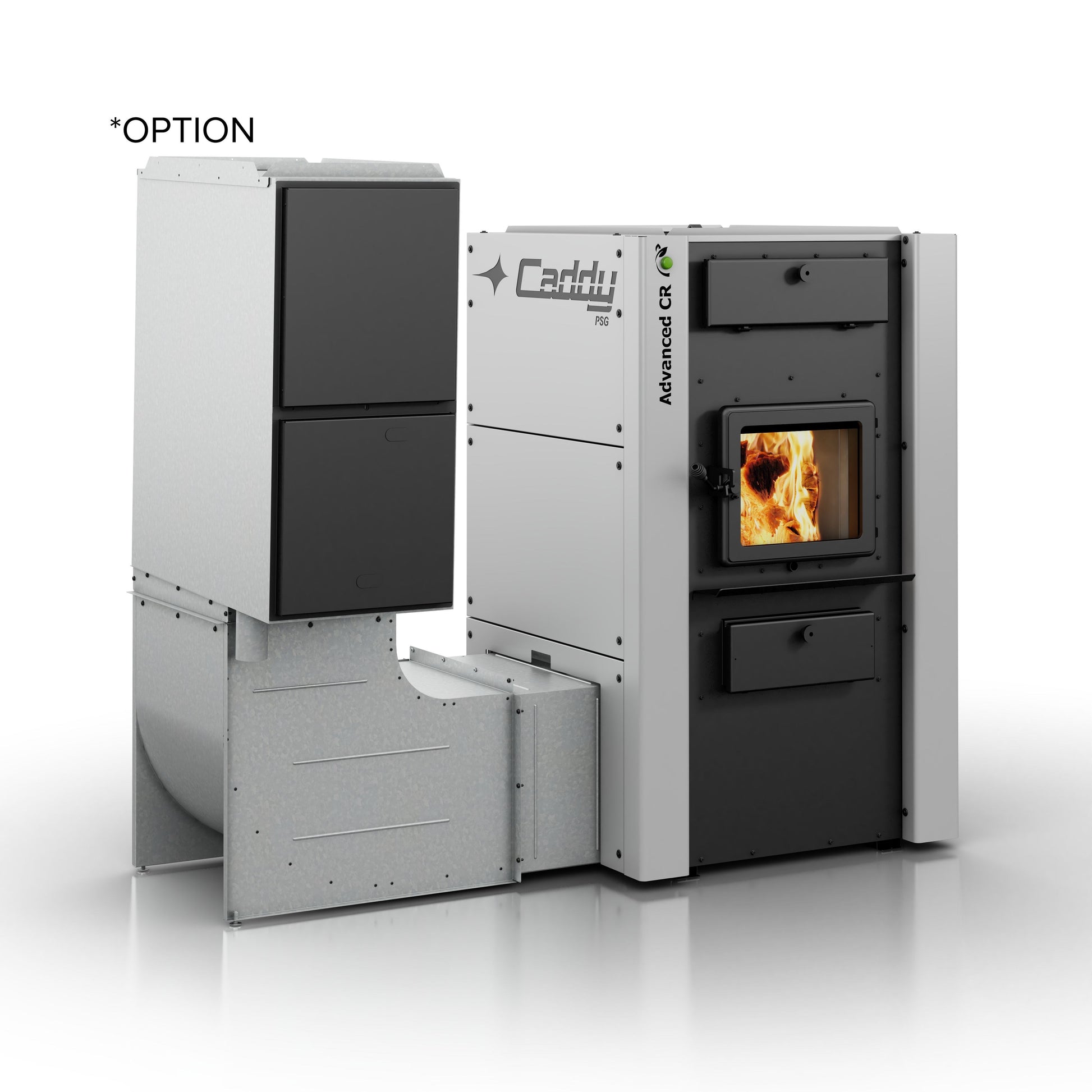

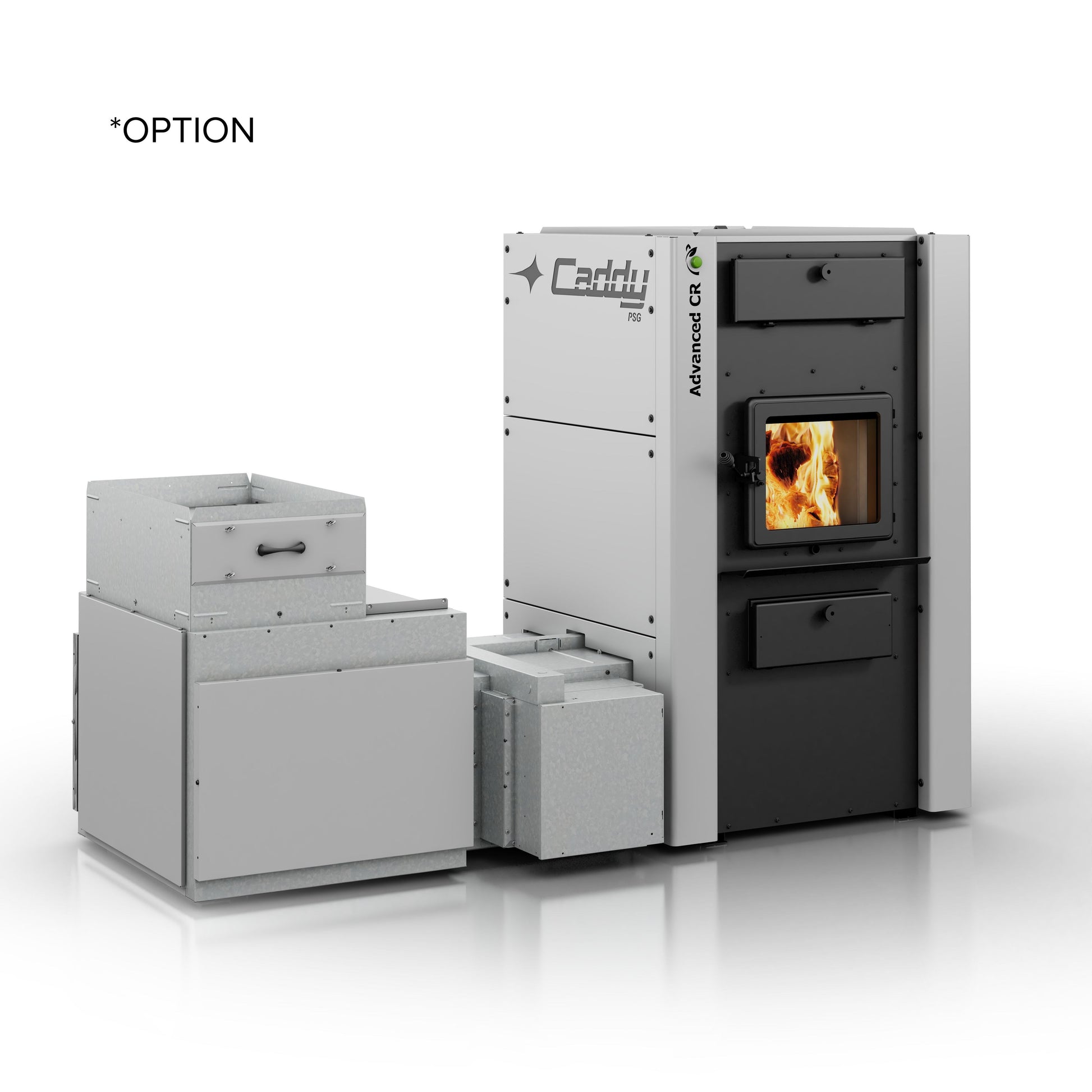

• Blower: Not included; blower box with regular or ECM motor required (can mount right, left or behind the furnace)
• Electric Element: 20 kW optional
• Power Consumption: 330 W | 220 W average
• Emissions: 0.095 lb/mmBTU (0.041 g/MJ)
• EPA Status: EPA 2020 certified
• Included: Tool set and wall support, ash lip, thermostat, moisture reader, barometric damper, fresh air intake adapter

Documents

• Installation & Owner's Manual
• Installation & Owner's Manual (Series Add-On, Canada)
• Dimension Sheet
