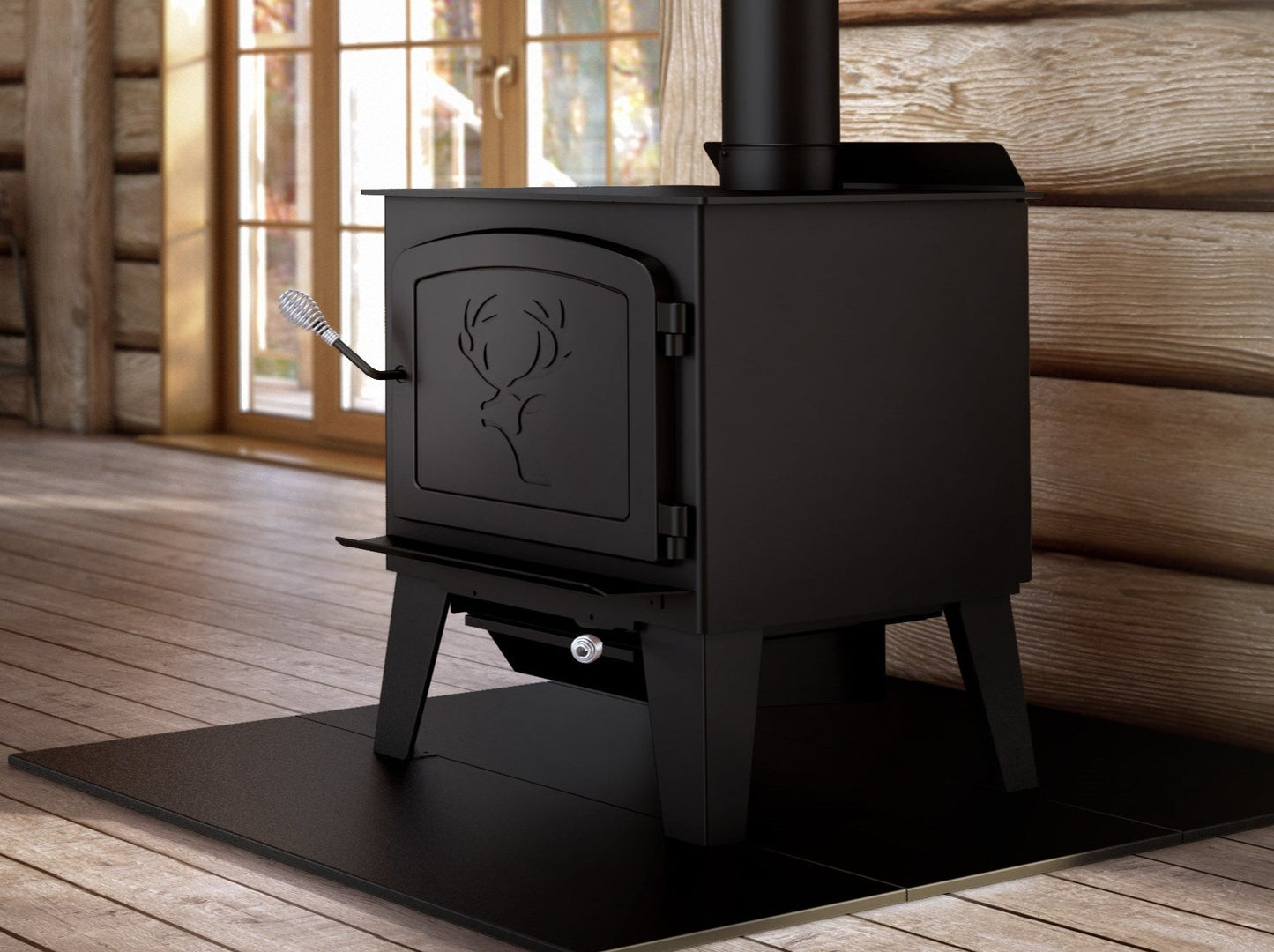

Black Stag II

The Drolet Black Stag II is a large, non-catalytic wood stove that combines strong heat output with very low emissions. Its firebox is designed for loading logs front to back (over depth). Its cast iron door is adorned with a deer head.

Specifications

• Fuel Type: Wood (dry cordwood, 16" recommended)
• Max Heat Output: Up to 90,000 BTU/h
• Efficiency: 71.1% average (HHV), 78% optimum
• Max Burn Time: 10 h
• Firebox Volume: 3.3 ft³
• Emissions: 0.95 g/h (non-catalytic)

Clearances

Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls unless noted). Always confirm with the manual and local code before installing.

• Back wall: 7 1/2"
• Side wall: 20"
• Corner: 10"
• Minimum ceiling height: 84" from floor
• Floor protection (front): 18" in front of door opening
• Floor protection (sides and back): 8"

Documents

• Owner's Manual
• Dimension Sheet
