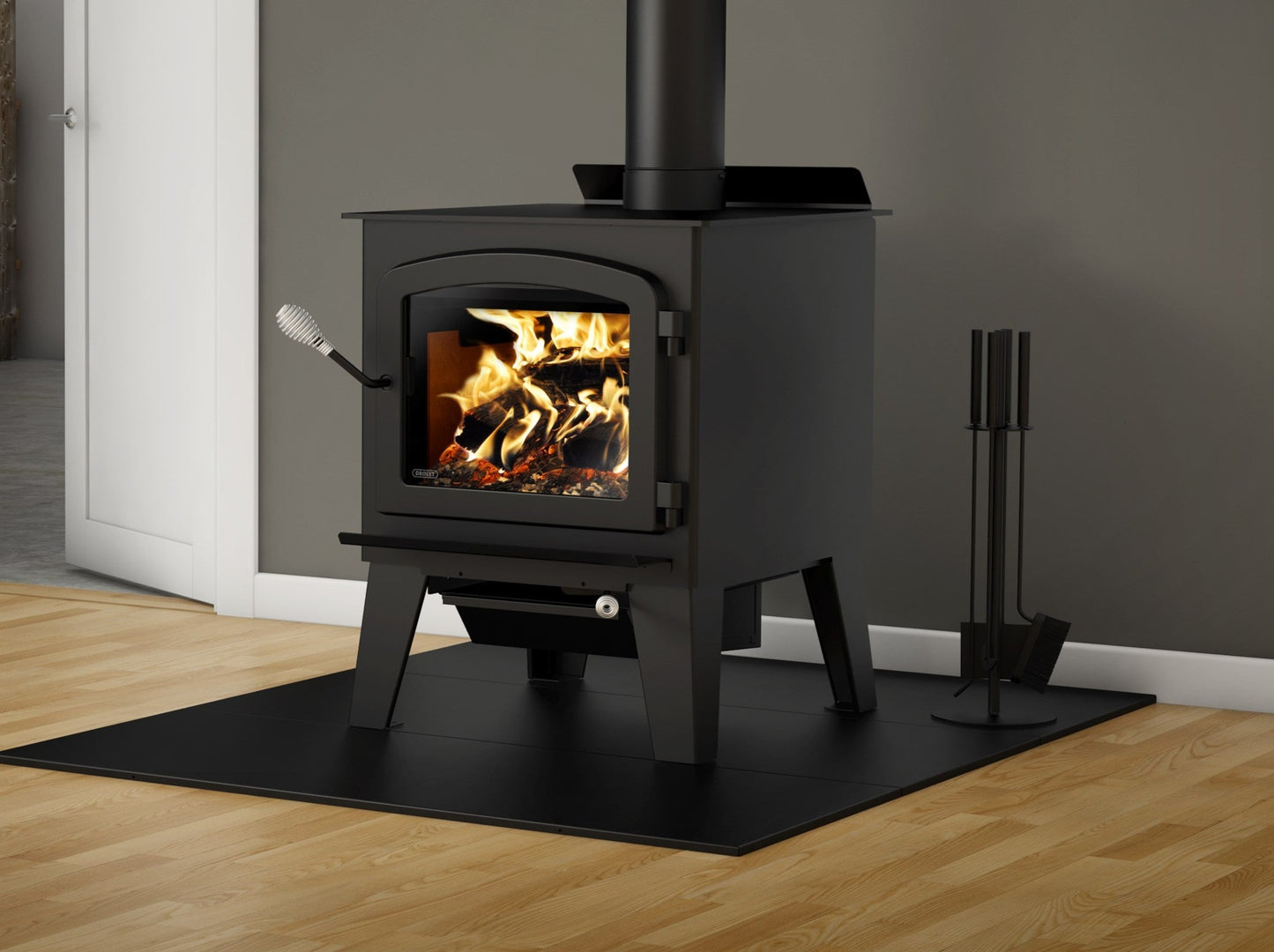

Austral III

The Drolet Austral III is a large, non-catalytic wood stove that combines strong heat output with very low emissions. Its firebox is designed for loading logs front to back (over depth).

Specifications

• Fuel Type: Wood (dry cordwood, 16" recommended)
• Max Heat Output: Up to 90,000 BTU/h
• Efficiency: 71.1% average (HHV), 78% optimum
• Max Burn Time: 10 h
• Firebox Volume: 3.3 ft³
• Emissions: 0.95 g/h (non-catalytic)

Clearances

Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls unless noted). Always confirm with the manual and local code before installing.

• Back wall: 7 1/2"
• Side wall: 20"
• Corner: 10"
• Minimum ceiling height: 84" from floor
• Floor protection (front): 18" in front of door opening
• Floor protection (sides and back): 8"

Documents

• Owner's Manual
• Dimension Sheet
