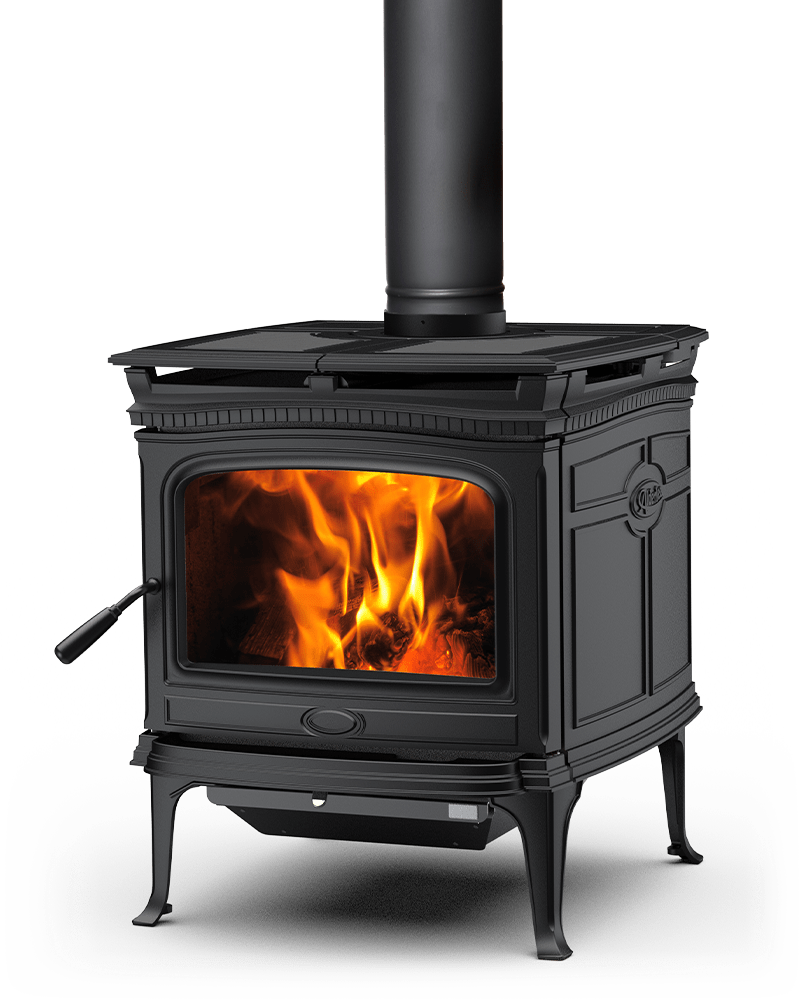

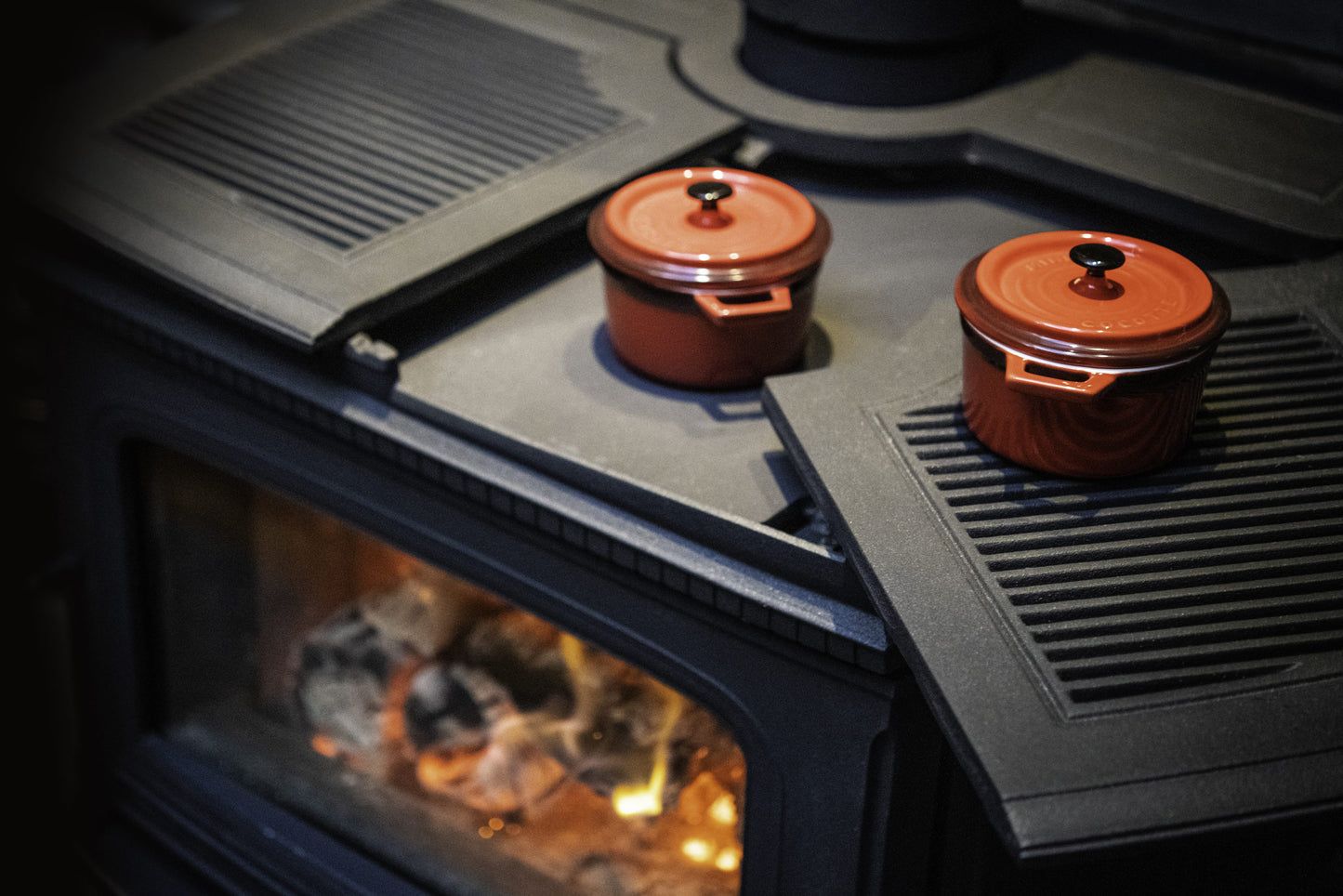

The Pacific Energy Alderlea T5 LE combines the best of cast iron and steel stoves, giving both radiant and convective heat. Historic styling, a concealed cooktop and a huge glass window make it an easy-to-use, long-burning heater that suits any room.
Specifications
Fuel Type: Wood (cordwood)
Max Heat Output: Up to 72,000 BTU (cordwood); 38,200 BTU on EPA test fuel
Efficiency: 71.3% HHV
Firebox Volume: 2.1 cu ft
Max Log Length: 18" (16" recommended)
Weight: 523 lbs
Glass Size: 163 sq in viewing area
Emissions: 1.8 g/hr
Clearances
Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls unless noted). Always confirm with the manual and local code before installing.
Back wall: 5"
Side wall: 14"
Corner: 4"
Minimum ceiling height: 84" (7 ft) from floor
Floor protection (Canada): 18" in front of door, 8" to sides and back
