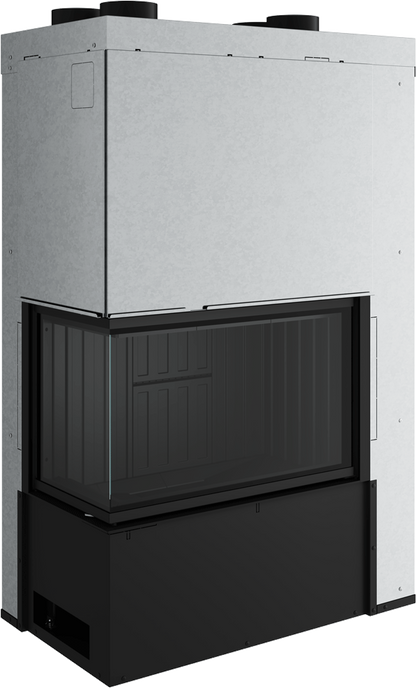

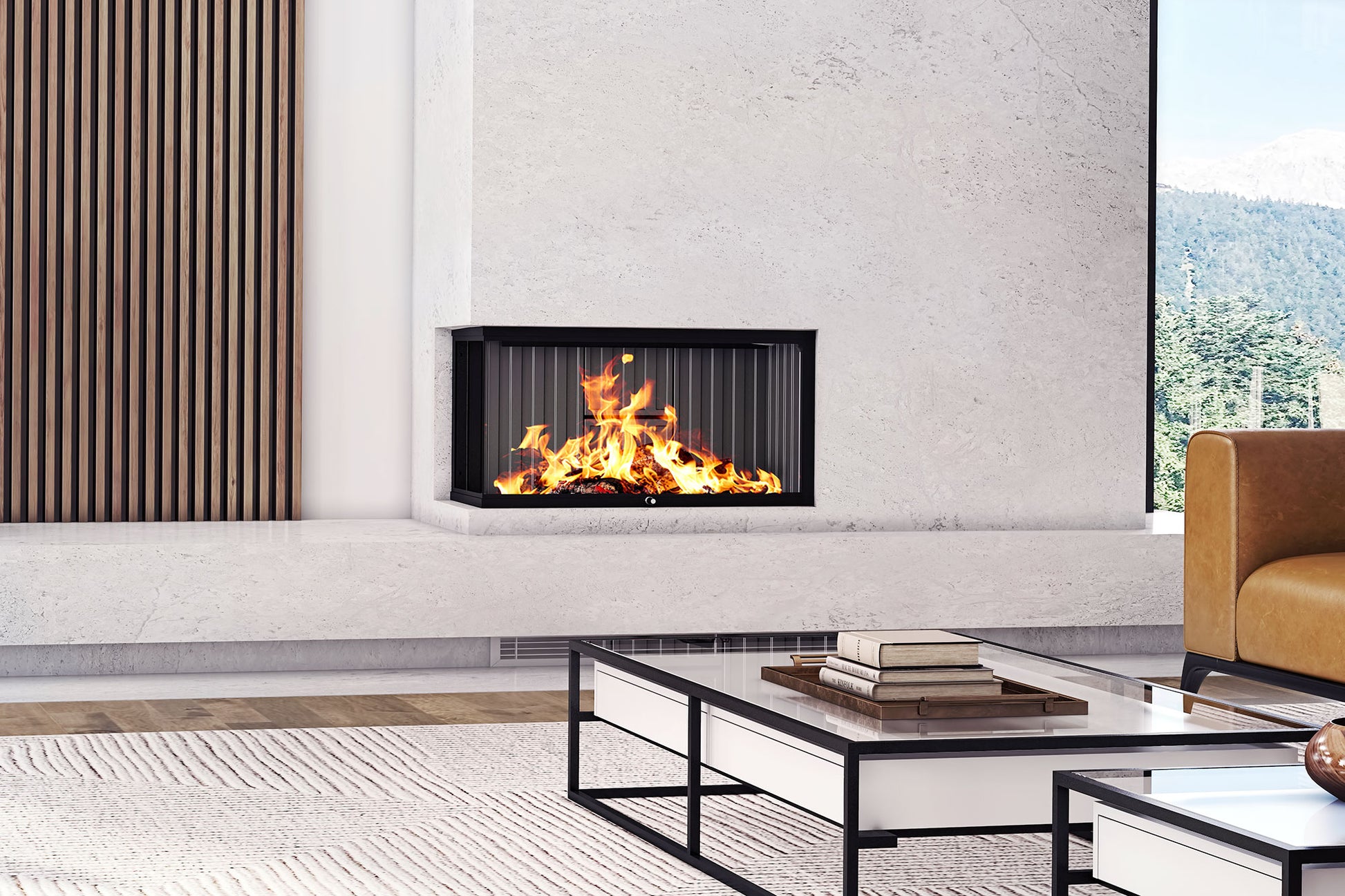

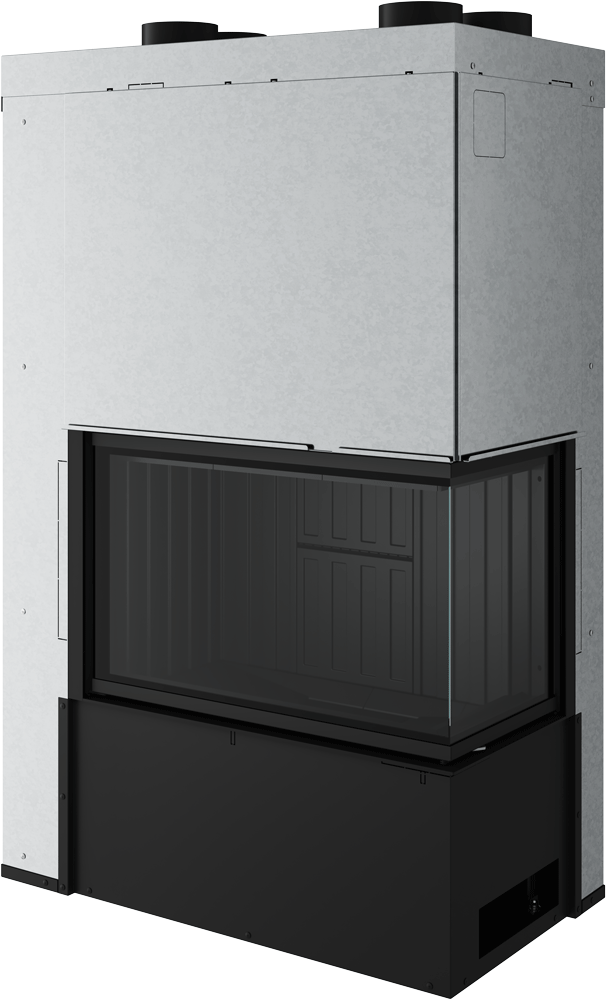

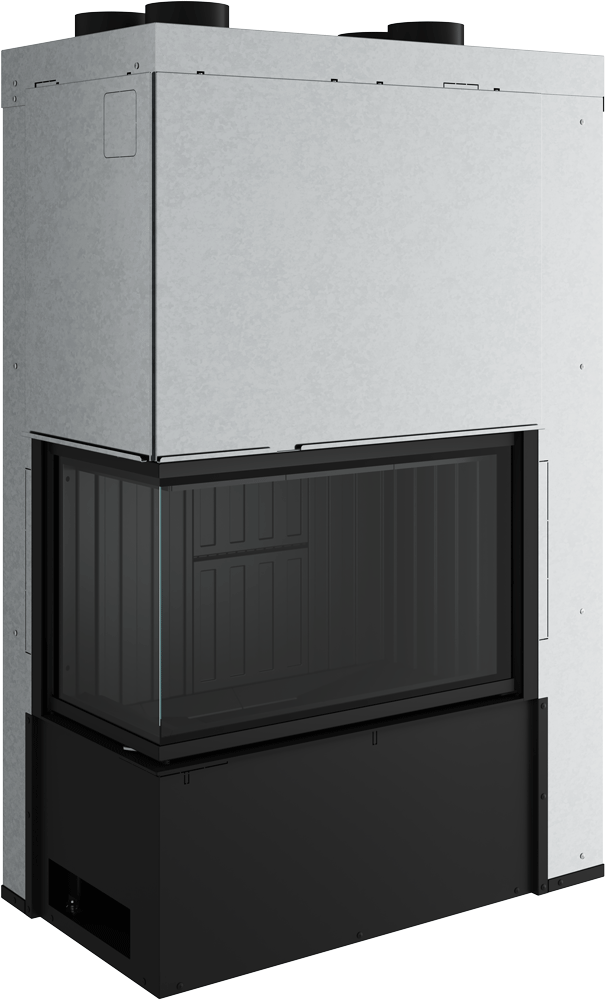

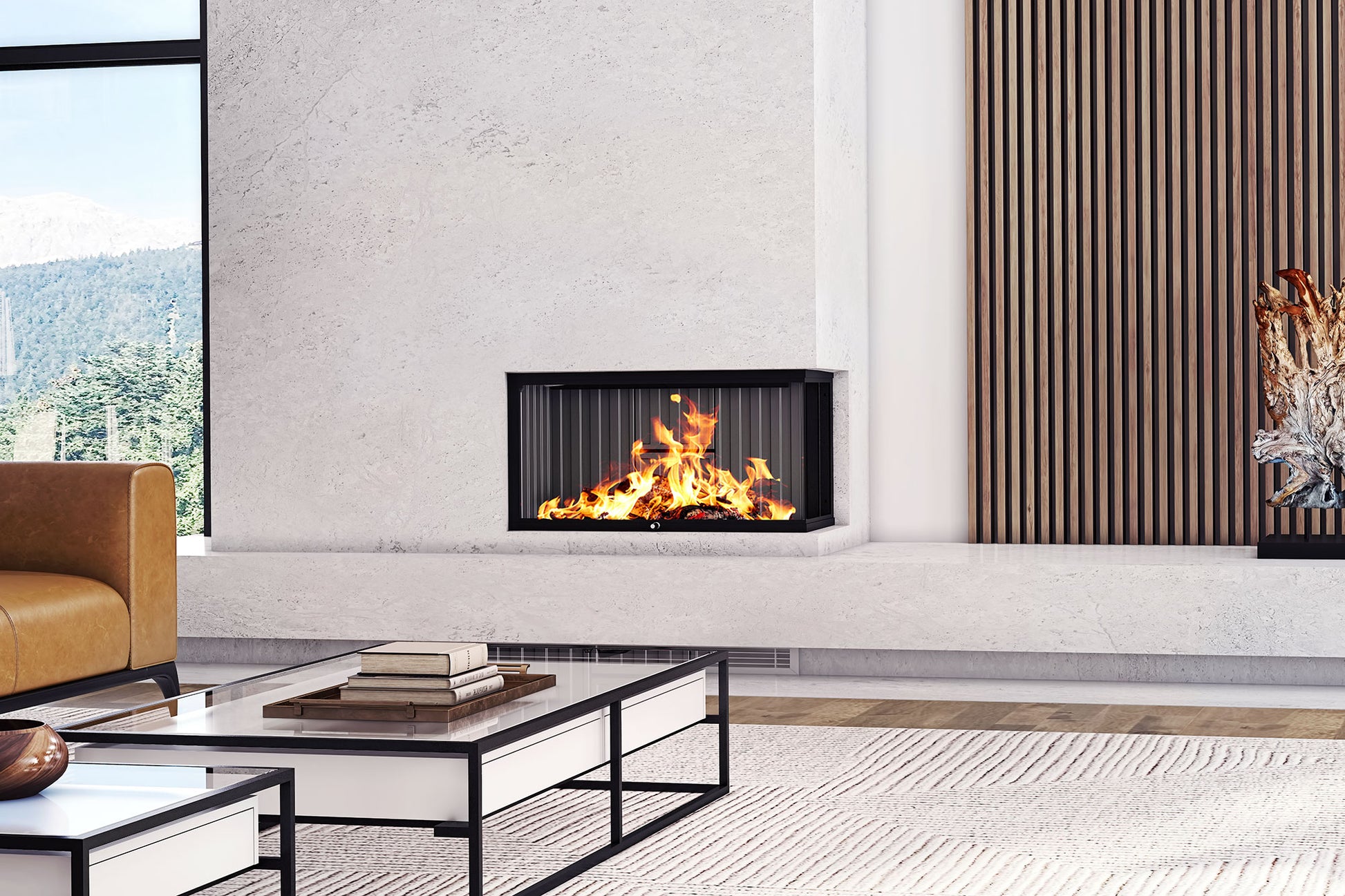

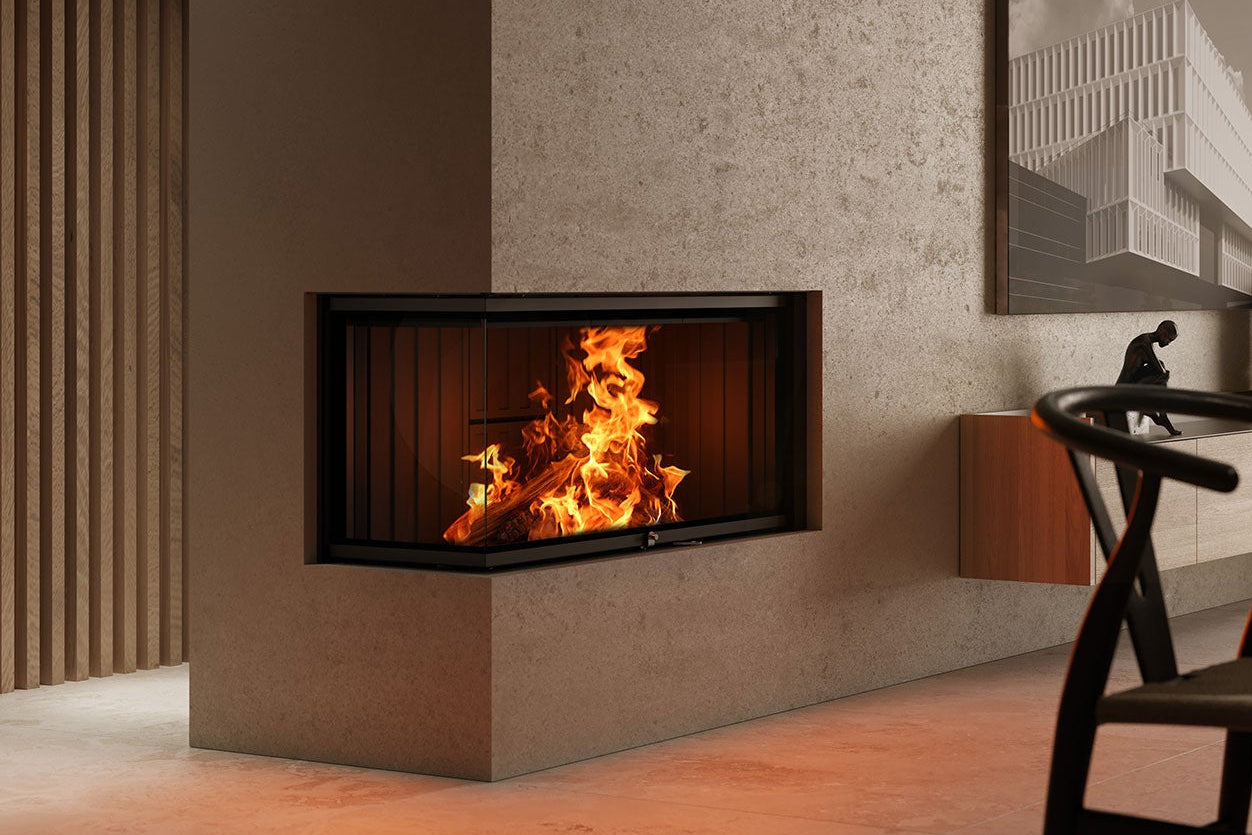

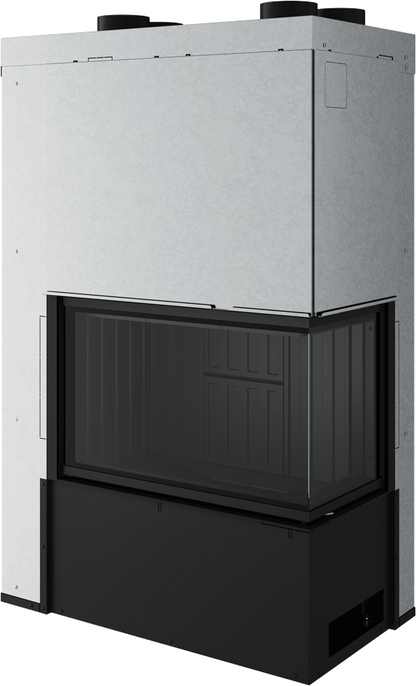

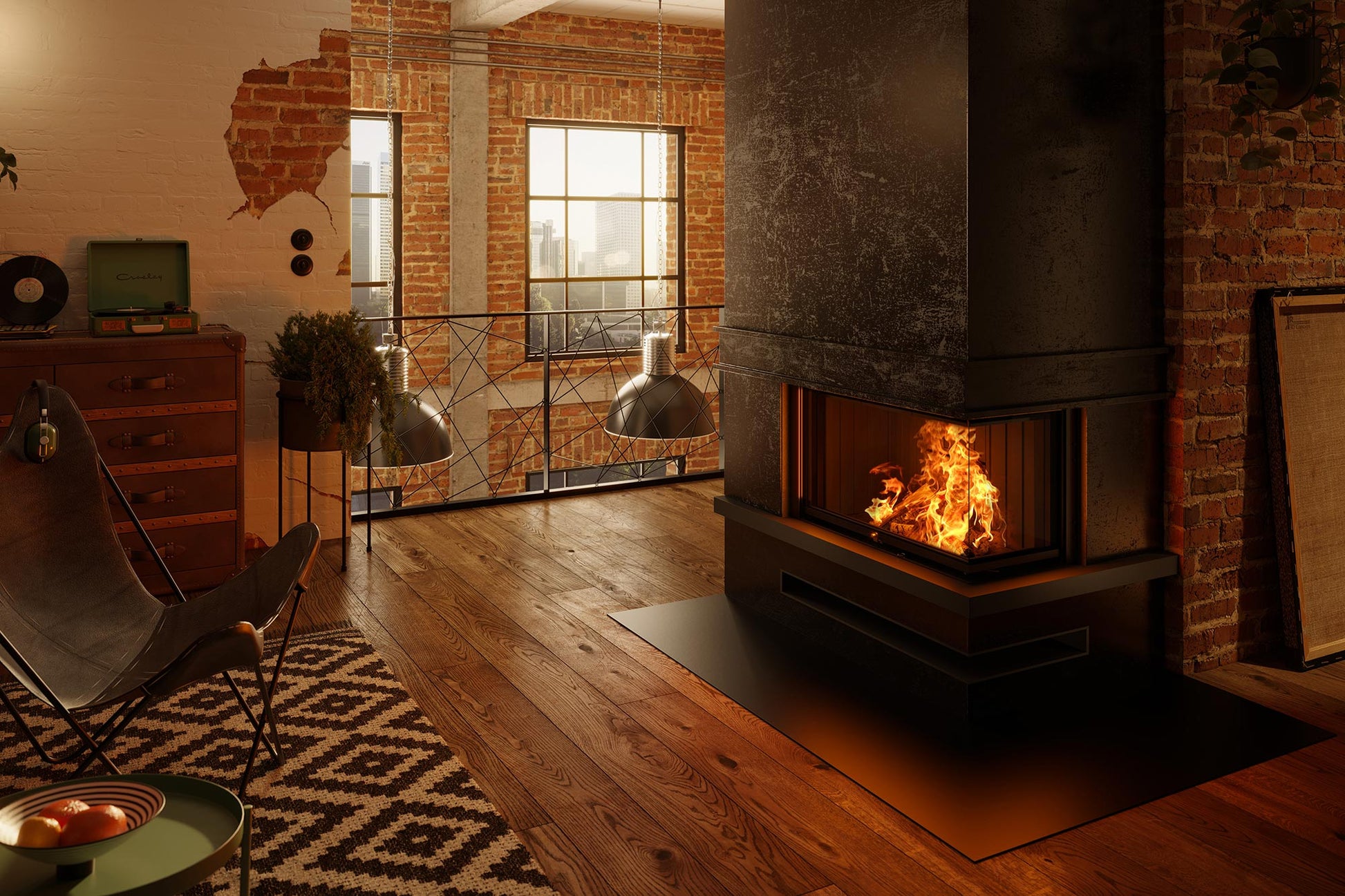

The LUXUS® 32 Corner is a premium 2-sided corner wood fireplace, available in a left or right configuration, with a smooth guillotine glass door that lifts and disappears behind your finish. Up to 46,000 BTU and chamotte refractory panels that hold and radiate heat give it real warmth to match the view.
Specifications
Fuel Type: Wood (cordwood)
Max Heat Output: Up to 46,000 BTU
Firebox Volume: 4.14 cu. ft.
Ideal Log Length: 18"
Firebox Lining: Chamotte
Overall Dimensions: 45 5/8" W × 63 3/16" H × 28 5/16" D
Viewing Area (Full): 35 1/2" W × 20 11/16" H × 20 1/8" D
Weight: 606 lbs
Door Type: Guillotine glass door, corner (left or right)
Mantel Clearance: Combustible 6" shelf at 19"; no clearance needed for Ambiance® non-combustible mantels
EPA Status: EPA exempt
Clearances
Minimum clearances to combustibles from the LUXUS installation manual and quick installation guide (Canadian installation). Always confirm with the manual and local code before installing.
Unit to combustibles: 2" at the rear and closed side (mandatory 2" spacer)
Minimum ceiling height: 84" from bottom of fireplace enclosure to ceiling
Convection air grilles: 6 1/2" to ceiling and combustibles
Hearth extension: 20" in front × 12" at sides, measured from door glass
Combustibles (furniture, firewood): 48" in front of the unit
