Zelia

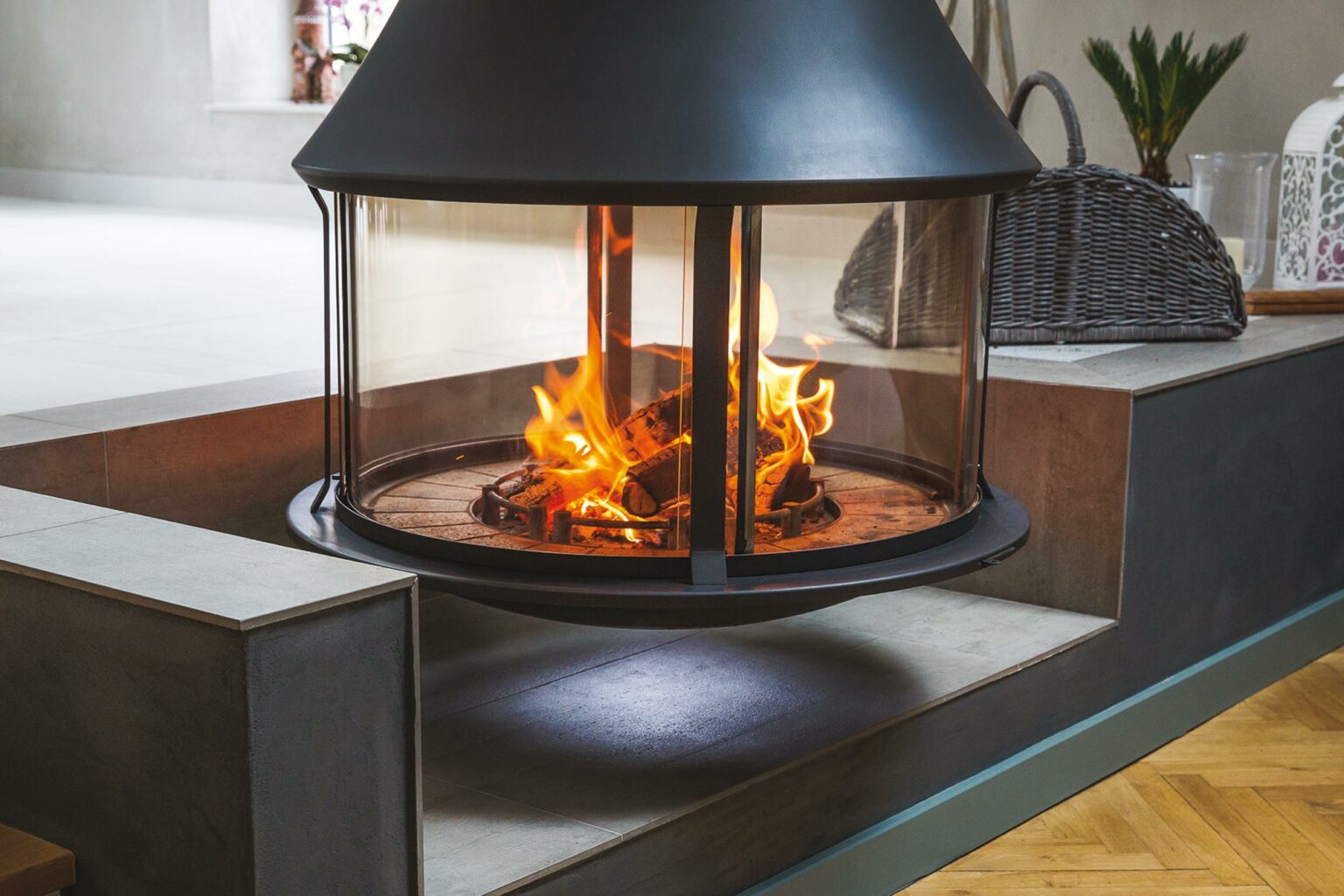

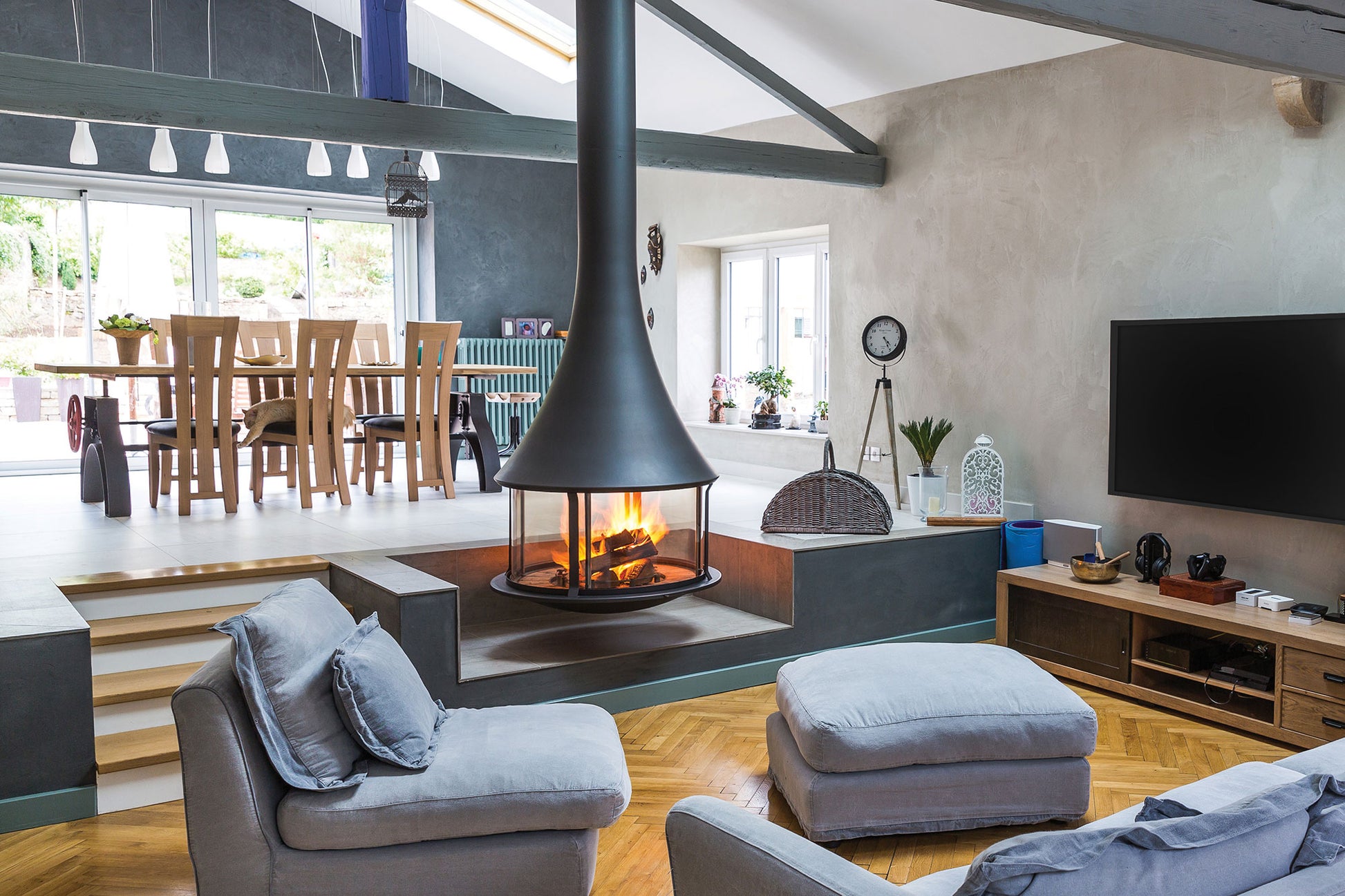

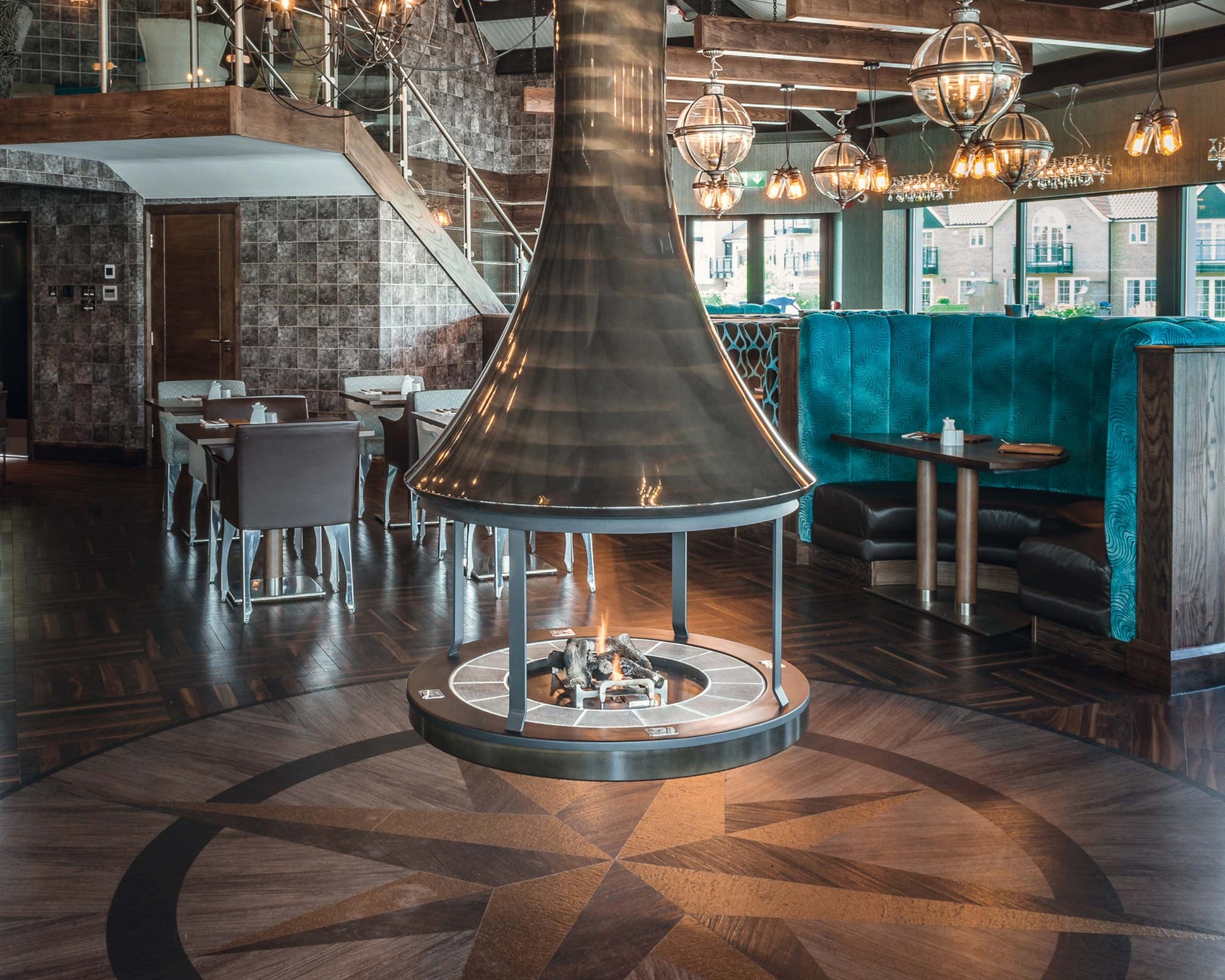

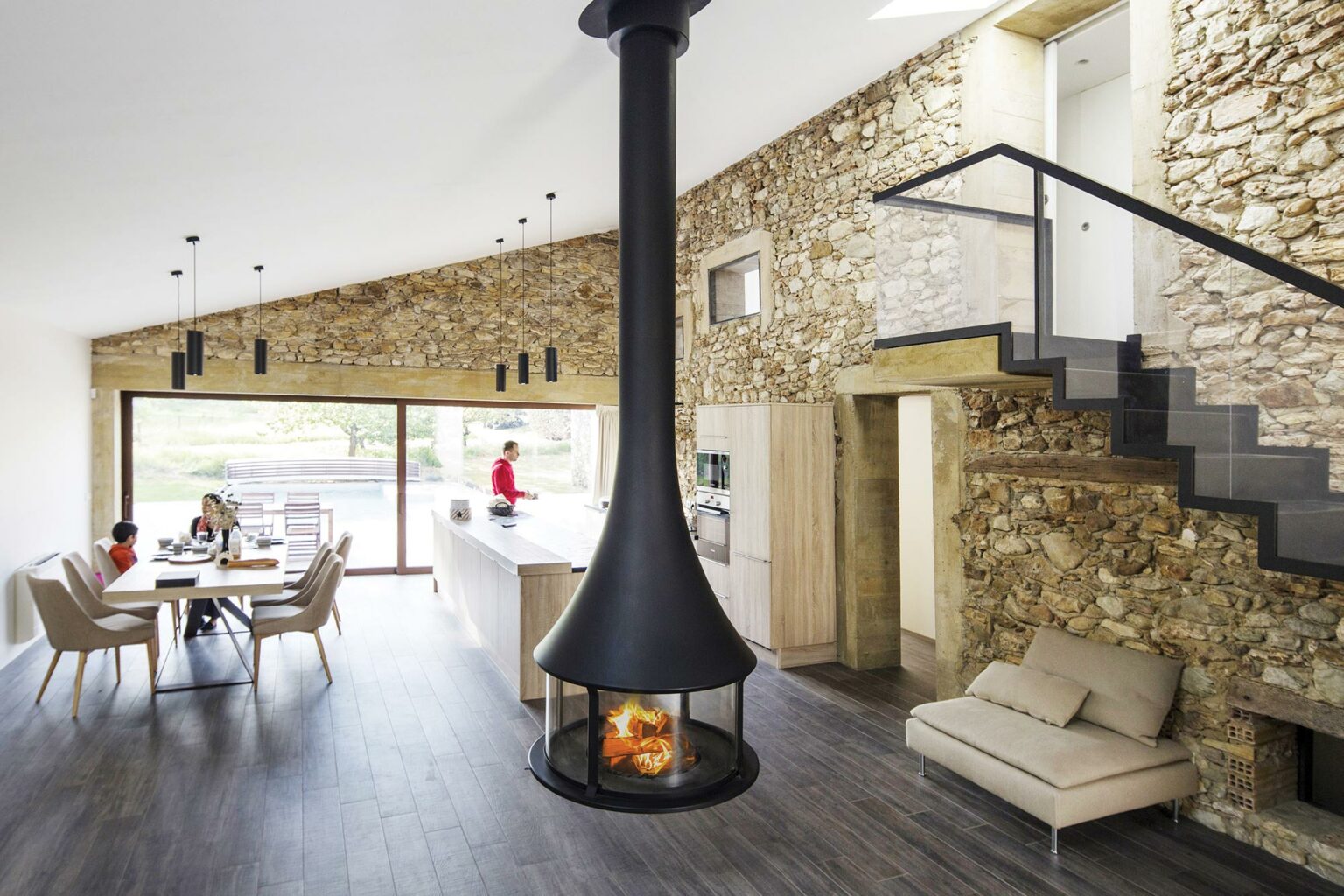

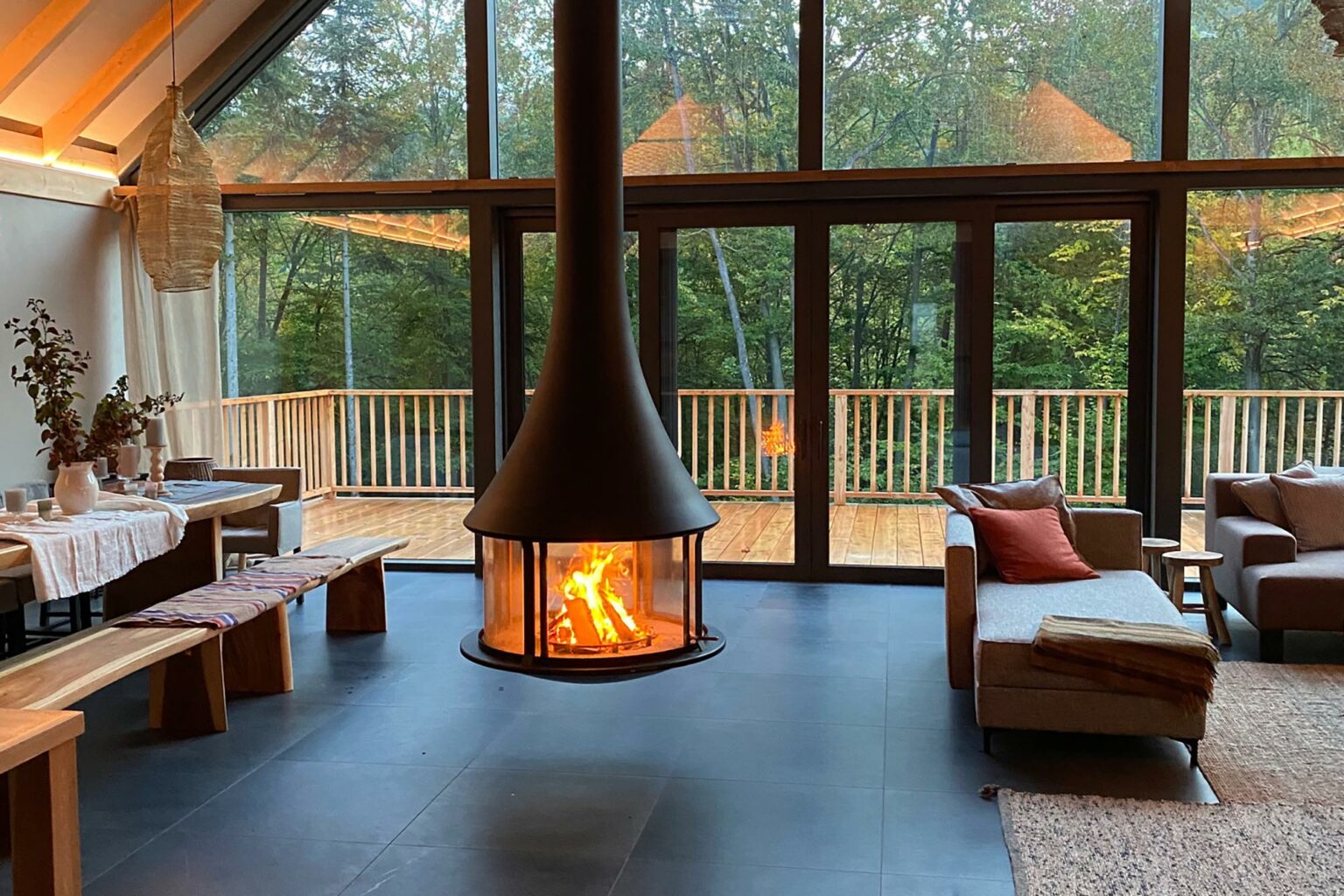

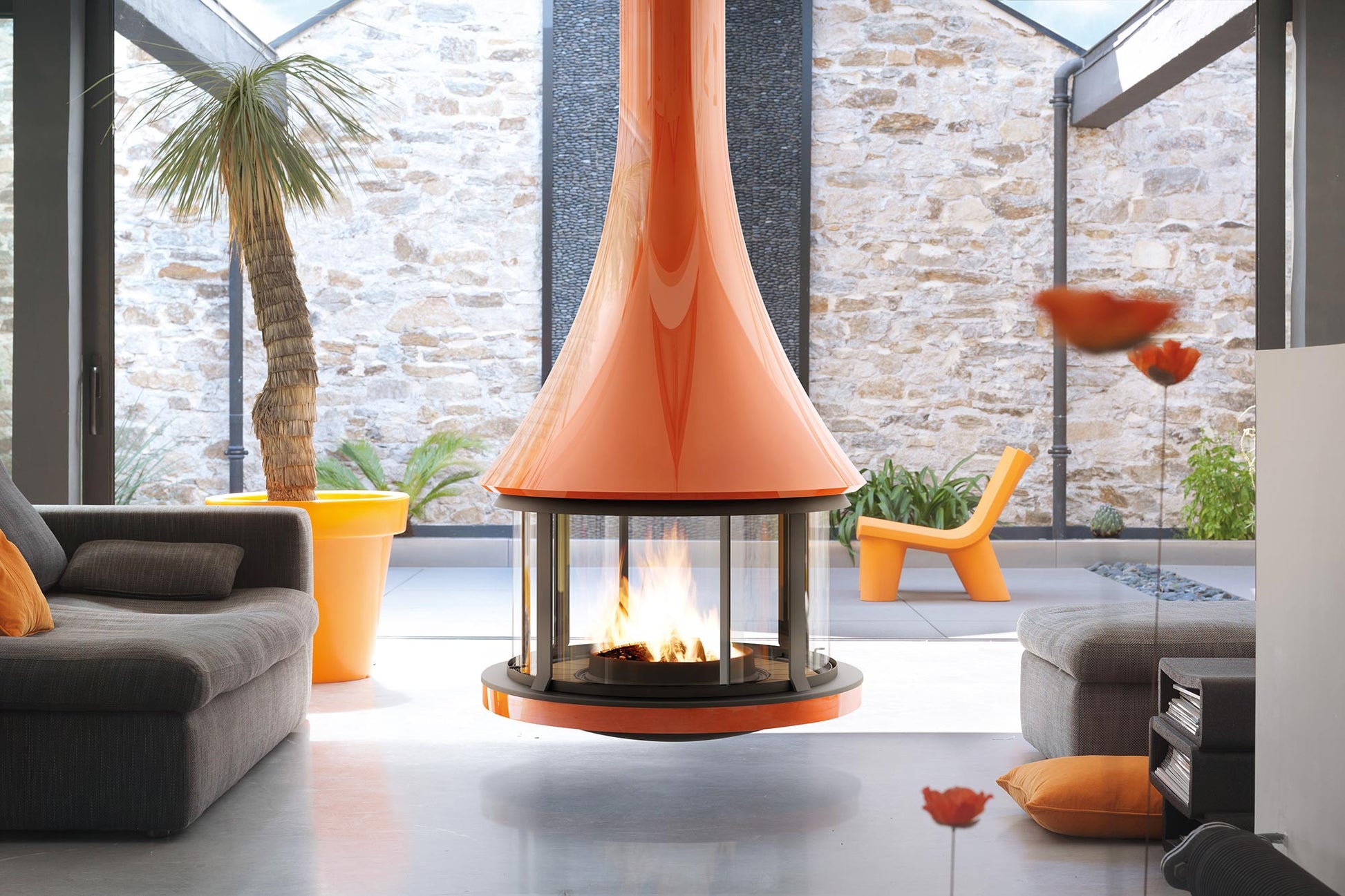

The JC Bordelet Zelia is a hand-crafted 360° suspended fireplace with a sculpted dome and panoramic fire view. Available as wood (standard) or an optional gas log set (NG/LP), it can be ordered central or wall-mounted for statement installs.

• Fuel Type: Wood (standard)
• Gas Option: Natural Gas or Propane (optional)
• Max BTU (Gas): 55,000 BTU
• EPA Status: EPA Exempt

Dimensions (Central Version)

• Unit / Grate Diameter: 38 5⁄8" / 19 11⁄16"
• Height / Min. Room Height: 73 7⁄16" / 96"
• Fireplace Opening: 16 1⁄2" H
• Weight: 308 lbs

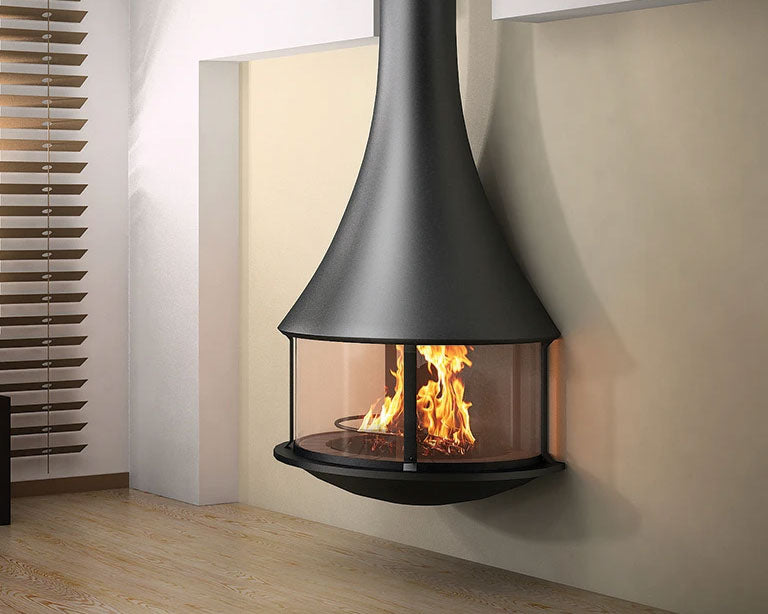

Dimensions (Wall-Mounted Version)

• Unit / Grate Width: 38 5⁄8" / 19 11⁄16"
• Height / Min. Room Height: 73 7⁄16" / 96"
• Depth / Fireplace Opening: 29 3⁄8" / 16 1⁄2" H
• Weight: 275 lbs

Clearances / Protection

• Distance to Combustibles: 48" (all around)
• Floor Protection: 78 5⁄8" diameter × 3⁄8" thick
• Minimum Distance from Floor to Fireplace: 12"
• Firescreen: 15 11⁄32" H

Logs

• Wood Logs Length and Weight: 18 3⁄4", 24 lbs
• Gas Log Set: Max 24", 55,000 BTU
• Ecological Logs Max: 15 lbs (approx. 5 logs)

Venting

• Diameter: 10"
• Type: Class A
• Minimum Height: 15 feet
• Approved Brands: Selkirk, Security Chimneys, ICC RIS, DuraVent
• Outside Combustion Air Intake (Central): Not required
• Outside Combustion Air Intake (Wall-Mounted): Not required (recommended for gas option)
