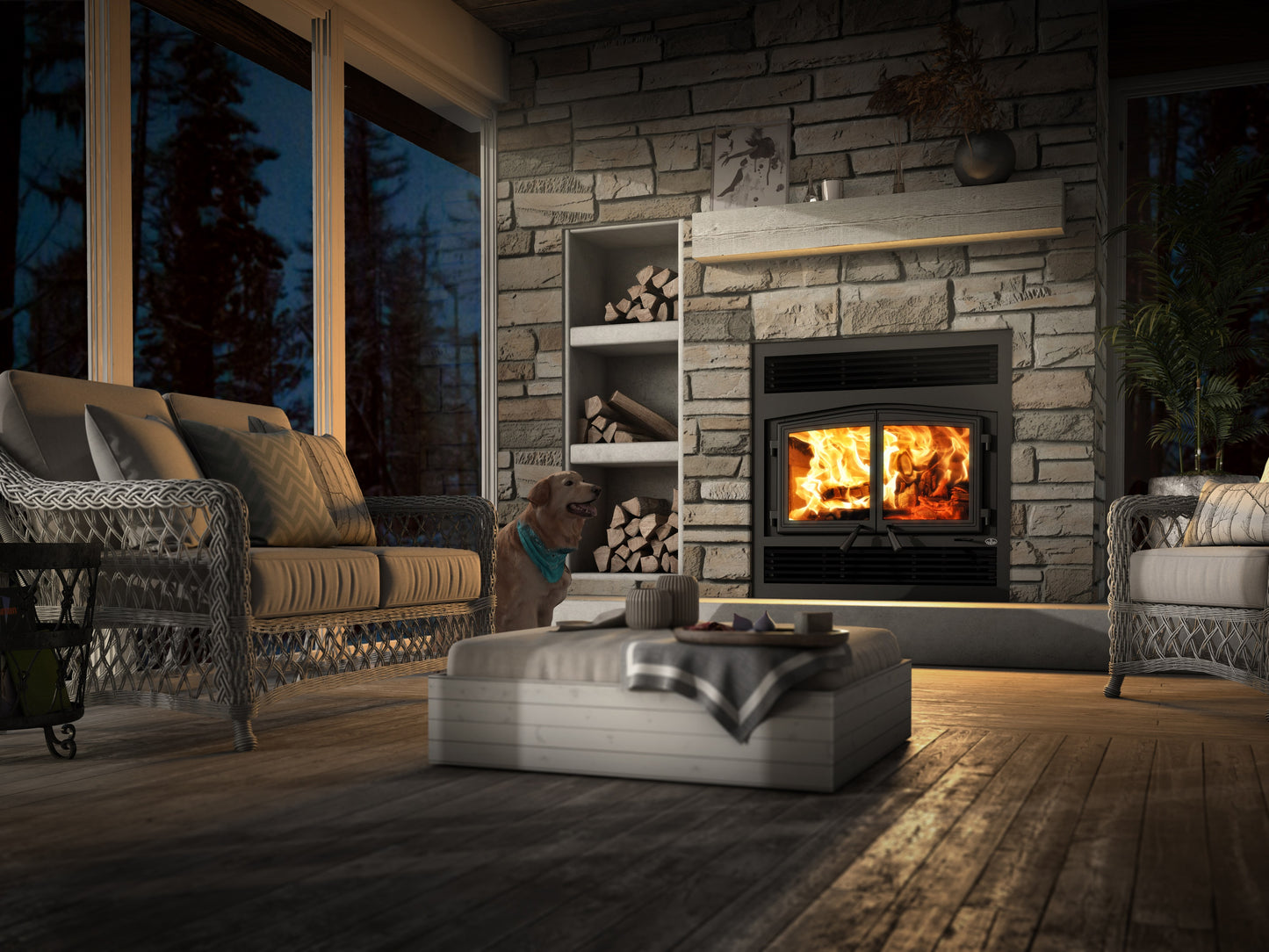

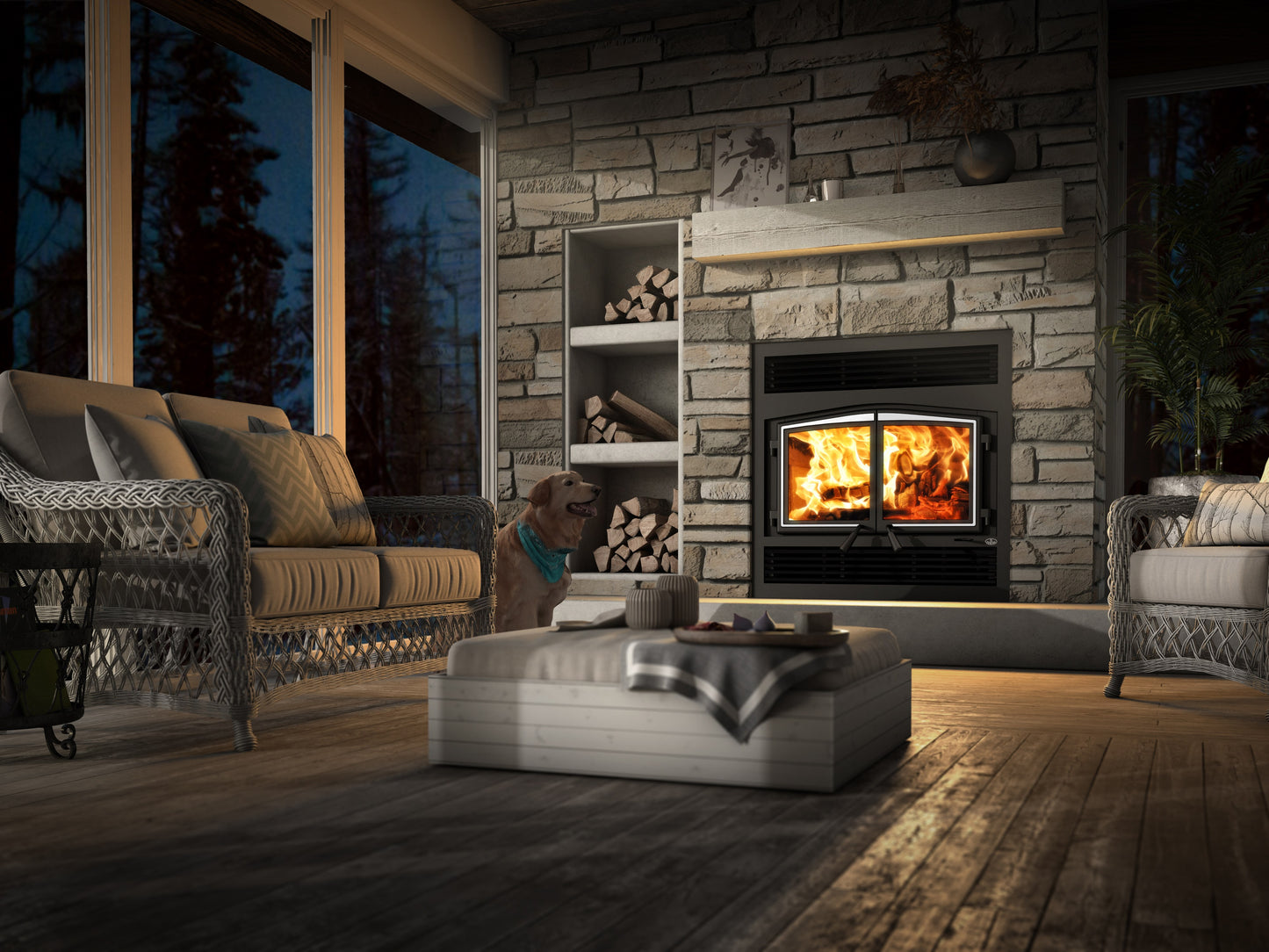

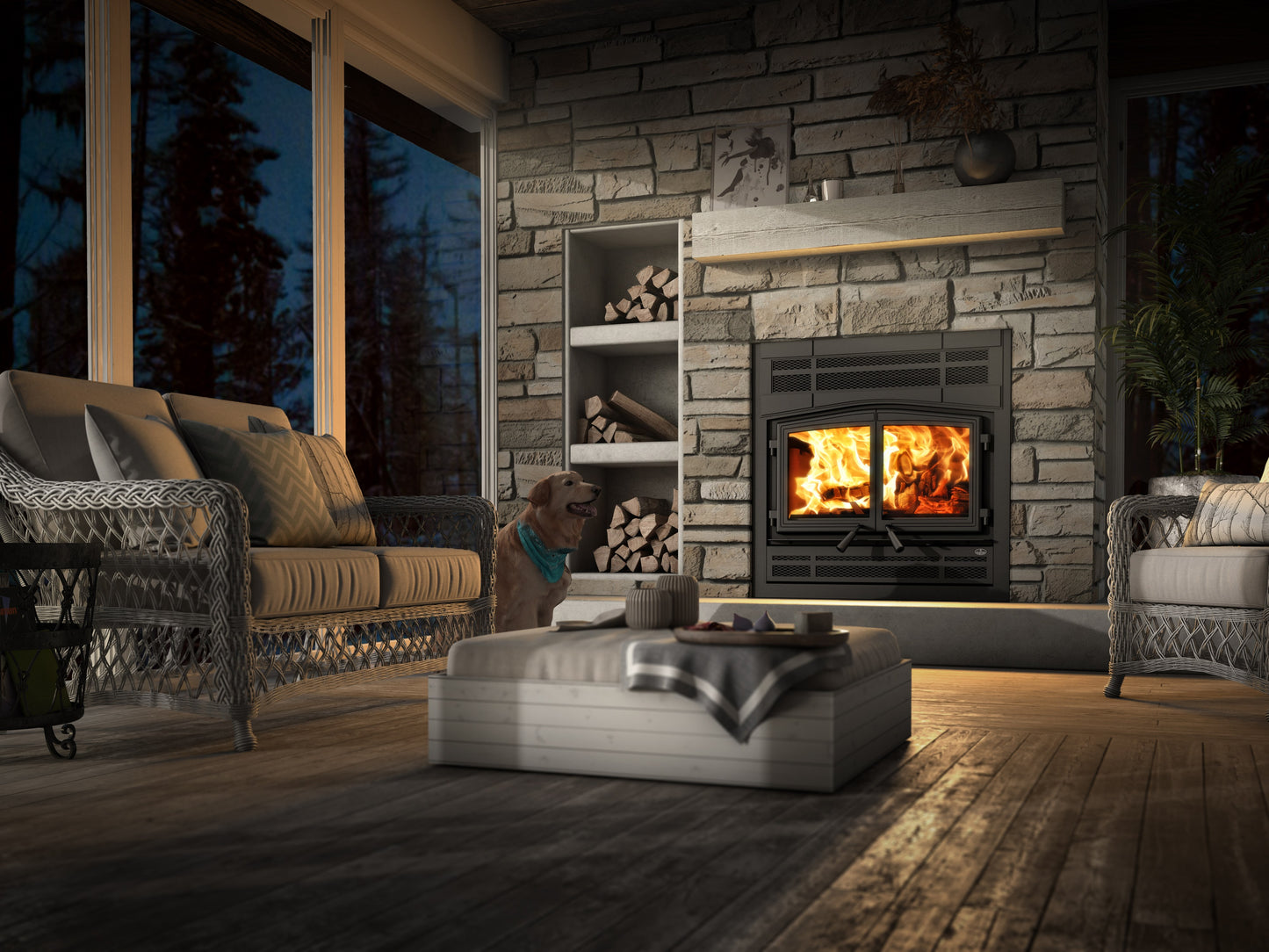

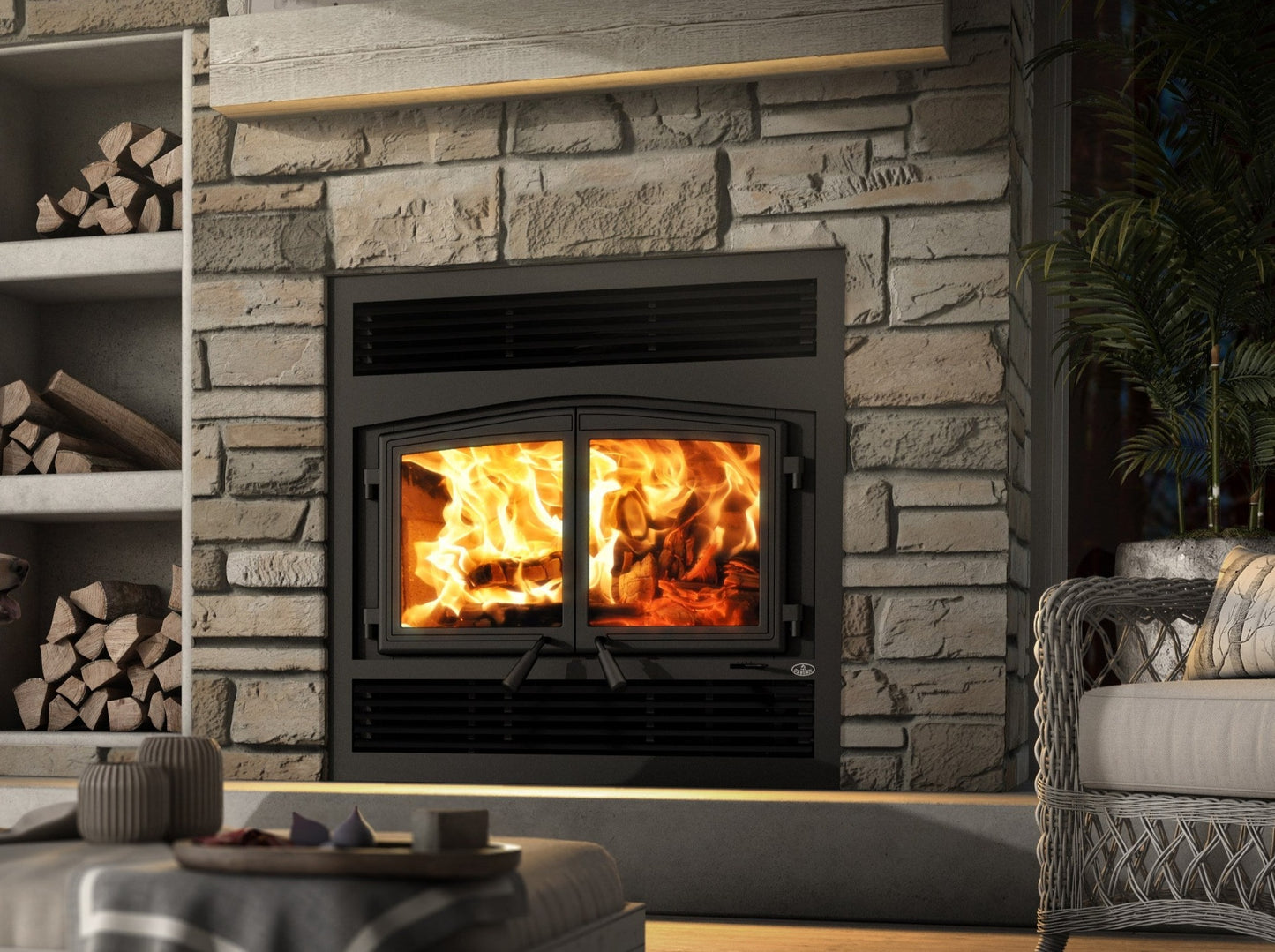

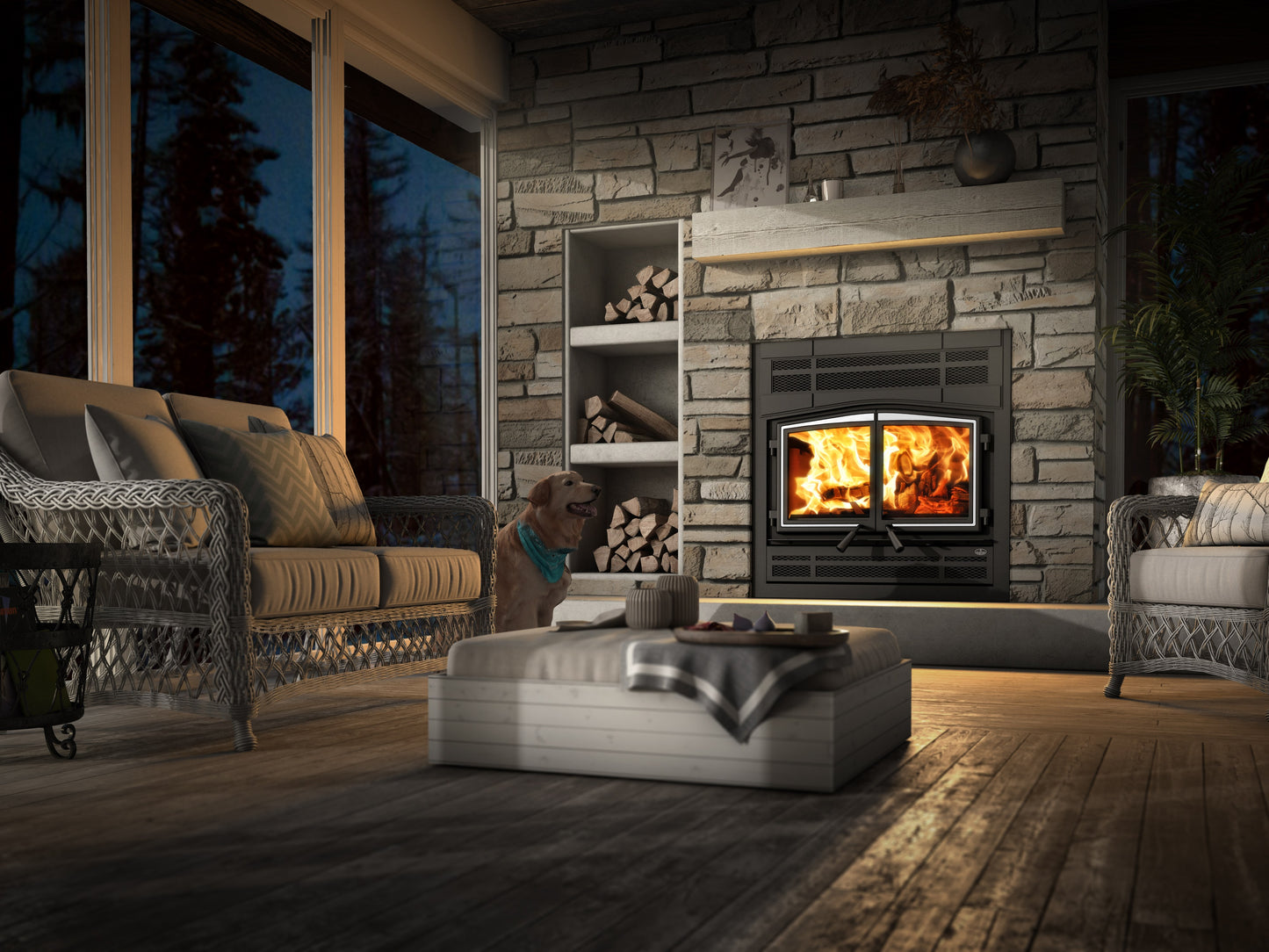

The Osburn Stratford II is a non-catalytic wood-burning fireplace with timeless styling and strong heating capacity. Its 2.5 cu ft firebox loads easily through double cast iron doors, with cast iron andirons and moulded refractory brick inside.
Specifications
Fuel Type: Wood (dry cordwood, 16" recommended)
Combustion Technology: Non-catalytic
Max Heat Output: 80,000 BTU/h (23.4 kW)
Efficiency: 68% average (HHV), 74% optimum
Max Burn Time: 8 h
Firebox Volume: 2.5 cu ft
Max Log Length: 20"
Overall Dimensions: 36 3/4" W × 40 5/8" H × 29 3/4" D
Weight: 468 lb (212 kg) shipping
Door Type: Double cast iron doors
Flue Diameter: 6"
Blower: Included
Emissions: 1.2 g/h
EPA Status: EPA 2020 certified
Clearances
Minimum clearances to combustibles from the installation manual (Canadian installation, measured from the door opening unless noted). Always confirm with the manual and local code before installing.
Combustible mantel: 8" above door opening, 3" max depth
Combustible shelf: 58" from base of fireplace at 6" deep (64" at 12" deep)
Side wall: 13" from door opening
Framing (reference): 37 3/4" W × 41 5/8" H (to first header) × 24 7/8" D
Minimum ceiling height: 80" from base of fireplace
Enclosure: 0" to back, sides and floor; 2" to chimney
Hearth extension: 16" in front, 8" each side of door opening
