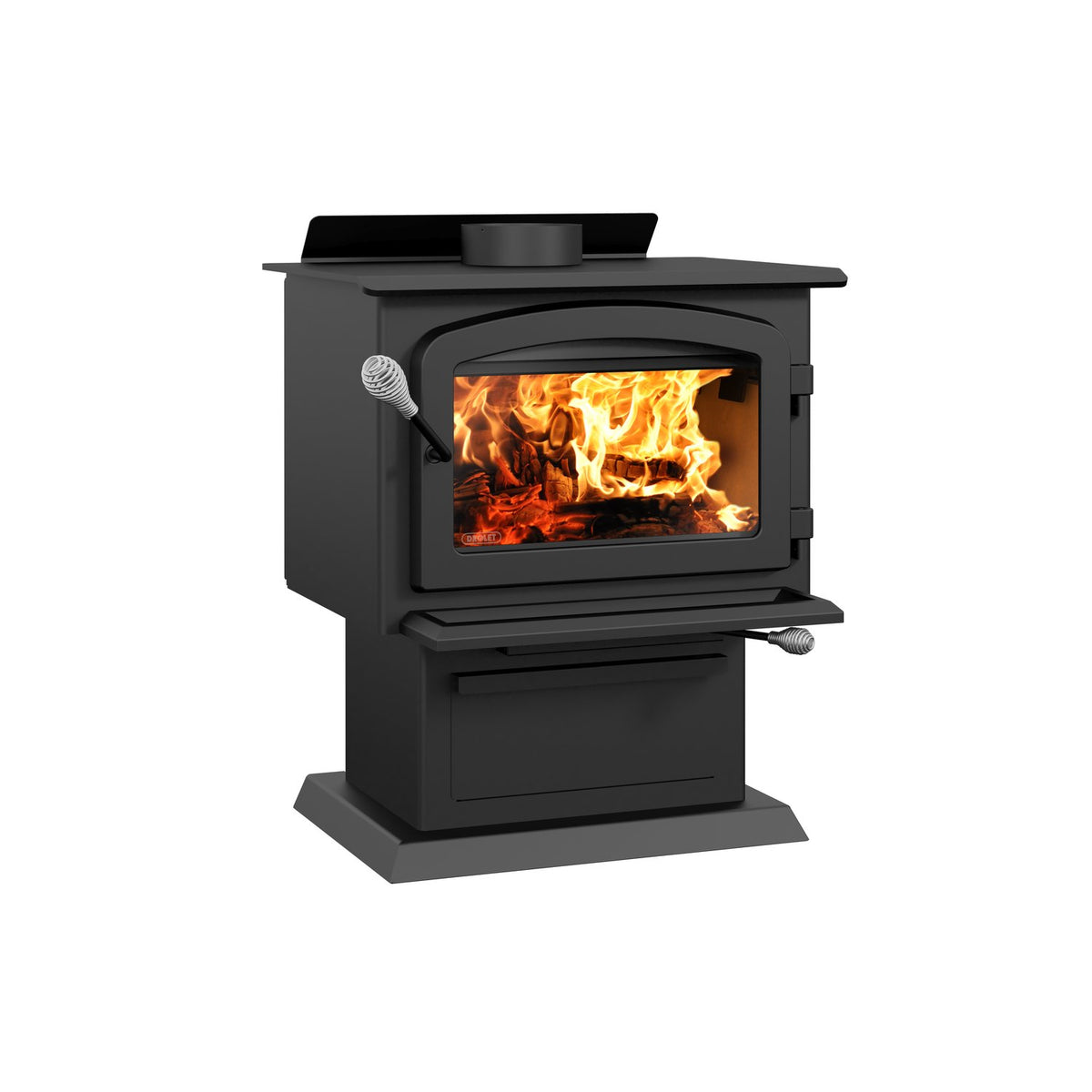

Savannah II

The Drolet Savannah II is a medium-size wood stove with a standard air deflector that boosts air movement through the room, and a heavy-duty 5/16" steel top reinforced with a stainless steel heat shield.

Specifications

• Fuel Type: Wood
• Max Heat Output: Up to 65,000 BTU/h
• Max Burn Time: Up to 7 h
• Max Log Length: 18"
• Emissions: 2.4 g/h, EPA certified, non-catalytic
• Overall Dimensions: 24 7/8" W × 23 5/8" D × 30 5/8" H
• Included: Pedestal with ash drawer, air deflector, ceramic glass with airwash, ash lip
• Certifications: Mobile home and alcove installation
• Warranty: Limited lifetime

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation, single-wall connector, unprotected walls unless noted). Always confirm with the manual and local code before installing.

• Back wall: 14 1/2"
• Side wall: 16"
• Corner (back walls): 12"
• Back wall (double-wall connector): 7 1/2"
• Minimum ceiling height: 84" from floor
• Floor protection (front): 18" in front of door opening
• Floor protection (sides and back): 8"

Documents

• Installation Manual
• Owner's Manual
