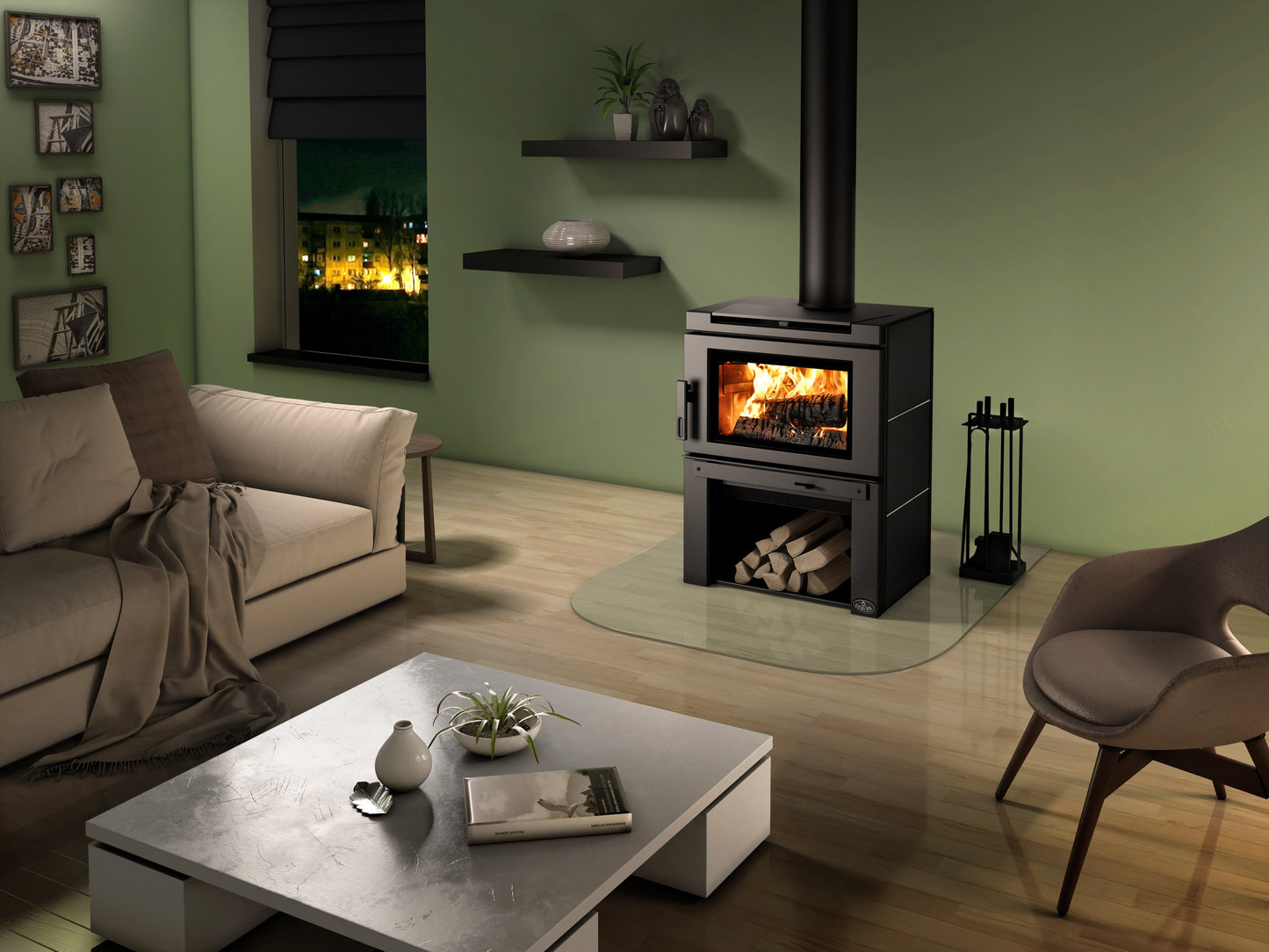

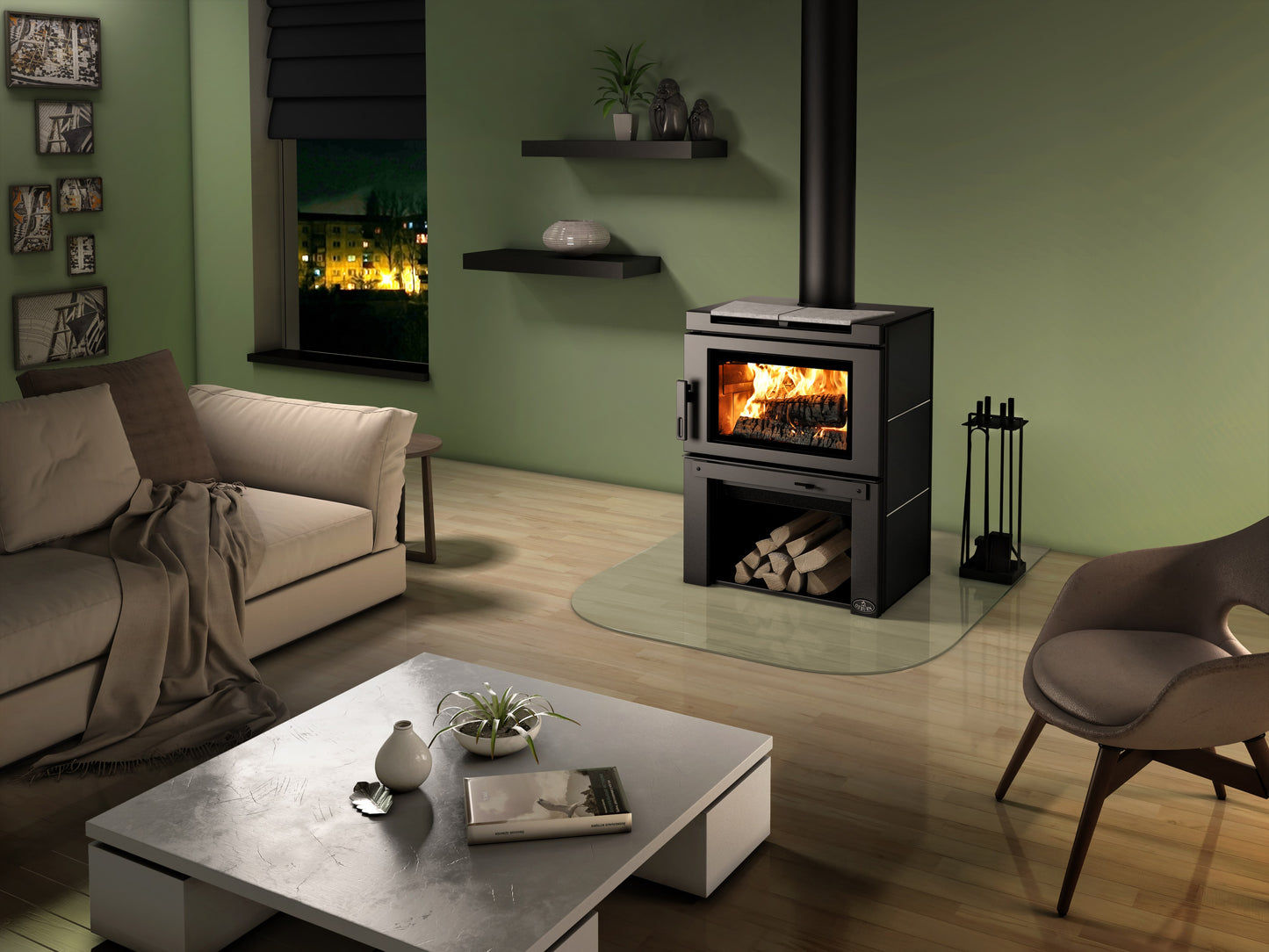

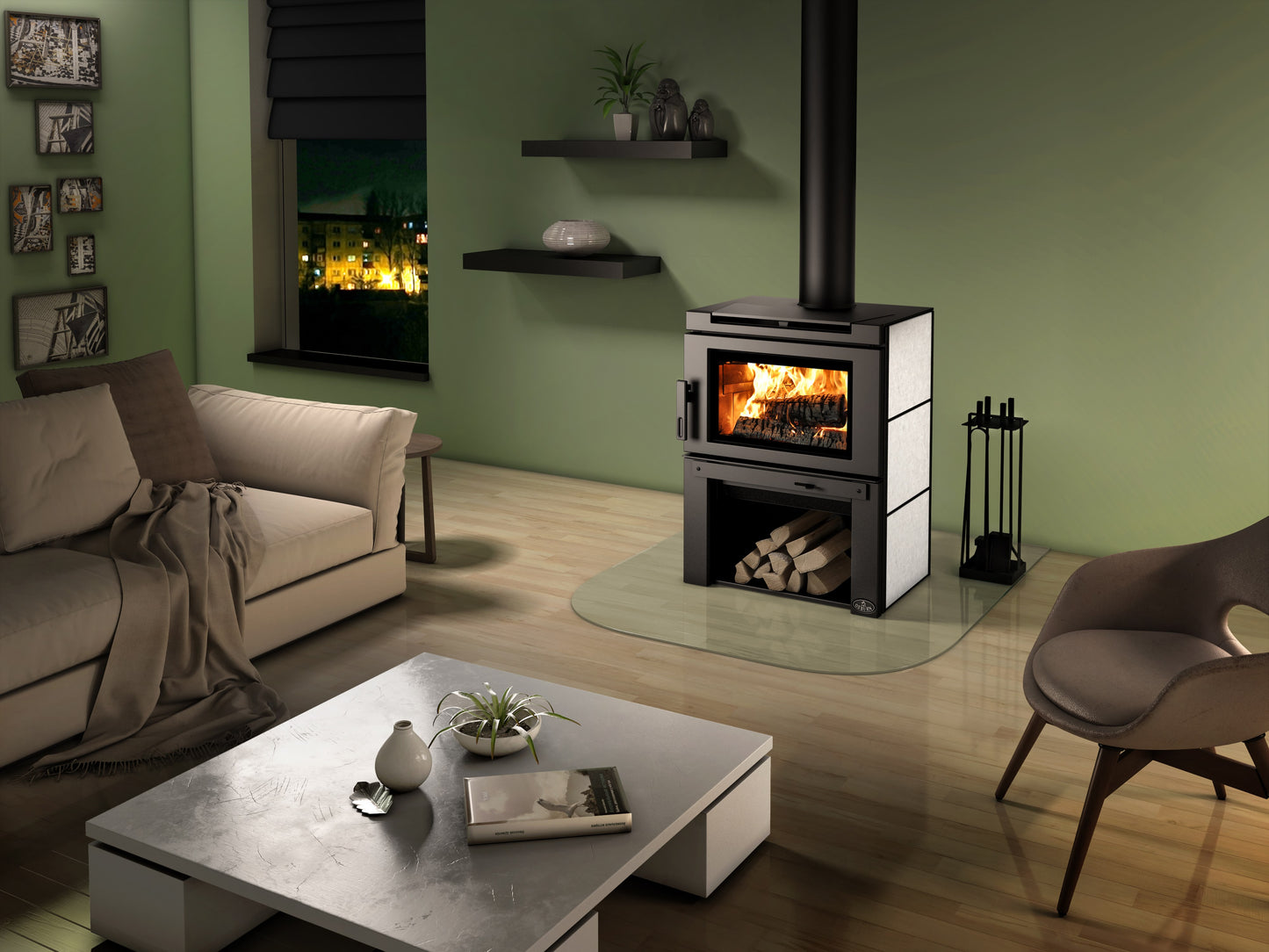

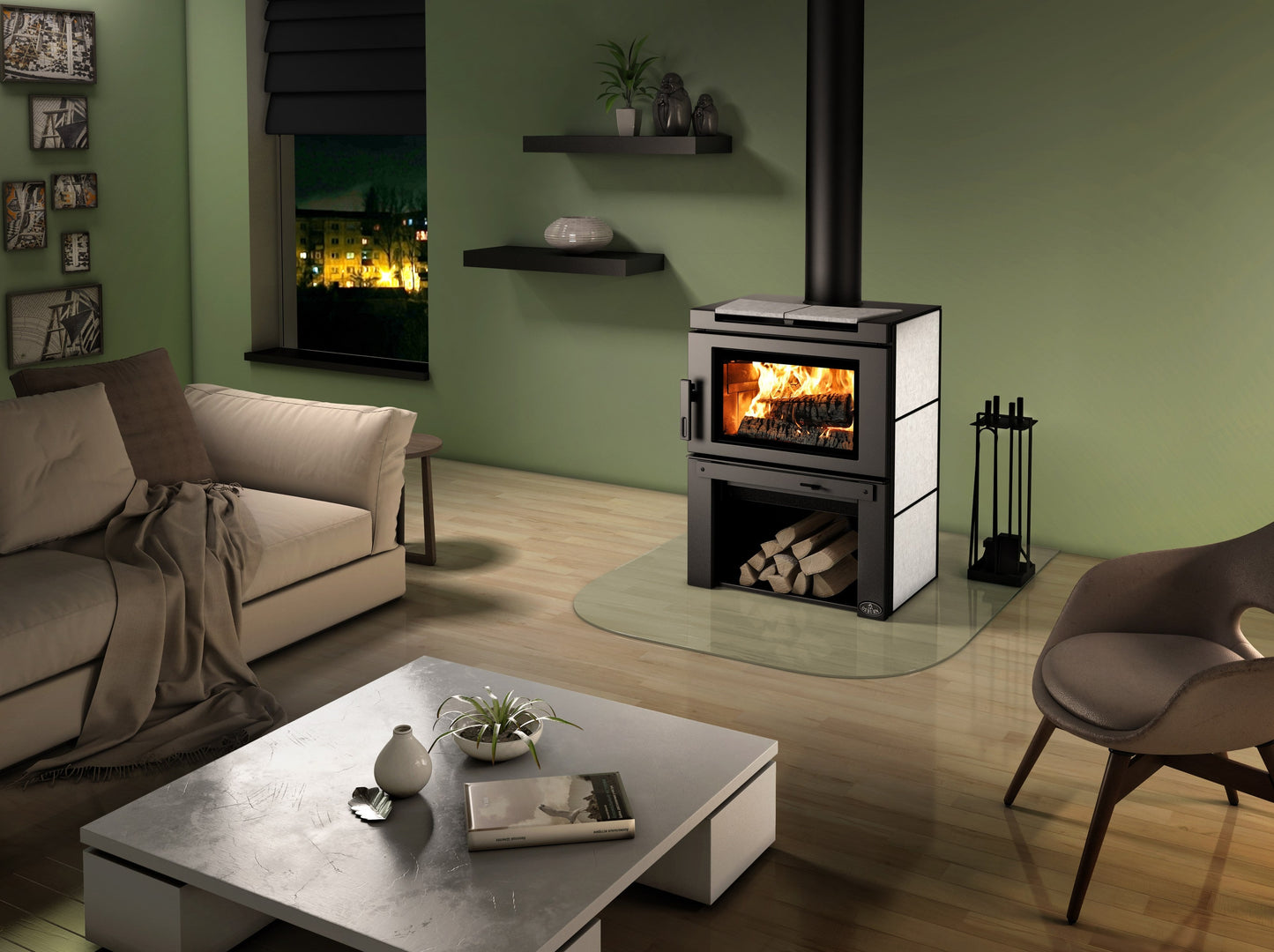

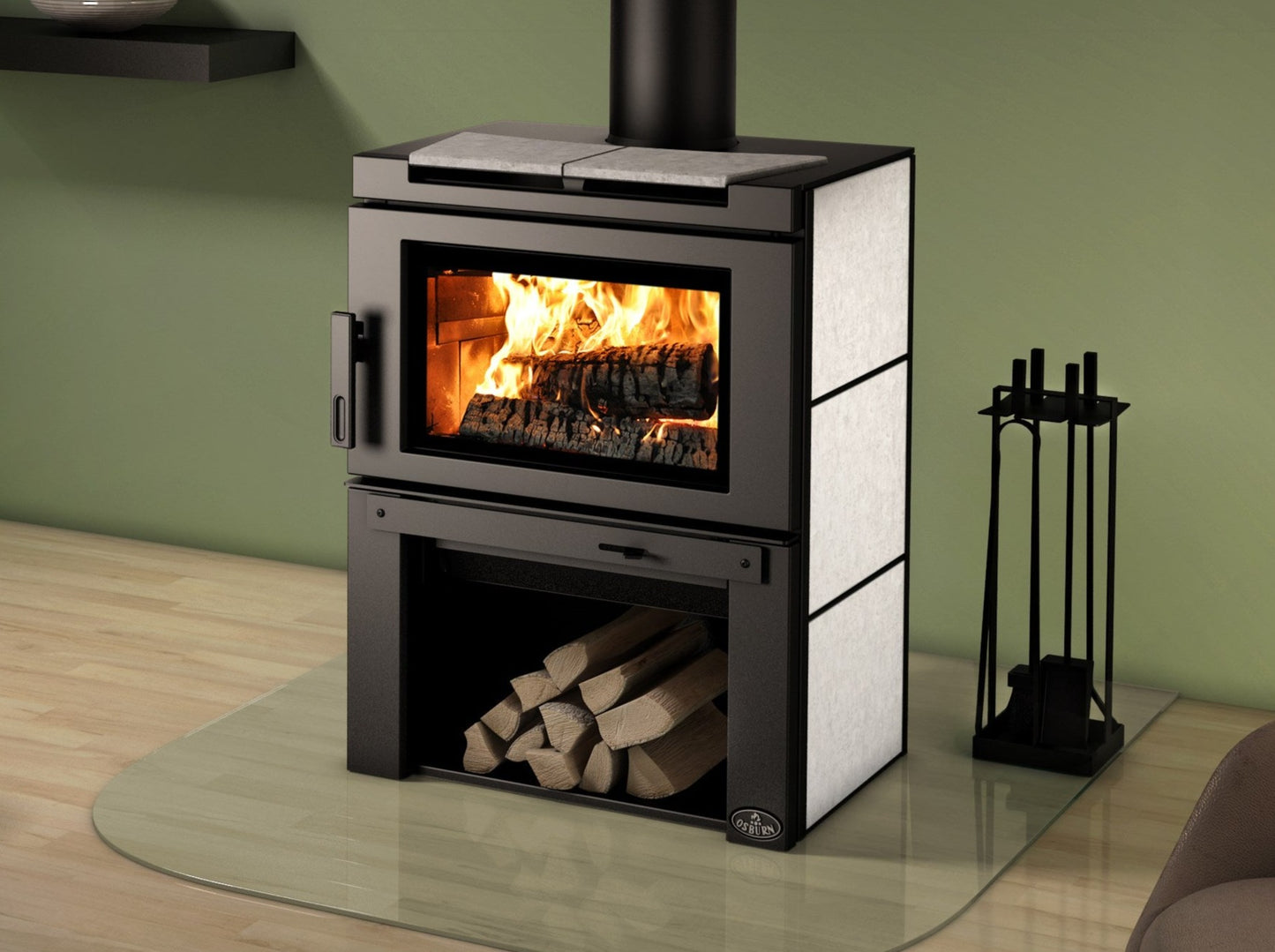

The Osburn Matrix is a sleek, modern wood stove with a European look and a large firebox with log storage underneath. Personalize it with steel or soapstone side and top panels; a 130 CFM blower is included for even heat distribution.
Specifications
Fuel Type: Wood (dry cordwood, 16" recommended)
Combustion Technology: Non-catalytic
Max Heat Output: 75,000 BTU/h (22.0 kW)
Efficiency: 69% average (HHV), 77% optimum
Max Burn Time: 8 h
Firebox Volume: 2.4 cu ft
Max Log Length: 20"
Overall Dimensions: 27 1/8" W × 36 7/8" H × 25" D
Weight: 506 lb (230 kg) shipping
Flue Diameter: 6"
Blower: Included (130 CFM)
Emissions: 2.3 g/h
EPA Status: EPA 2020 certified
Alcove Approved: Yes
Mobile Home Approved: Yes
Clearances
Minimum clearances to combustibles with double-wall black connector pipe, from the installation manual (Canadian installation, unprotected walls unless noted). Always confirm with the manual and local code before installing.
Back wall: 6"
Side wall: 17"
Corner: 7"
Minimum ceiling height: 84" from floor
Floor protection (front): 18" in front of door opening
