Lea

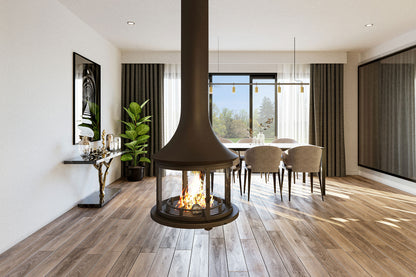

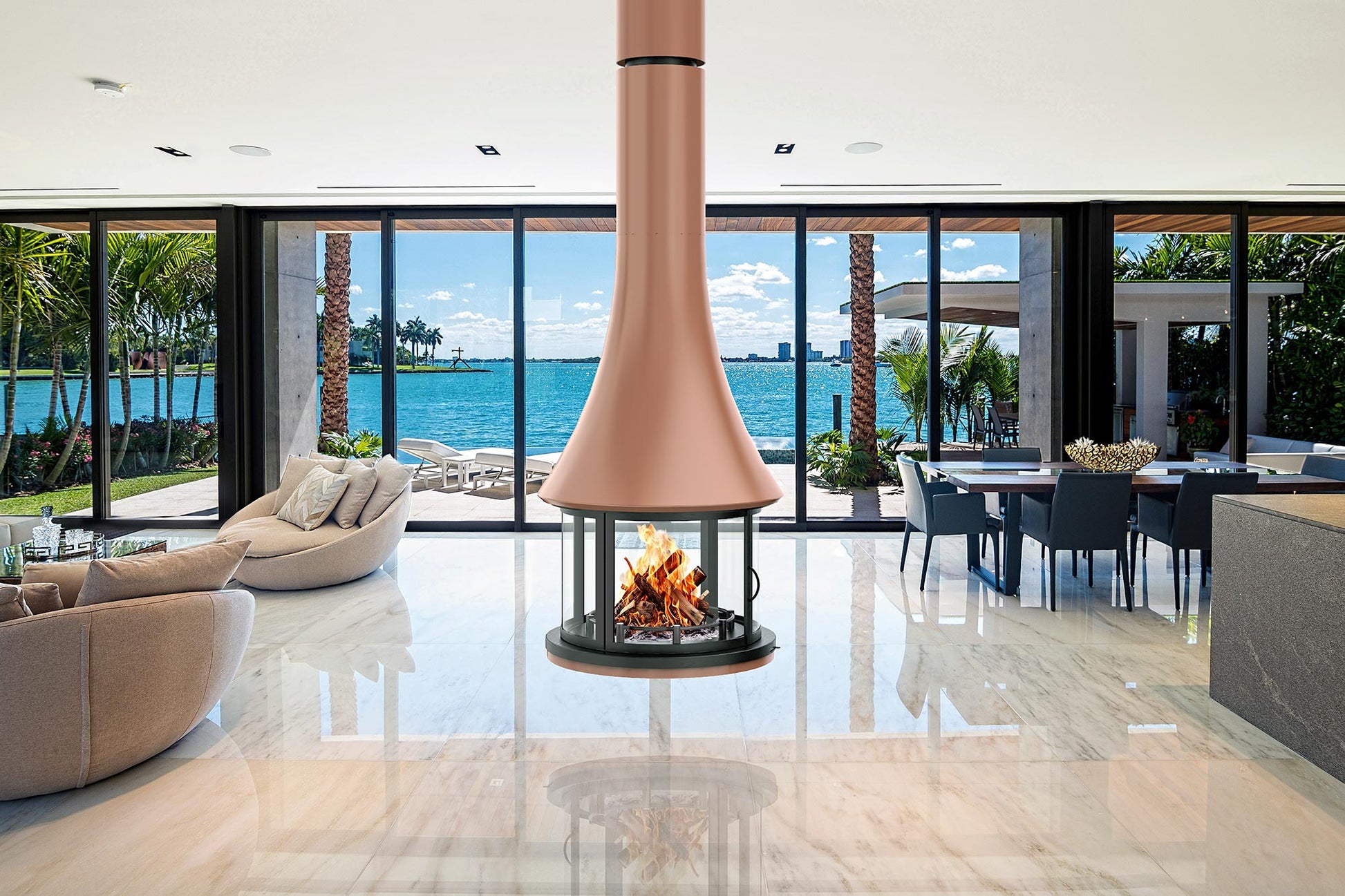

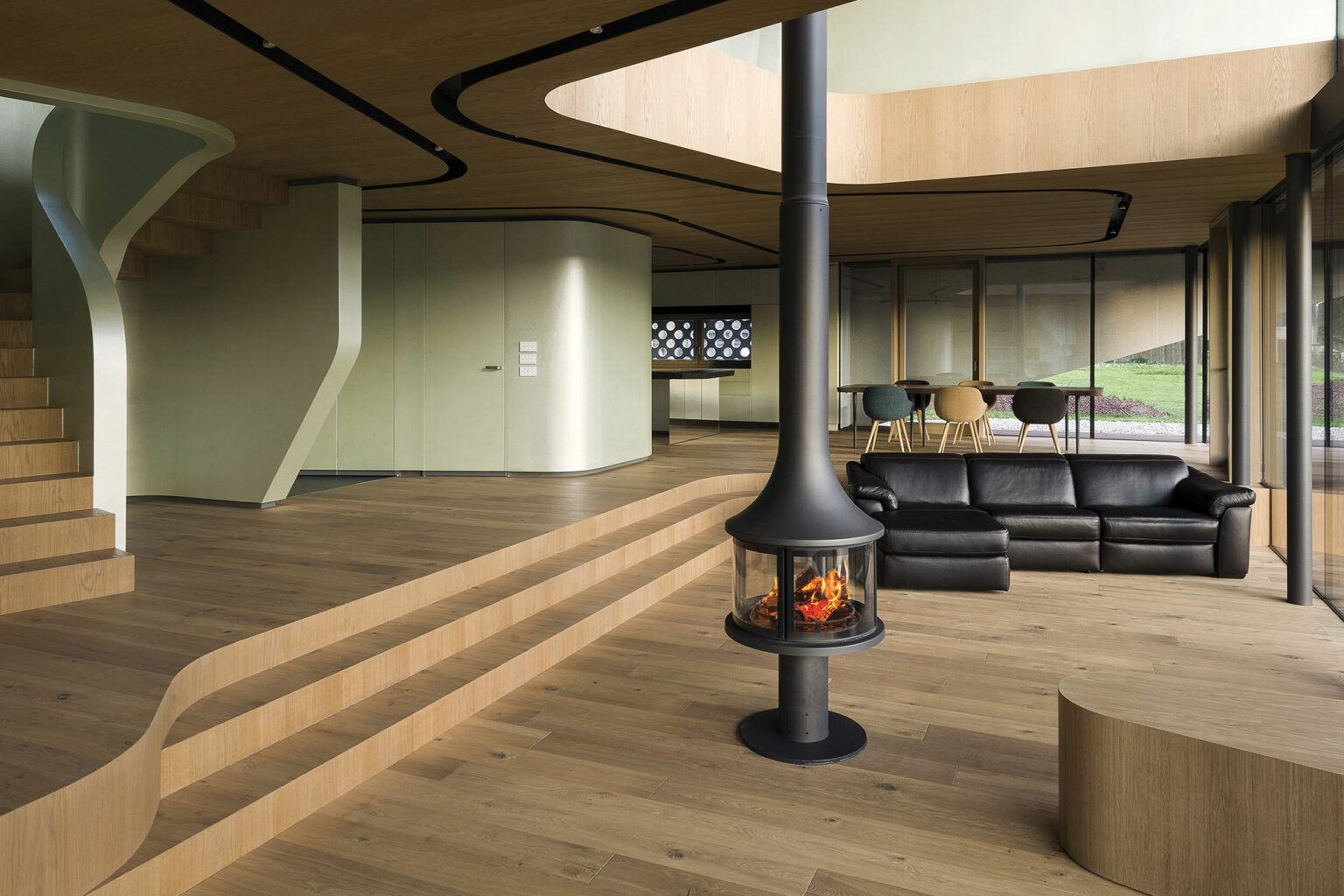

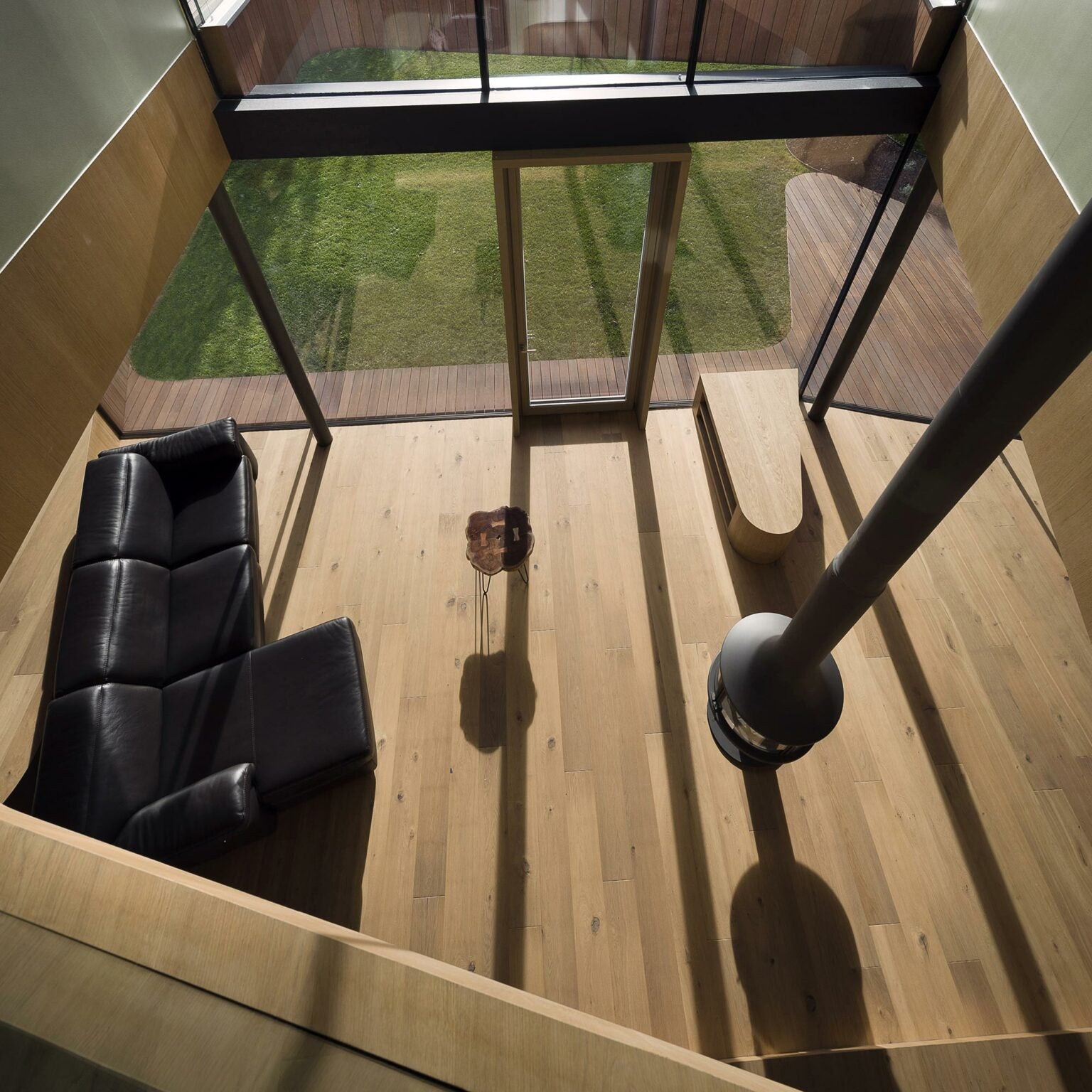

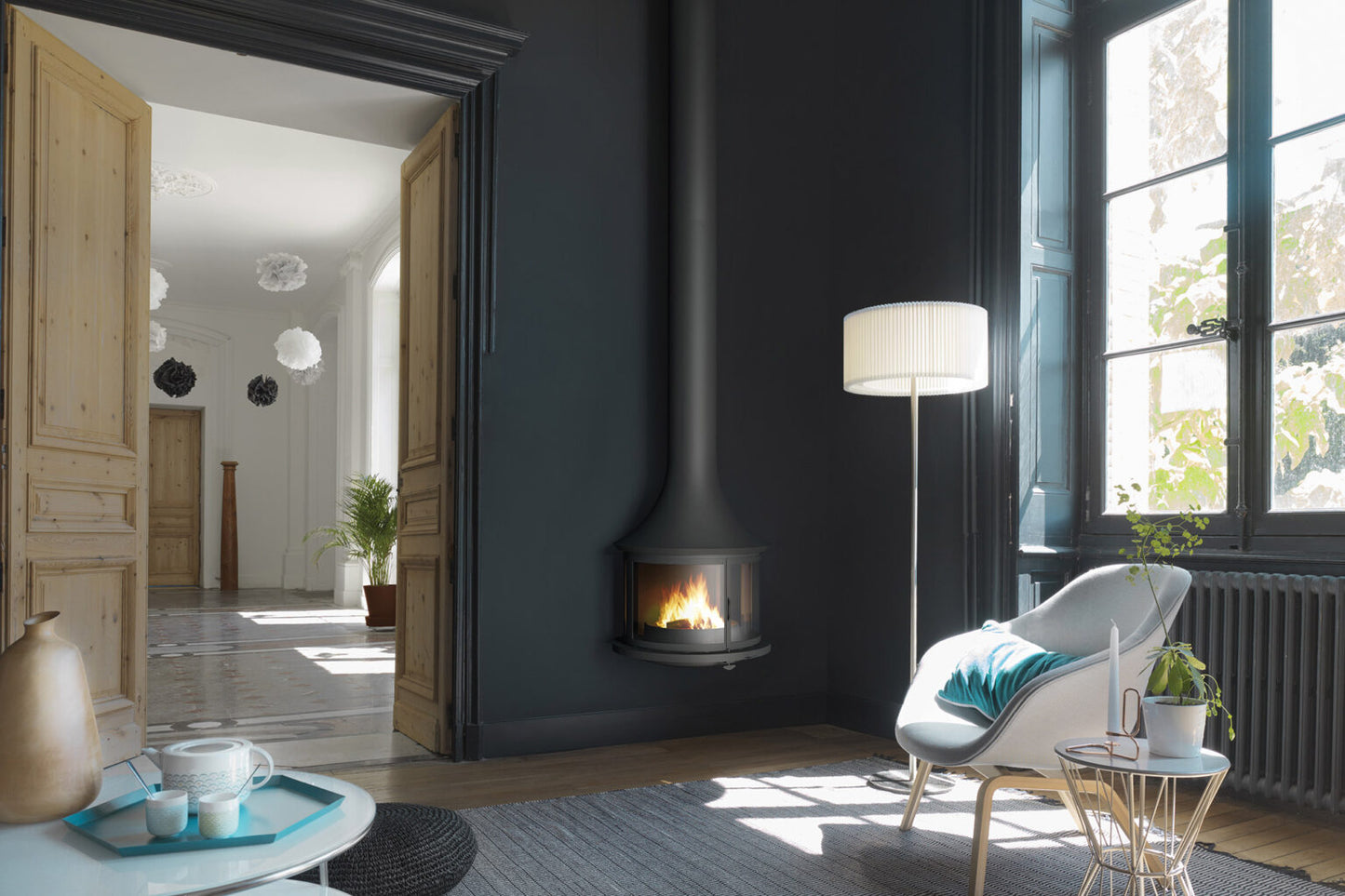

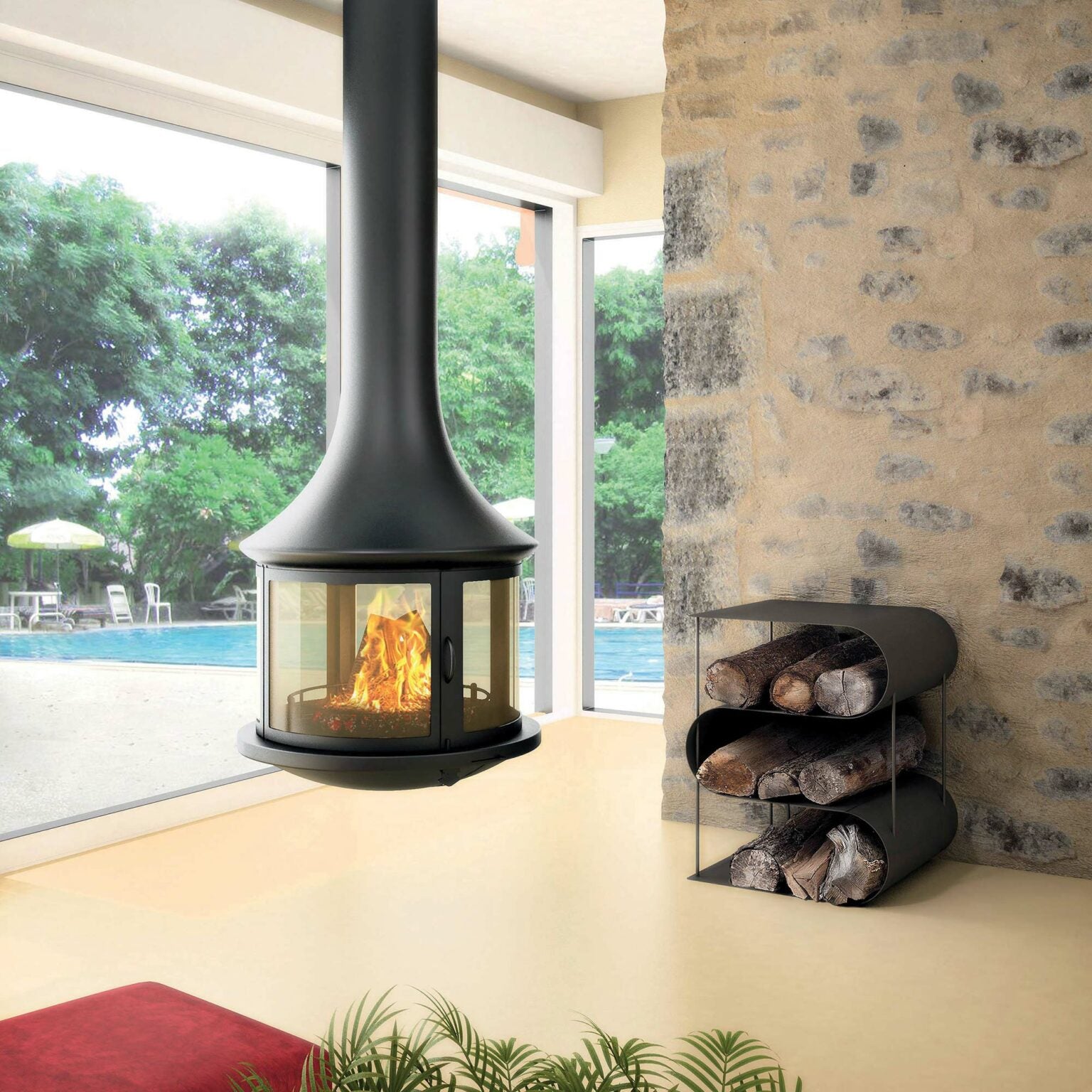

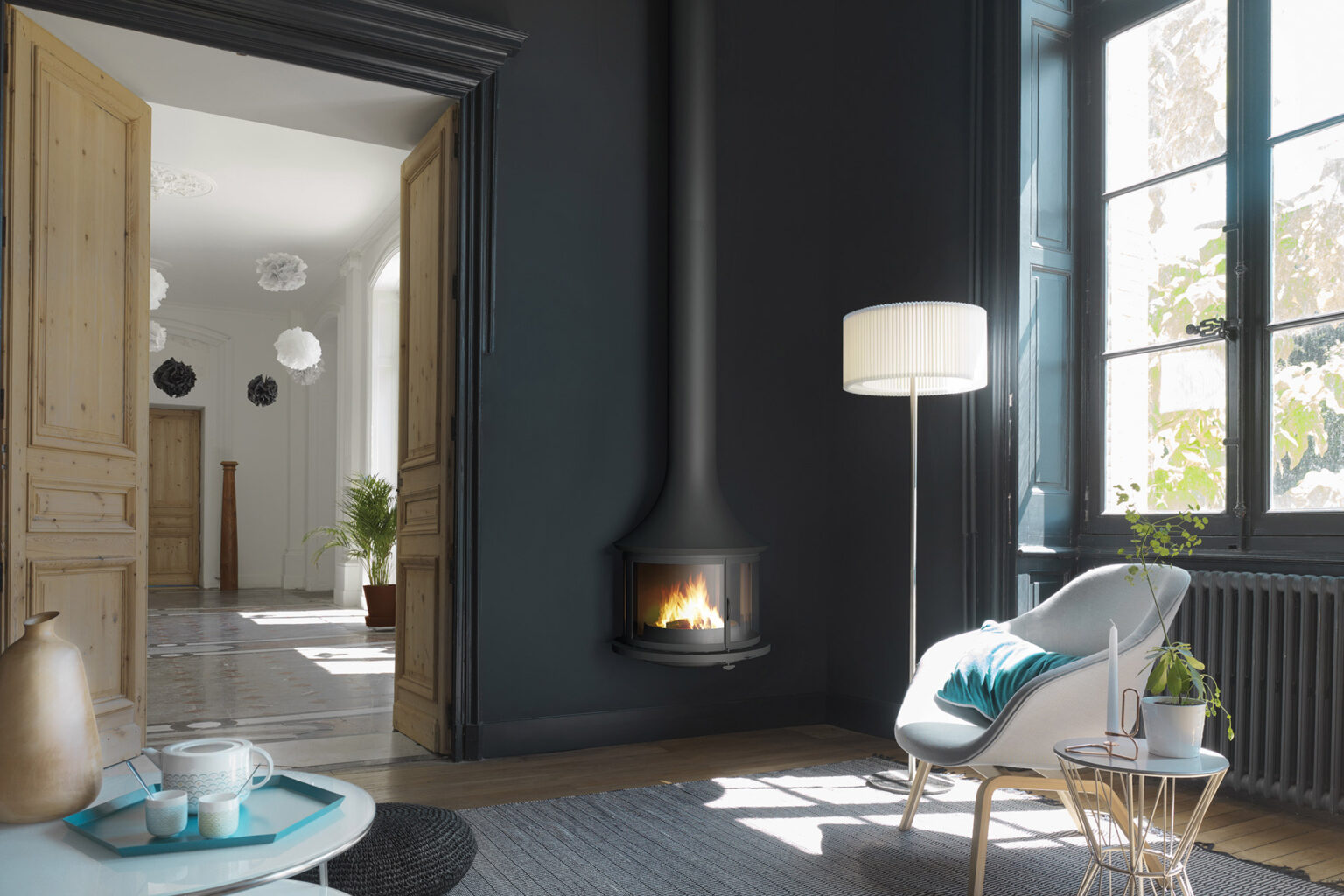

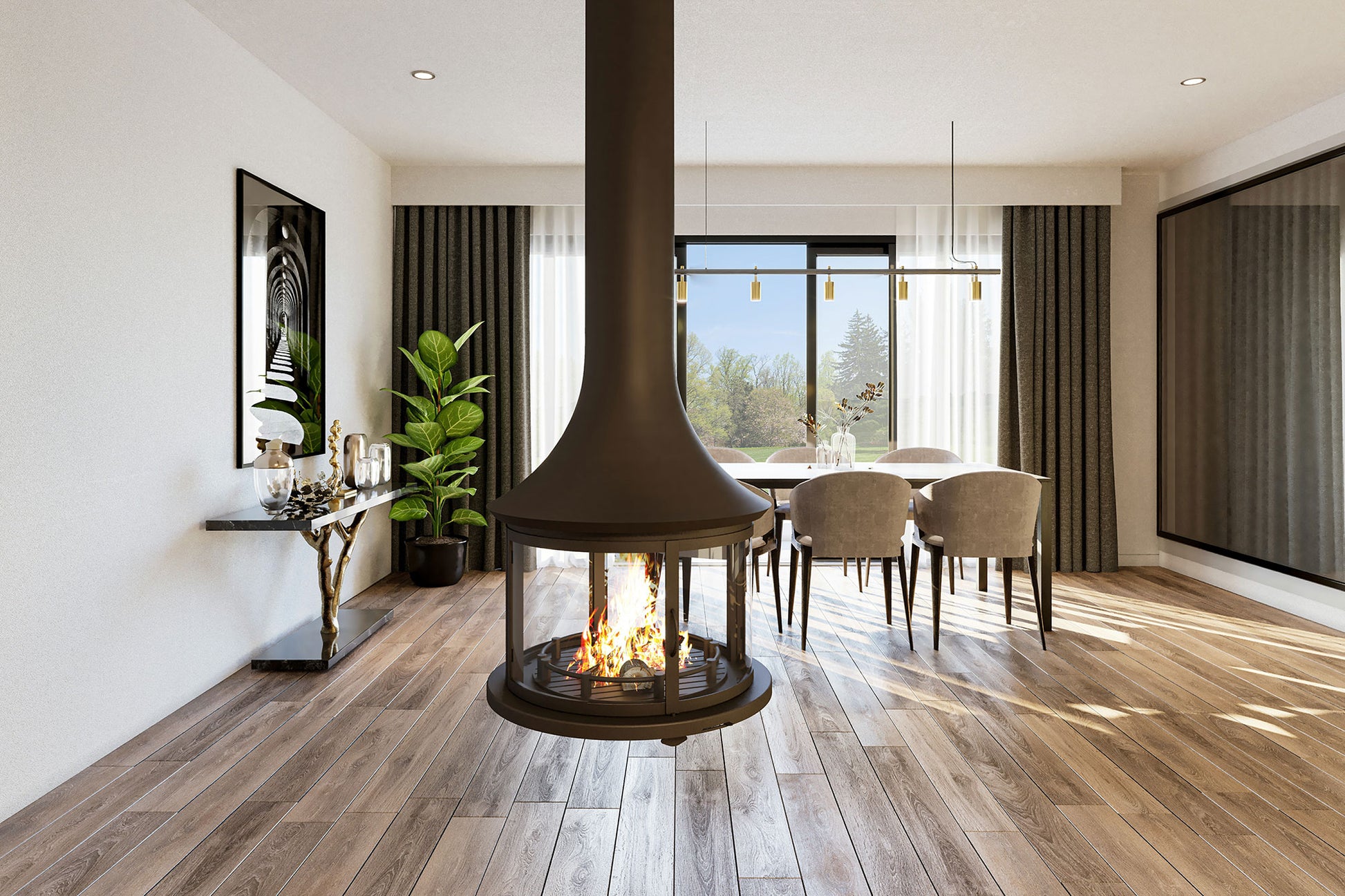

The JC Bordelet Lea is a striking 360° suspended fireplace with a hand-crafted curved dome and glass all around, designed as a centerpiece for modern spaces. It’s available in wood (standard) with an optional gas version (NG or propane), and can be ordered central suspended or wall-mounted, with extensive custom color options.

• Fuel Type: Wood (standard)
• Gas Option: Natural Gas or Propane (optional)
• Max BTU (Gas): 55,000 BTU
• EPA Status: EPA Exempt

Dimensions (Central Version)

• Unit / Grate Diameter: 27 9⁄16" / 15 3⁄4"
• Fireplace Height / Pedestal Height / Min. Room Height: 70 5⁄8" / 15 9⁄" / 96"
• Fireplace Opening: 15 13⁄16"
• Fireplace Weight / Pedestal Weight: 330 lbs / 66 lbs

Dimensions (Wall-Mounted Version)

• Unit / Grate Width: 27 9⁄16" / 17 5⁄16"
• Fireplace Height / Pedestal Height / Min. Room Height: 70 5⁄8" / 15 9⁄" / 96"
• Depth / Fireplace Opening: 23 13⁄16" / 15 3⁄4"
• Fireplace Weight / Pedestal Weight: 330 lbs / 66 lbs

Clearances

• Distance to Combustibles: 48" (all around)
• Floor Protection: 67 9⁄16" diameter × 3⁄8" thick
• Minimum Distance from Floor to Fireplace: 13 5⁄8"
• Log Length and Weight: 16", 20 lbs
• Ecological Logs Max: 15 lbs (approx. 5 logs)

Venting

• Diameter: 8"
• Type: Class A
• Minimum Height: 15 feet
• Approved Brands: Selkirk, Security Chimneys, ICC RIS, DuraVent
• Outside Combustion Air Intake (Central): Not required
• Outside Combustion Air Intake (Wall-Mounted): Not required
