Deco Nano

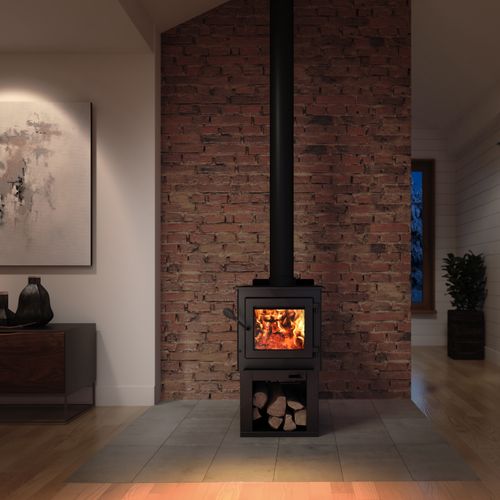

The Drolet Deco Nano is a small wood stove with a modern design, a taller-than-average profile and log storage built into the pedestal. Its deeper firebox holds more ash, so it needs emptying less often.

Specifications

• Fuel Type: Wood
• Max Heat Output: Up to 45,000 BTU/h
• Max Burn Time: Up to 5 h
• Max Log Length: 17"
• Firebox Volume: 1.55 ft³
• Emissions: 1.8 g/h, EPA certified, non-catalytic
• Overall Dimensions: 18 1/2" W × 29 1/8" D × 32 1/2" H
• Included: Pedestal with log storage, top air deflector, ceramic glass with airwash, cast iron door with adjustable hinges, ash lip, stainless steel heat shield
• Certifications: Mobile home and alcove installation
• Warranty: Limited lifetime

Clearances

Minimum clearances to combustibles from the installation manual (Canadian installation, single-wall connector, unprotected walls unless noted). Always confirm with the manual and local code before installing.

• Back wall: 14"
• Side wall: 18"
• Corner (back walls): 11"
• Back wall (double-wall connector): 6"
• Minimum ceiling height: 84" from floor
• Floor protection (front): 18" in front of door opening
• Floor protection (sides and back): 8"

Documents

• Installation Manual
• Owner's Manual
