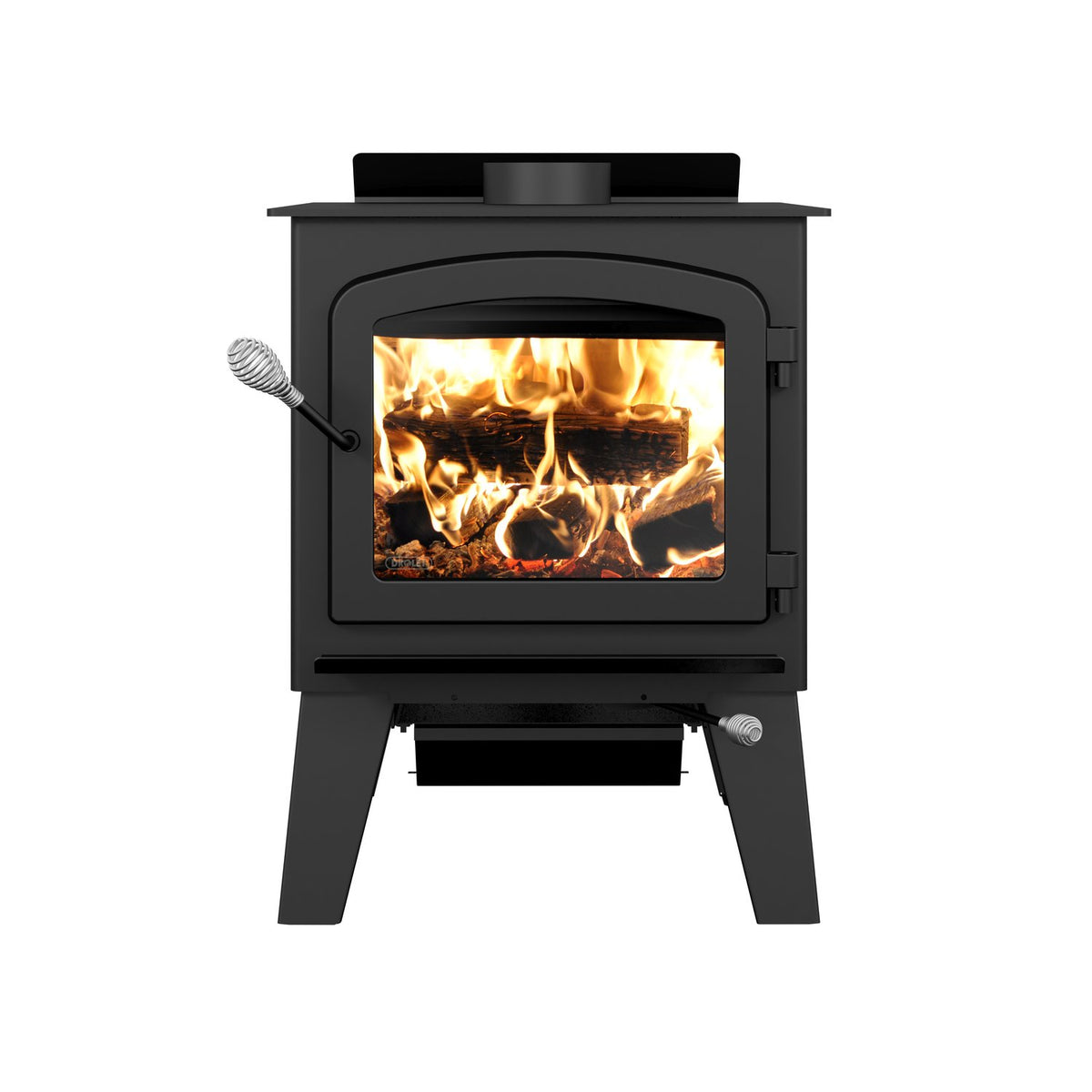

Austral III with Heatflow S5

The Drolet Austral III with Heatflow S5 pairs the low-emission Austral III with a galvanized steel Heatflow S5 cabinet mounted on top, which distributes heat to up to four other rooms through ductwork.

Specifications

• Fuel Type: Wood
• Max Heat Output: Up to 90,000 BTU/h
• Max Burn Time: Up to 10 h
• Max Log Length: 20"
• Firebox Volume: 3.3 ft³
• Emissions: 0.95 g/h, non-catalytic
• Overall Dimensions: 23 3/4" W × 32 1/2" D × 32 1/8" H (stove)
• Included: Heatflow S5 system, steel legs with ash drawer, top air deflector, ceramic glass with airwash, ash lip, 5/16" steel top with C-Cast heat shield
• Warranty: Limited lifetime

Documents

• Installation Manual
• Owner's Manual
• Heatflow S5 Manual
