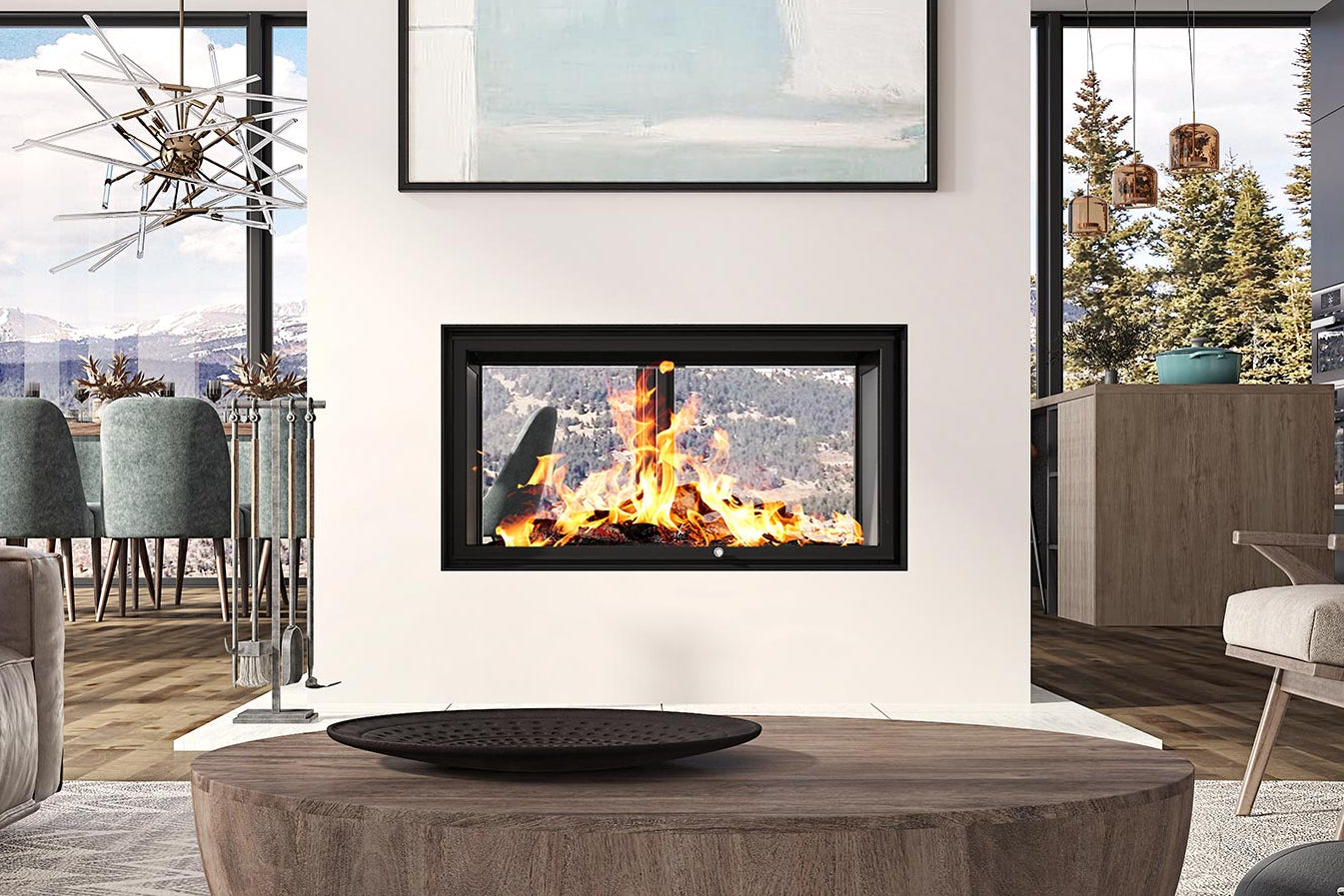

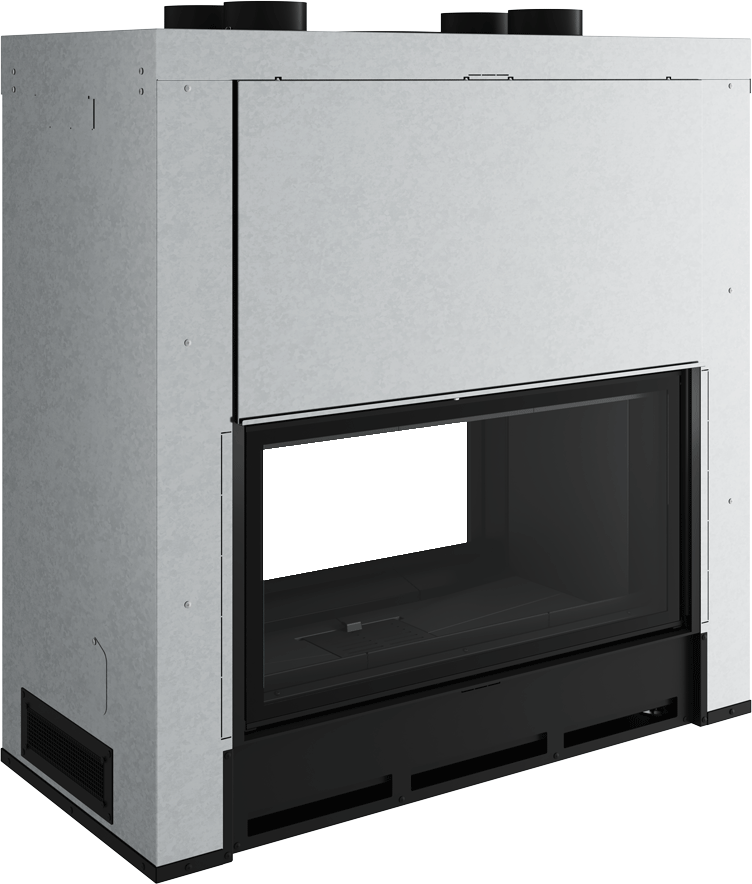

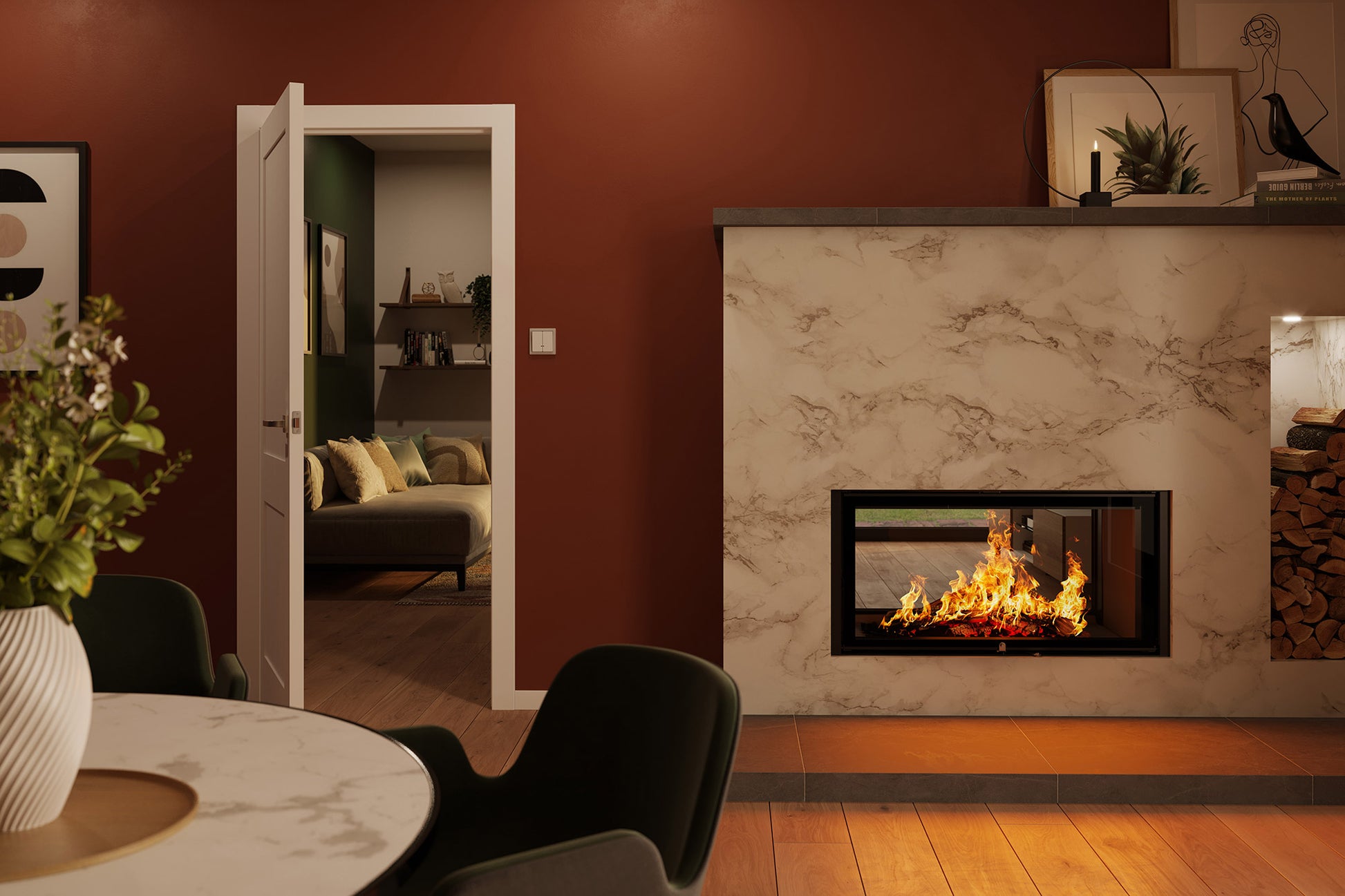

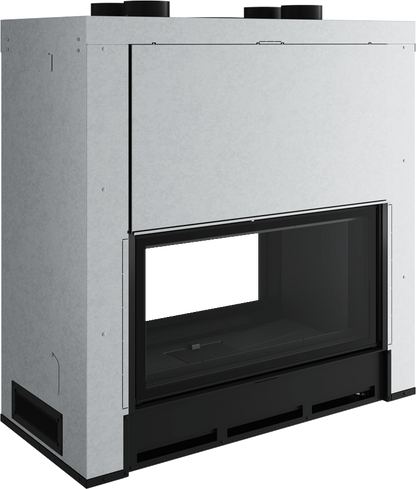

40 See-Thru

The LUXUS® 40 See-Thru is a premium see-through wood fireplace that lets you enjoy the fire from two rooms at once. It features an ultra-smooth guillotine glass door that disappears behind your finish, plus chamotte refractory panels that store heat and radiate it back for better comfort.

Specifications

• Fuel Type: Wood (Cordwood)
• Max Heat Output: Up to 49,000 BTU
• EPA Status: EPA Exempt
• Viewing Dimensions (Full Viewing): 41 5/16" W × 21" H × 29 1/2" D
• Overall Dimensions: 56 3/8" W × 53 1/16" H × 29 1/2" D
• Weight: 772 lbs
• Door Style / Shape: See-Thru, Guillotine
• Guillotine Glass Door Size: 38 1/2" W × 18 7/8" H
• Rear Glass Panel Size: 38 1/2" W × 19 1/2" H
• Ideal Log Length: 18"
• Firebox Volume: 6.83 cu. ft.
• Firebox Lining: Chamotte
• Venting Type: Class A
• Venting Diameter: 10"
• Venting Height (Min/Max): 15–45 ft
• Approved Vent Brands: Selkirk, Security Chimneys, ICC RIS
• Air Circulation: Required Hot Air Gravity Kit
