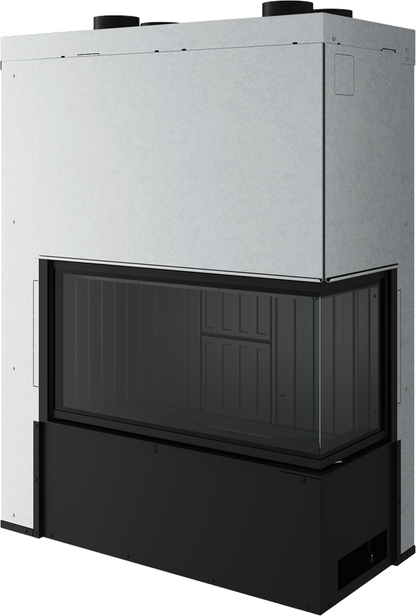

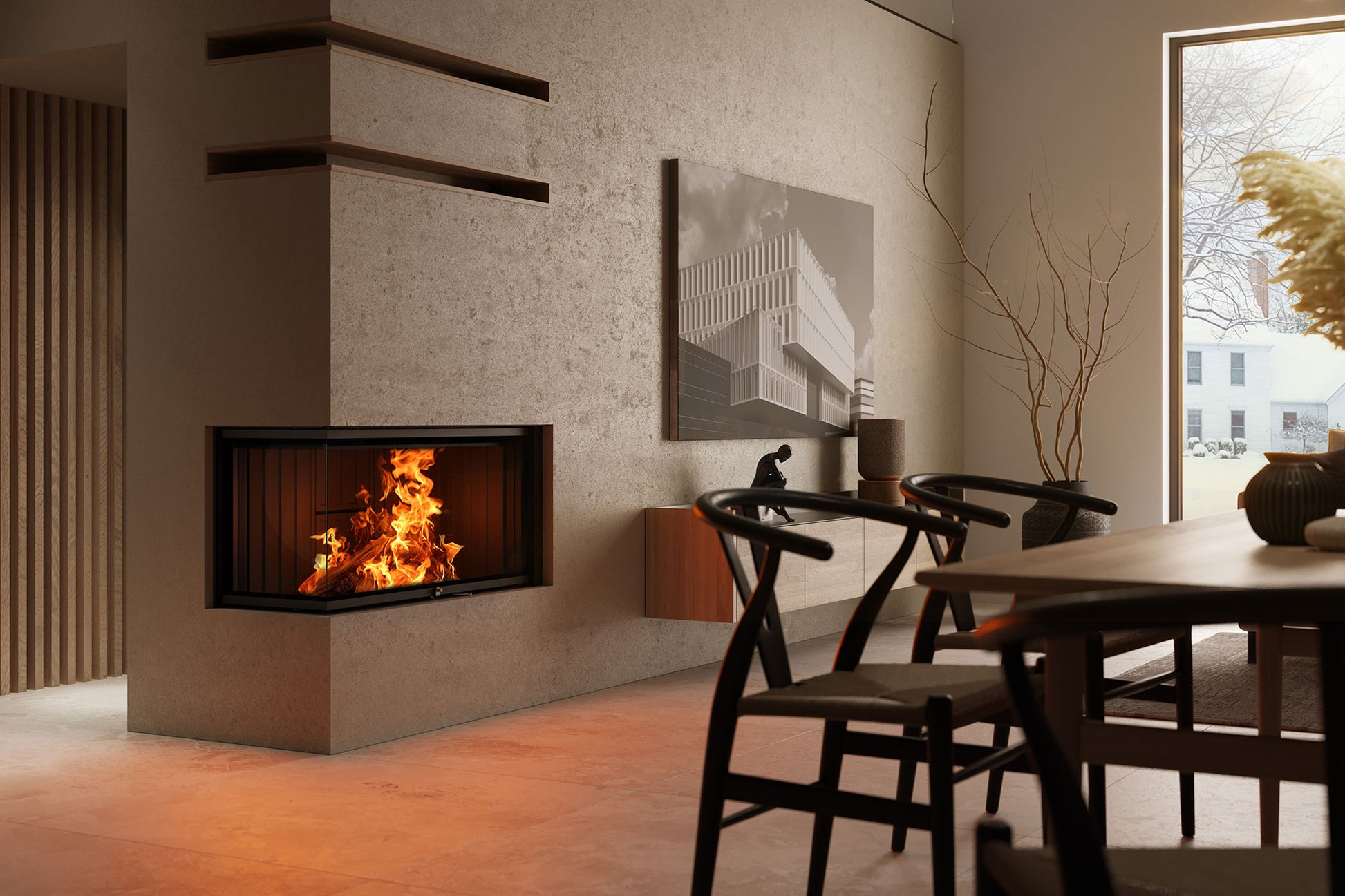

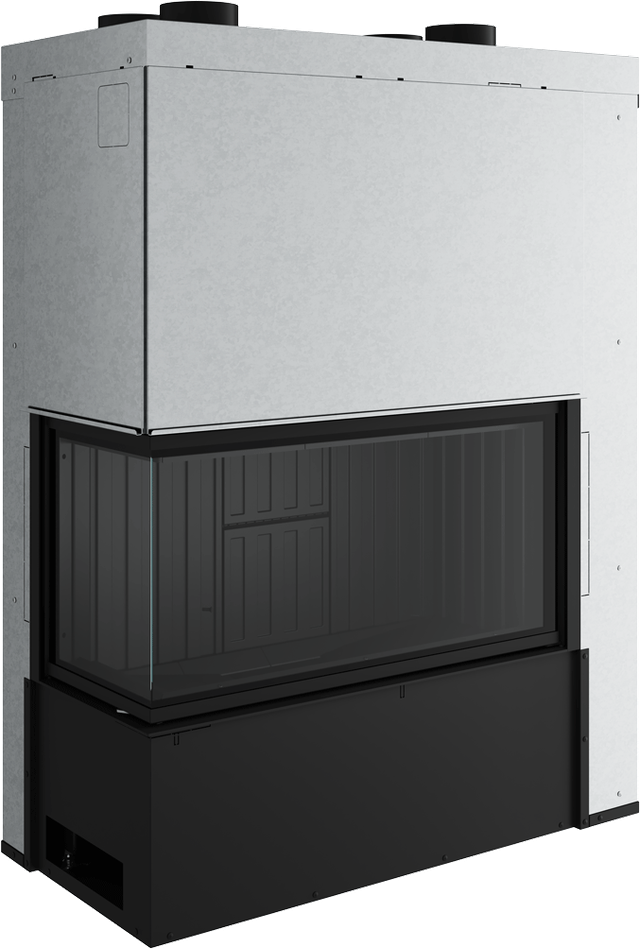

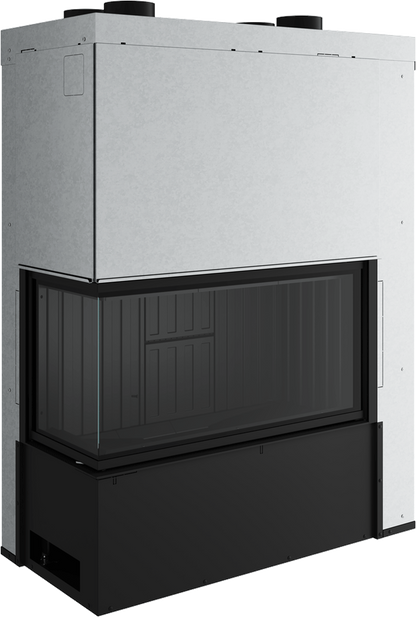

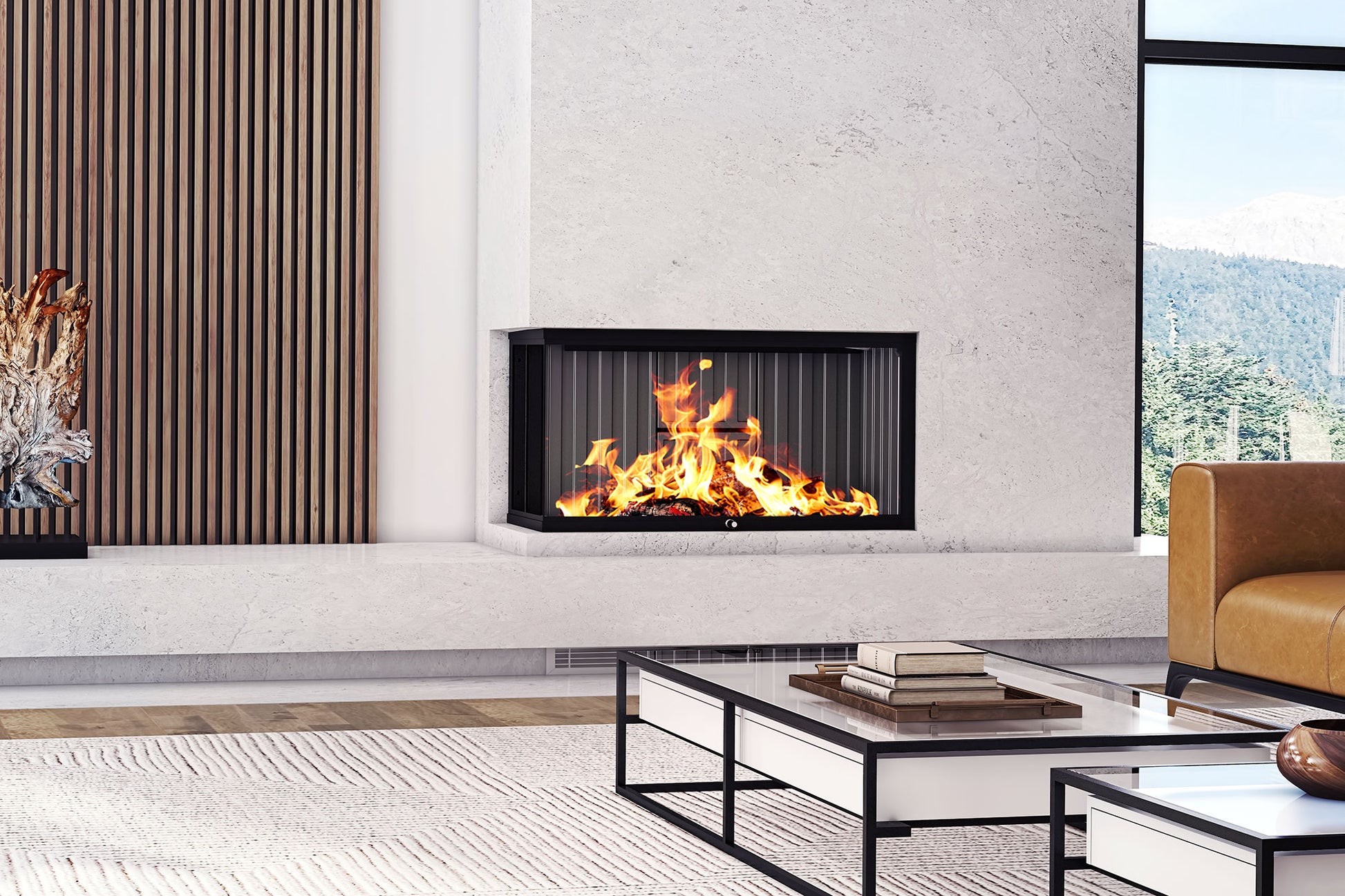

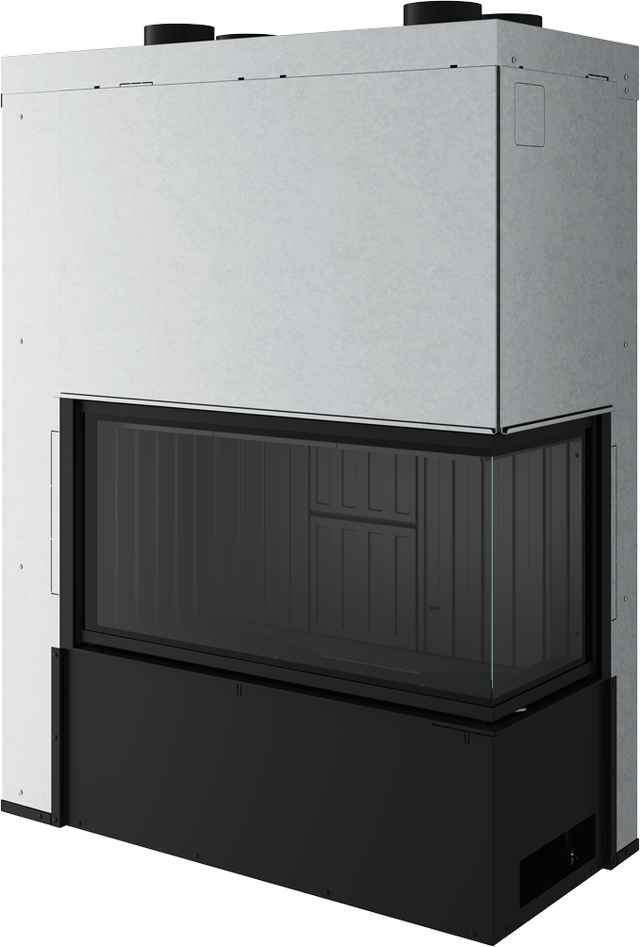

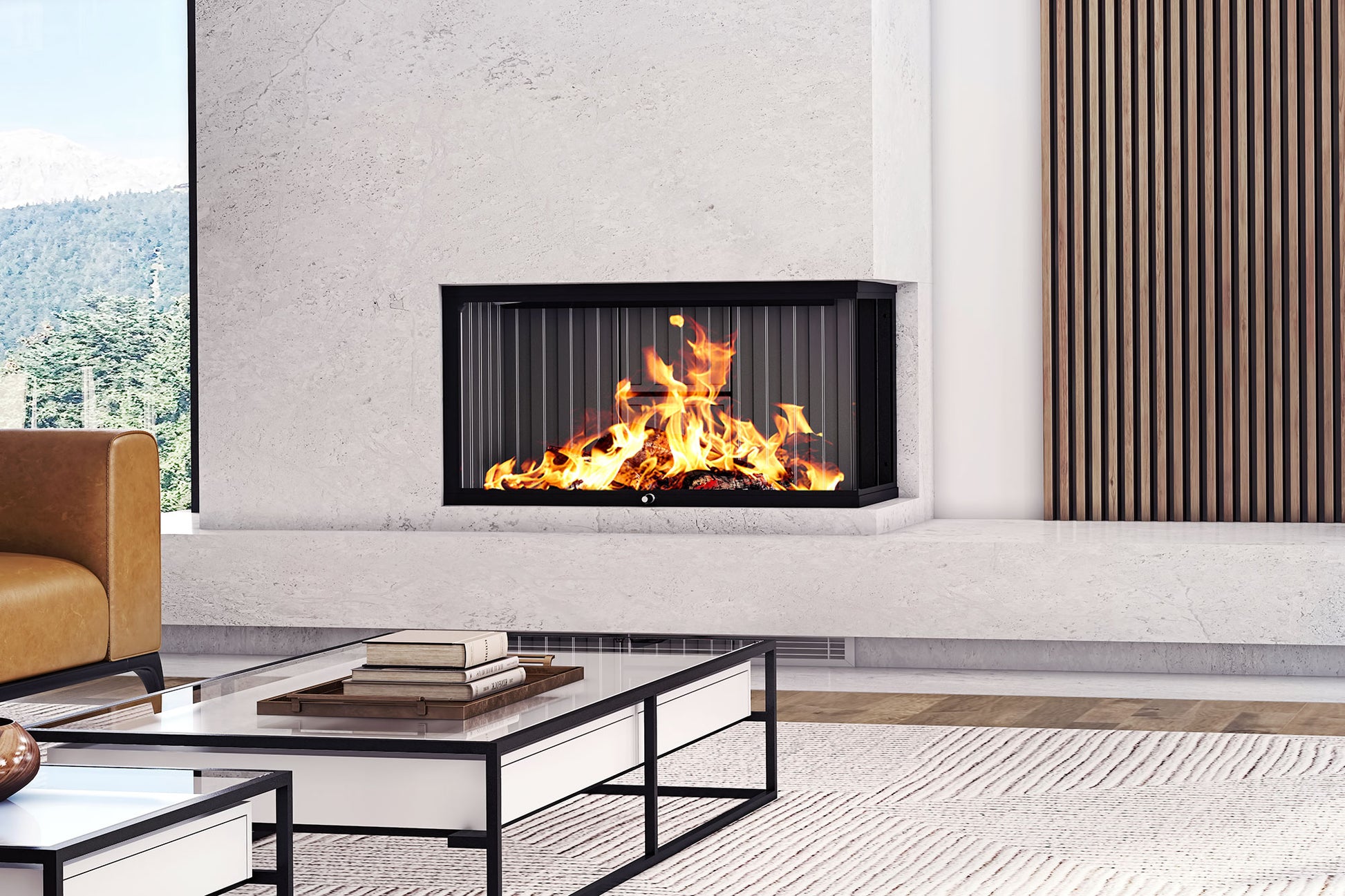

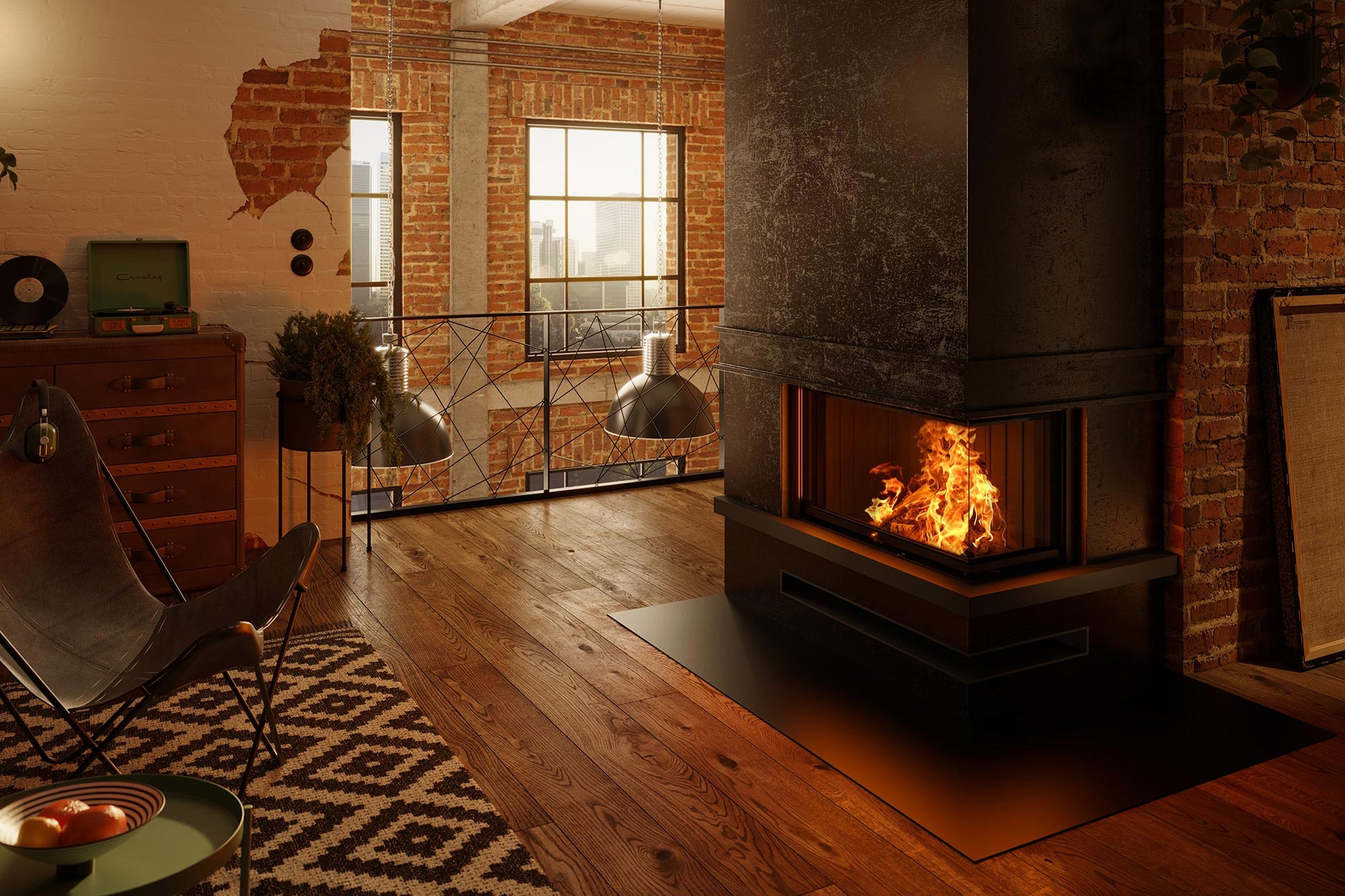

The LUXUS® 40 Corner is a premium 2-sided corner wood fireplace (front plus side glass), available in a left or right configuration, with an ultra-smooth guillotine door that lifts and disappears behind your finish. German engineering, chamotte refractory panels and up to 49,000 BTU deliver dramatic viewing with real warmth.
Specifications
Fuel Type: Wood (cordwood)
Max Heat Output: Up to 49,000 BTU
Firebox Volume: 4.16 cu. ft.
Ideal Log Length: 18"
Firebox Lining: Chamotte
Overall Dimensions: 51 3/8" W × 63 3/8" H × 28 5/16" D
Viewing Area (Full): 43 3/8" W × 21 1/8" H × 20 1/8" D
Weight: 617 lbs
Door Type: Guillotine glass door, corner (left or right)
Minimum clearances to combustibles from the LUXUS installation manual and quick installation guide (Canadian installation). Always confirm with the manual and local code before installing.
Unit to combustibles: 2" at the rear and closed side (mandatory 2" spacer)
Minimum ceiling height: 84" from bottom of fireplace enclosure to ceiling
Convection air grilles: 6 1/2" to ceiling and combustibles
Hearth extension: 20" in front × 12" at sides, measured from door glass
Combustibles (furniture, firewood): 48" in front of the unit
