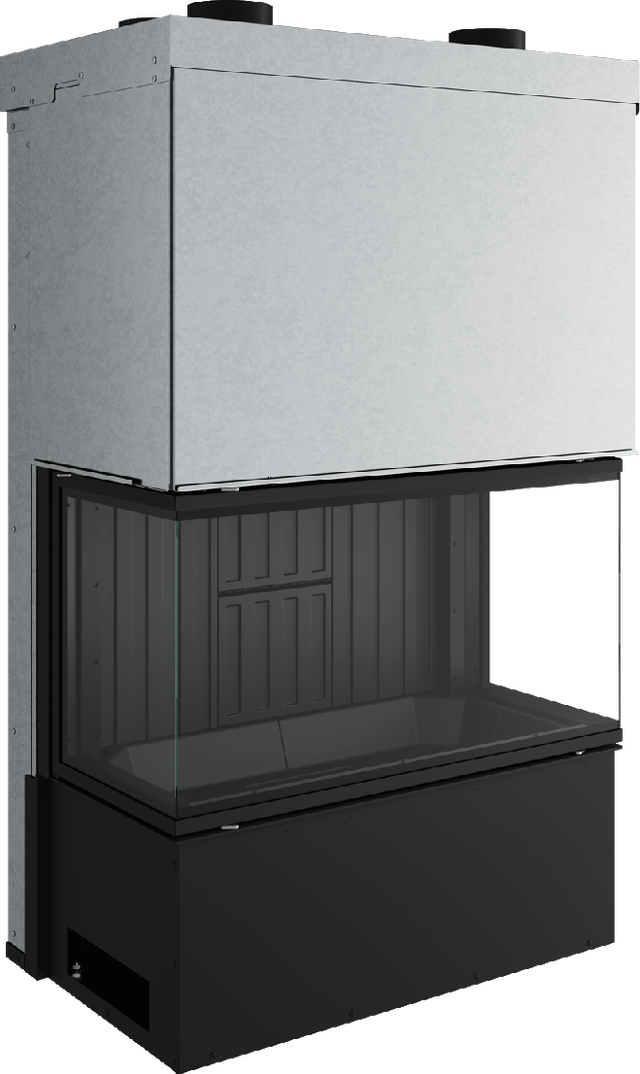

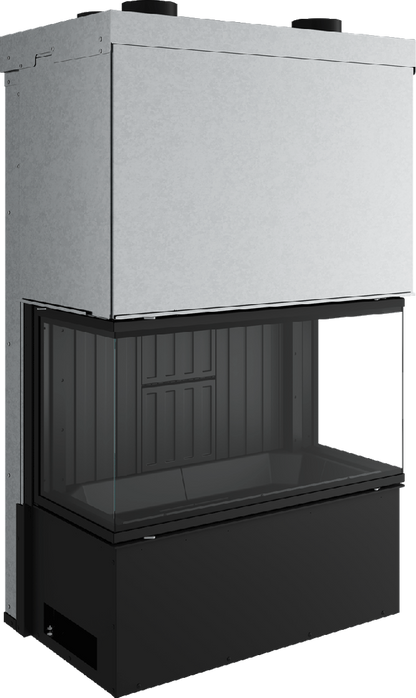

40 Bay

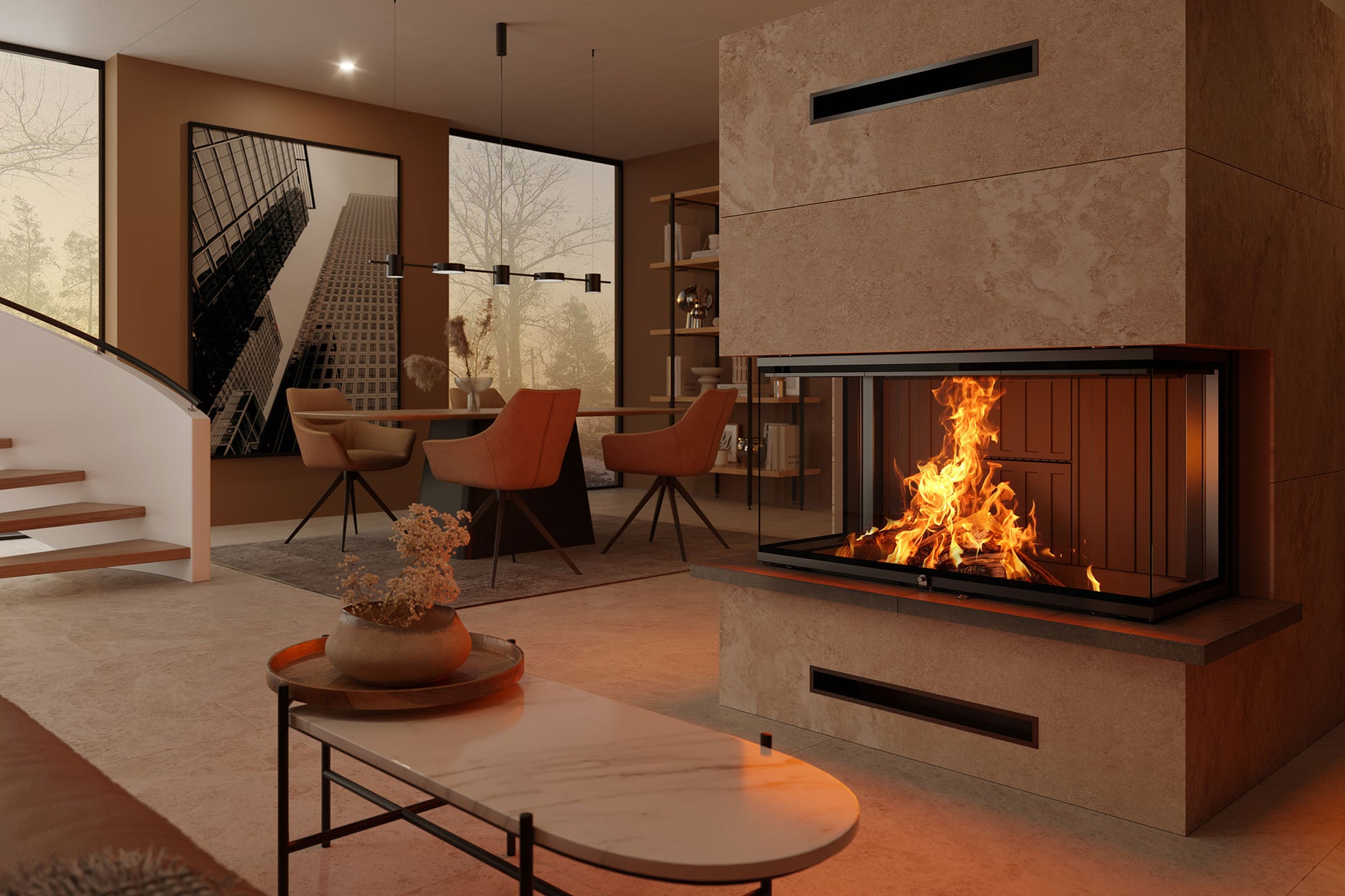

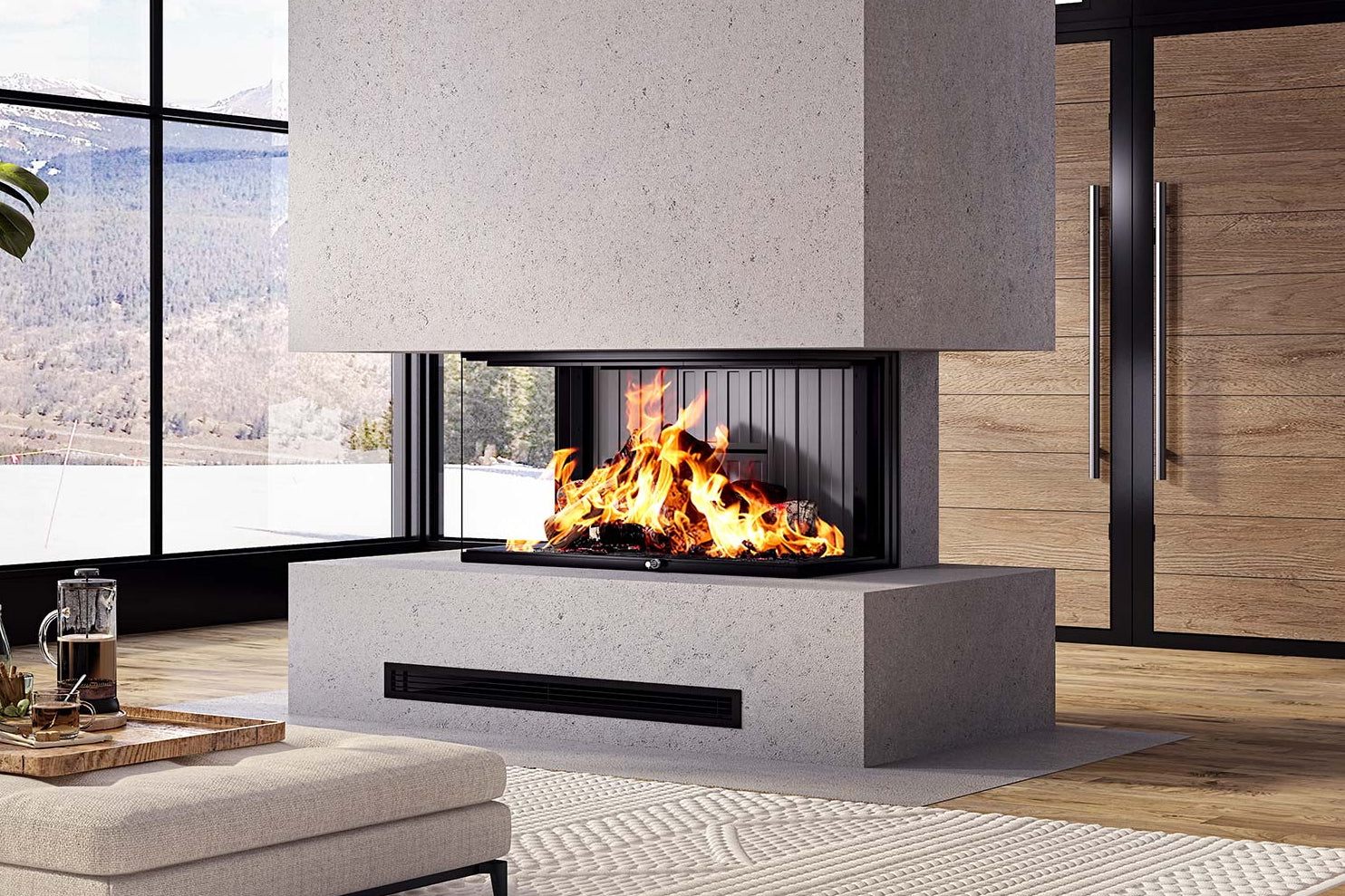

The LUXUS® 40 Bay is a premium 3-sided bay wood fireplace with an ultra-smooth guillotine glass door that lifts and disappears behind your finish for a clean, high-end look. German engineering, chamotte refractory panels for heat retention and up to 49,000 BTU make it a statement piece with real warmth.

Specifications

• Fuel Type: Wood (cordwood)
• Max Heat Output: Up to 49,000 BTU
• Firebox Volume: 5.88 cu. ft.
• Ideal Log Length: 20"
• Firebox Lining: Chamotte
• Overall Dimensions: 46 7/8" W × 67 1/8" H × 30 1/4" D
• Viewing Area (Full): 46 7/8" W × 22 15/16" H × 21 5/8" D
• Weight: 662 lbs
• Door Type: Guillotine glass door, bay (3 panes)
• Glass Size (Front): 39" W × 19 5/8" H
• Glass Size (Sides): 16 5/16" W × 19 5/8" H (each)
• Flue Diameter: 10" Class A chimney
• Chimney Height (Min/Max): 15–45 ft
• Approved Chimney: Selkirk, Security Chimneys, ICC RIS
• Air Circulation: Hot air gravity kit required
• EPA Status: EPA exempt

Clearances

Minimum clearances to combustibles from the LUXUS installation manual and quick installation guide (Canadian installation). Always confirm with the manual and local code before installing.

• Unit to combustibles: 2" at the rear (mandatory 2" spacer)
• Minimum ceiling height: 84" from bottom of fireplace enclosure to ceiling
• Convection air grilles: 6 1/2" to ceiling and combustibles
• Hearth extension: 20" in front × 20" at sides, measured from door glass
• Combustibles (furniture, firewood): 48" in front of the unit
