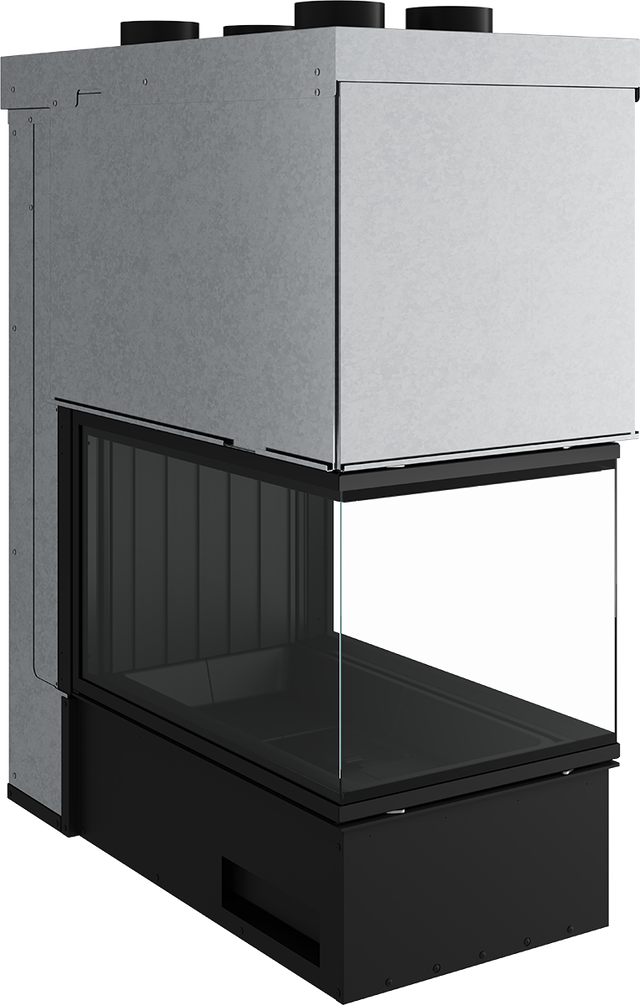

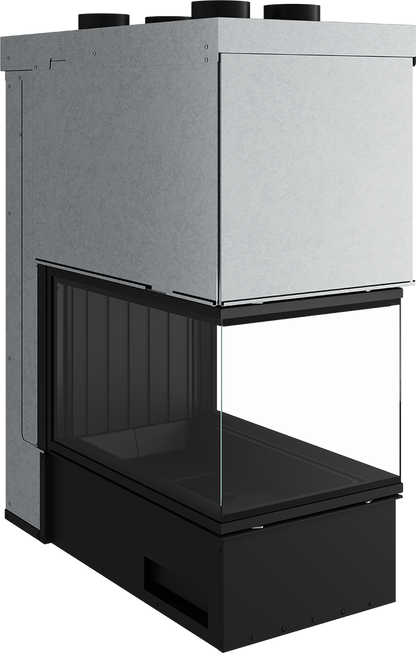

36 Pier

The LUXUS® 36 Pier is a premium 3-sided “pier” wood fireplace that gives you flame views from nearly anywhere in the room, with a smooth guillotine door that lifts and disappears behind your finish. Built with German engineering and chamotte refractory panels that store and radiate heat, it delivers up to 57,500 BTU for impressive fires and real warmth.

Specifications

• Fuel Type: Wood (Cordwood)
• Max Heat Output: Up to 57,500 BTU
• EPA Status: EPA Exempt
• Viewing Dimensions (Full Viewing): 29 3⁄8" W × 21 15⁄16" H × 39 7⁄8" D
• Overall Dimensions: 29 3⁄8" W × 57 7⁄8" H × 52 1⁄2" D
• Weight: 1023 lbs
• Door Style / Shape: Guillotine glass door, Pier
• Glass Size (Left / Right Panes): 35 5⁄8" W × 17 3⁄16" H (each)
• Glass Size (Front Pane): 21 9⁄16" W × 17 3⁄16" H
• Firebox Volume: 6 cu. ft.
• Ideal Log Length: 18"
• Firebox Lining: Chamotte
• Venting Type: Class A
• Venting Diameter: 10"
• Venting Height (Min/Max): 15–45 ft
• Approved Vent Brands: Selkirk, Security Chimneys, ICC RIS
• Air Circulation: Required Hot Air Gravity Kit
