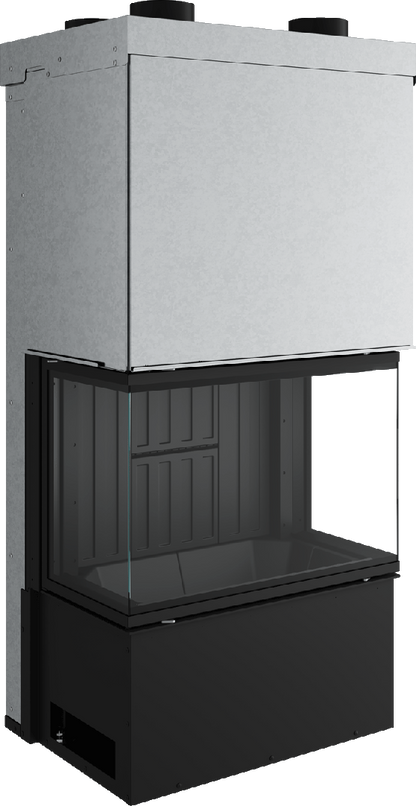

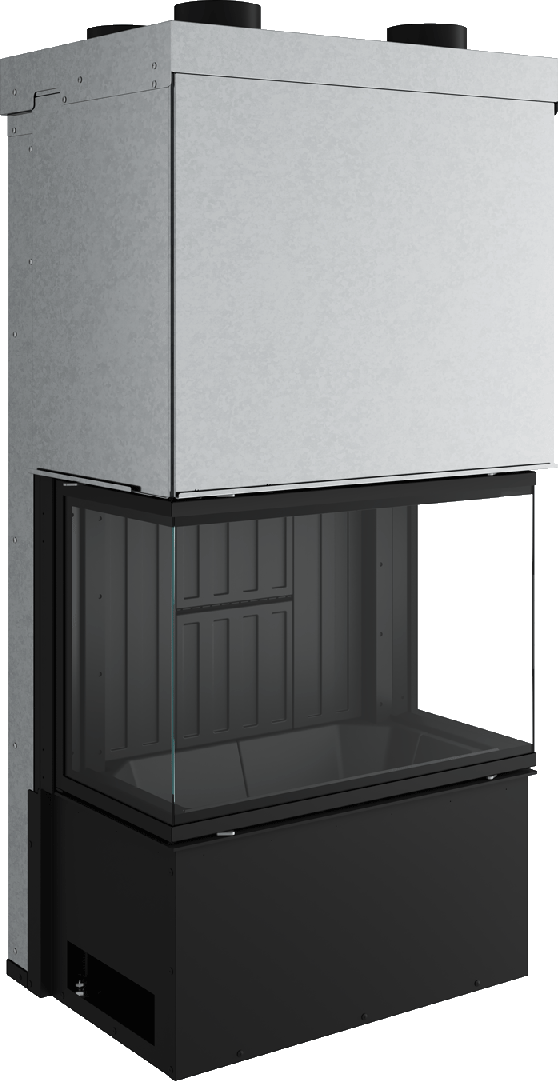

32 Bay

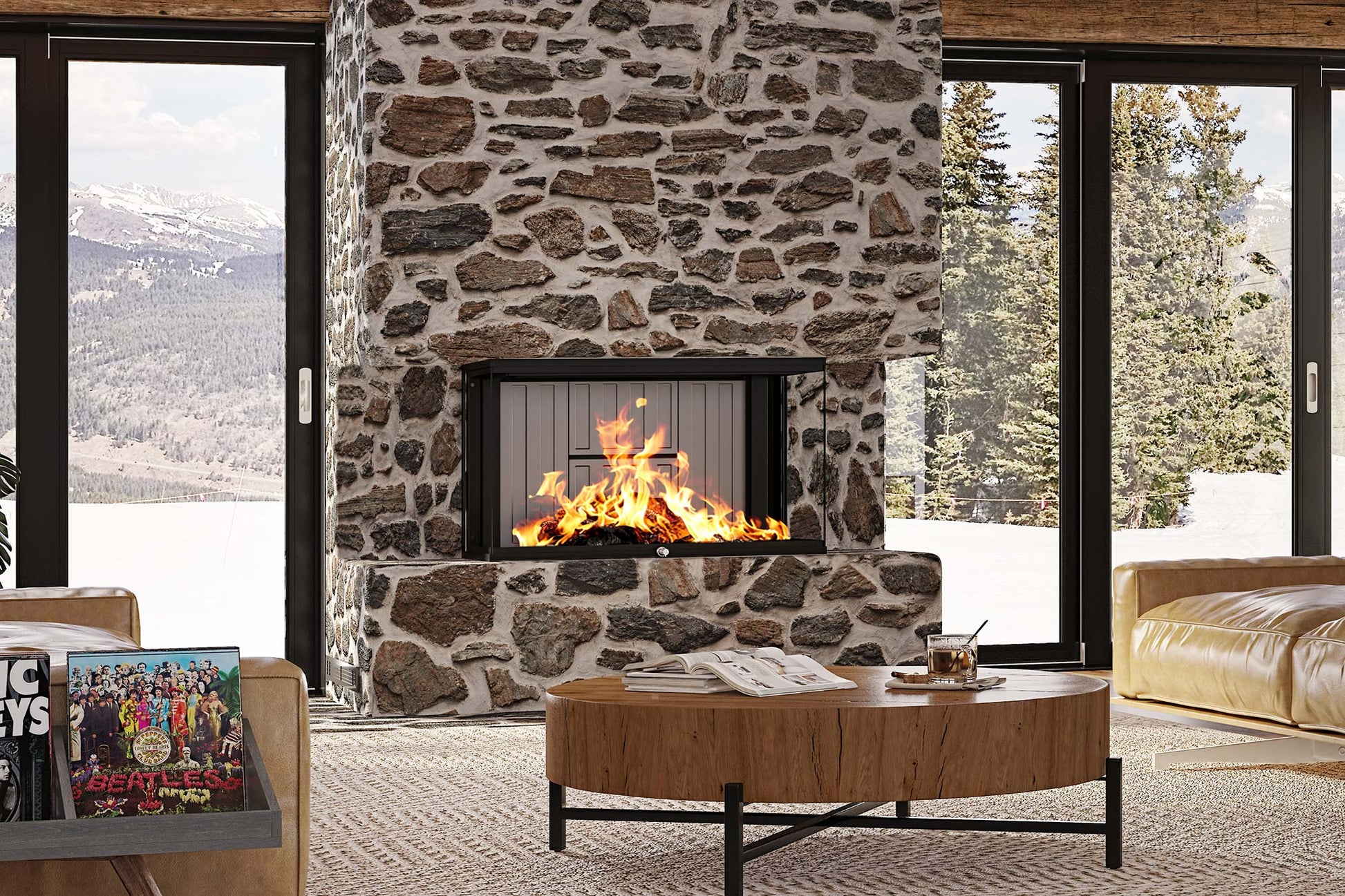

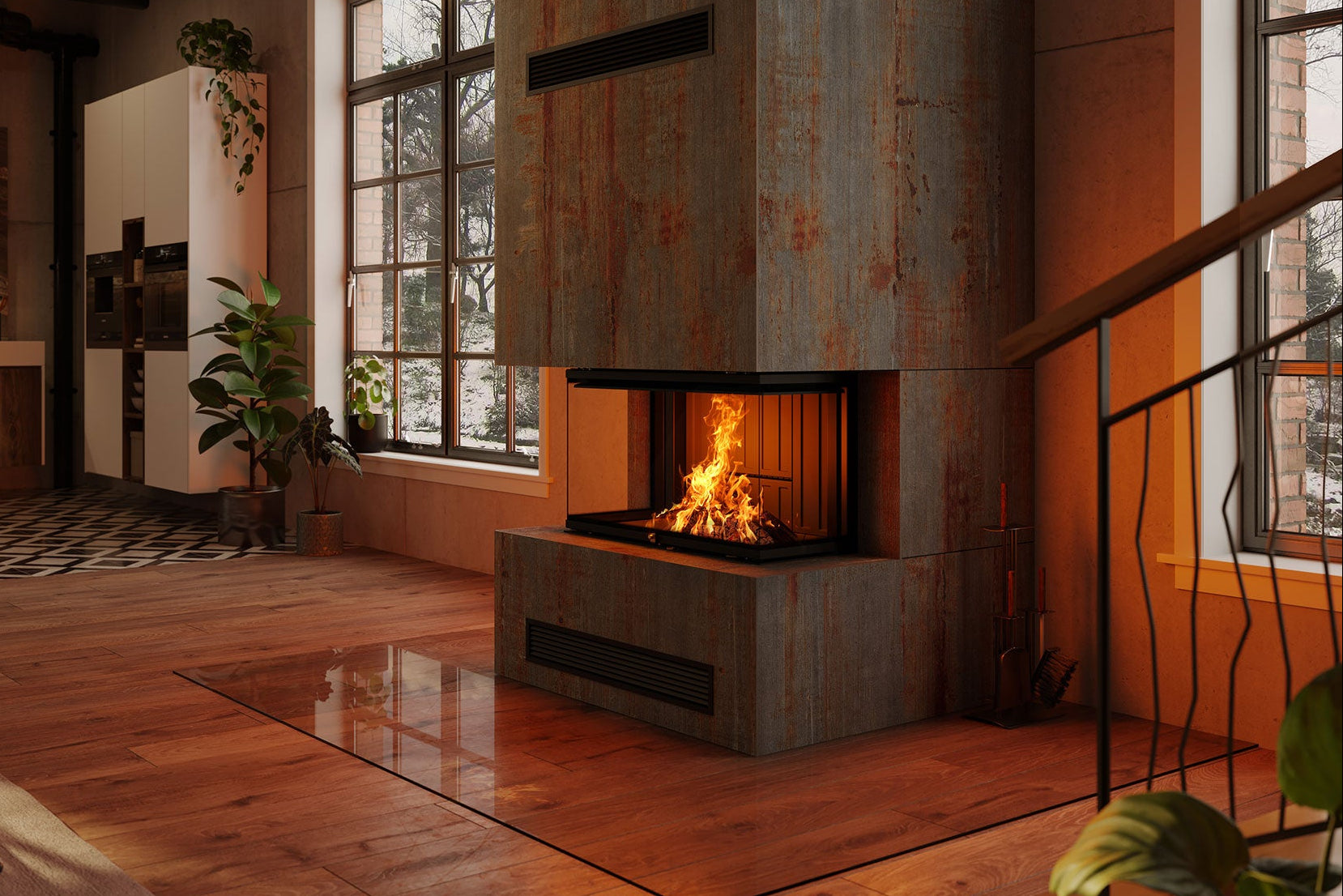

The LUXUS® 32 Bay is a German-engineered, 3-sided bay wood fireplace that delivers a huge flame view and a premium finish. Its smooth guillotine glass door lifts effortlessly and disappears behind your facing, while chamotte refractory panels absorb heat and radiate warmth back into the room.

Specifications

• Fuel Type: Wood (Cordwood)
• Max Heat Output: Up to 40,000 BTU
• EPA Status: EPA Exempt
• Viewing Dimensions (Full Viewing): 39" W × 22 15⁄16" H × 19 11⁄16" D
• Overall Dimensions: 39" W × 67 1⁄8" H × 28 1⁄4" D
• Weight: 617 lbs
• Door Style / Shape: Guillotine glass door, Bay (3 panes)
• Glass Size (Side Panes): 14 5⁄16" W × 19 5⁄8" H (each)
• Glass Size (Front Pane): 31 3⁄16" W × 19 5⁄8" H
• Firebox Volume: 4.38 cu. ft.
• Ideal Log Length: 20"
• Firebox Lining: Chamotte
• Venting Type: Class A, 10" diameter
• Venting Height (Min/Max): 15–45 ft
• Approved Vent Brands: Selkirk, Security Chimneys, ICC RIS
• Air Circulation: Required Hot Air Gravity Kit
