28 Pier

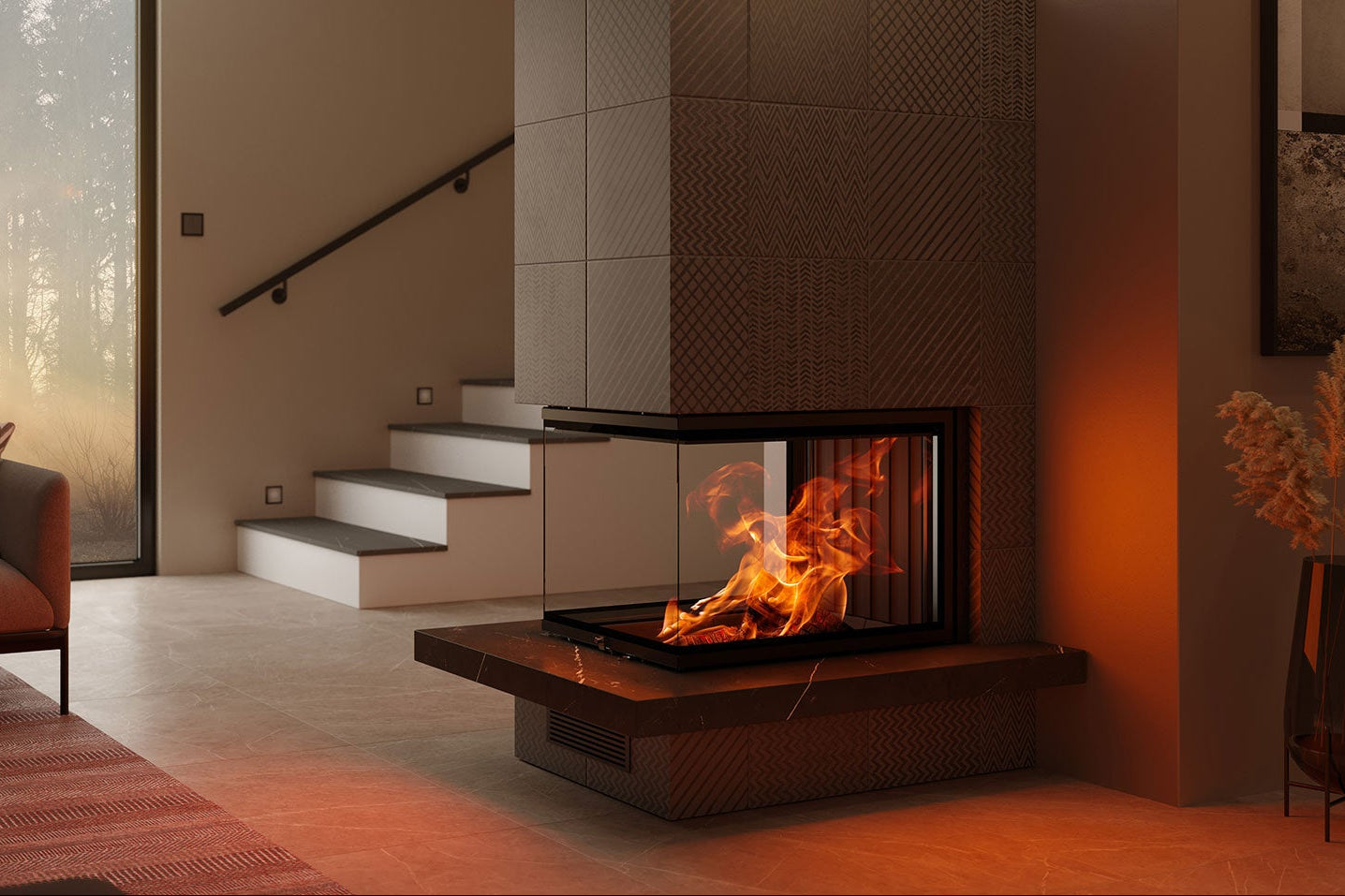

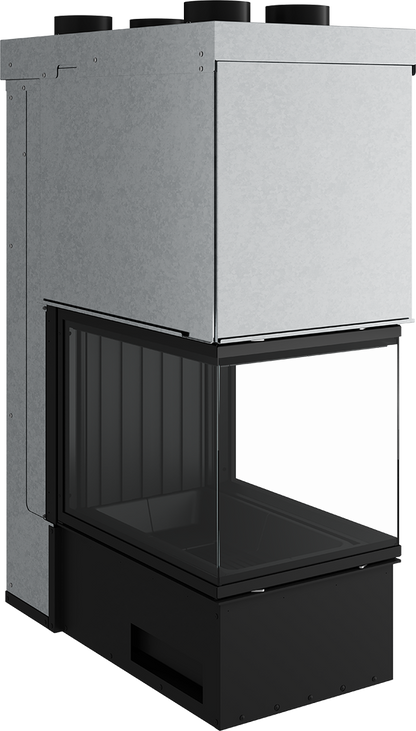

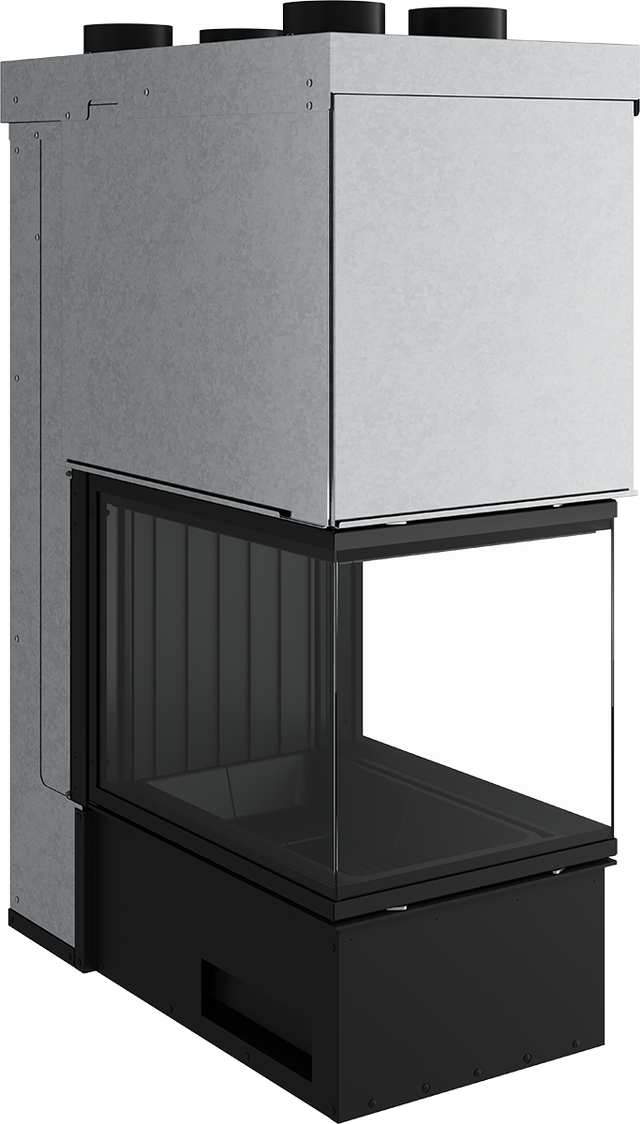

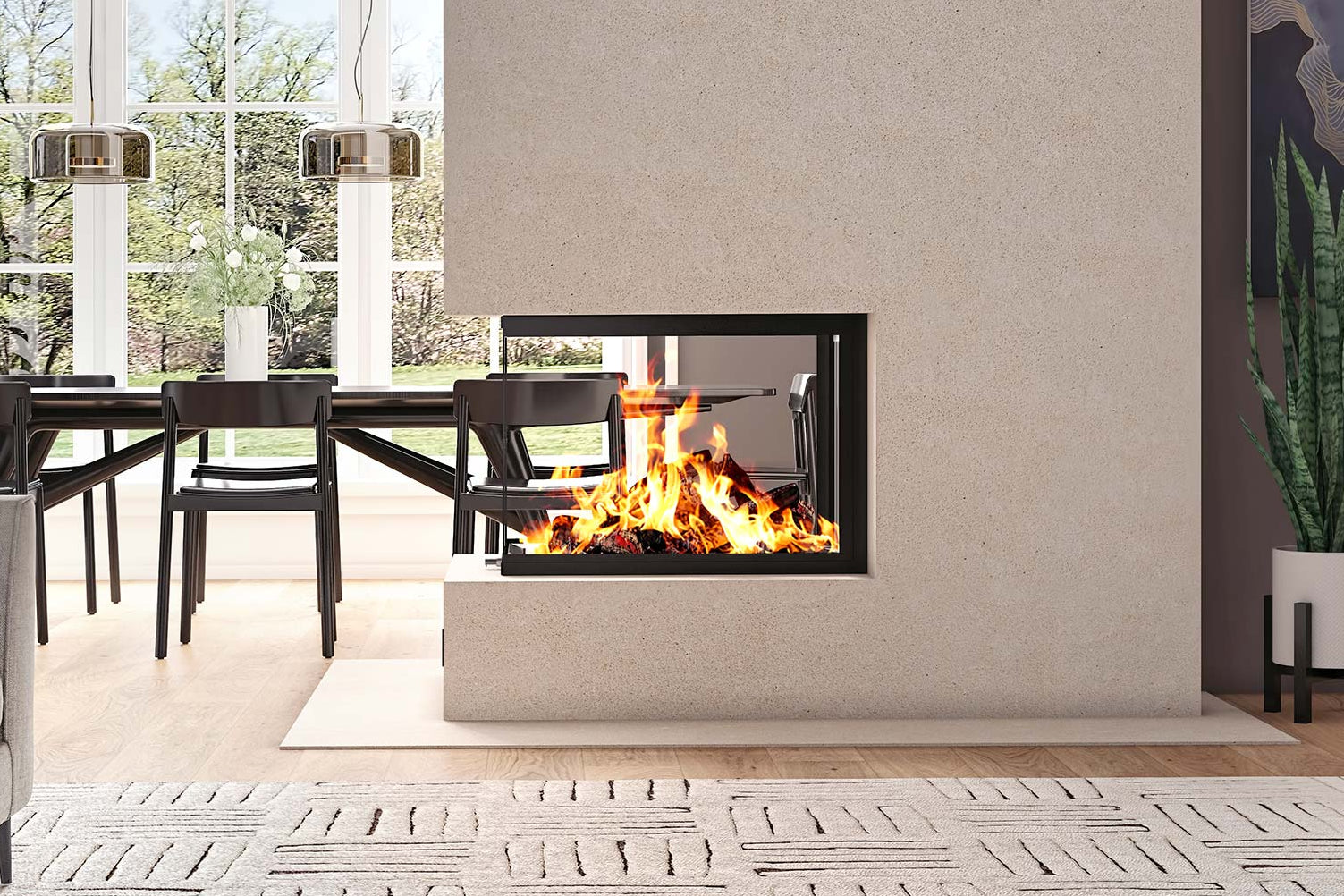

The LUXUS® 28 Pier is a premium 3-sided pier wood fireplace designed for dramatic viewing from multiple angles. An ultra-smooth guillotine door disappears behind your finish, and chamotte refractory panels absorb heat and radiate it back into the room.

Specifications

• Fuel Type: Wood (cordwood)
• Max Heat Output: Up to 49,000 BTU
• Firebox Volume: 3.94 cu. ft.
• Ideal Log Length: 18"
• Firebox Lining: Chamotte
• Overall Dimensions: 27 1/4" W × 57 7/8" H × 44 5/8" D
• Viewing Area (Full): 27 1/4" W × 21 15/16" H × 32 1/8" D
• Weight: 827 lbs
• Door Type: Guillotine glass door, pier (3 panes)
• Glass Size (Front): 19 1/2" W × 18 9/16" H
• Glass Size (Sides): 26 11/16" W × 18 9/16" H (each)
• Flue Diameter: 10" Class A chimney
• Chimney Height (Min/Max): 15–45 ft
• Approved Chimney: Selkirk, Security Chimneys, ICC RIS
• Air Circulation: Hot air gravity kit required
• Mantel Clearance: Combustible 6" shelf at 19"; no clearance needed for Ambiance® non-combustible mantels
• EPA Status: EPA exempt

Clearances

Minimum clearances to combustibles from the LUXUS installation manual and quick installation guide (Canadian installation). Always confirm with the manual and local code before installing.

• Unit to combustibles: 2" at the rear (mandatory 2" spacer)
• Minimum ceiling height: 84" from bottom of fireplace enclosure to ceiling
• Convection air grilles: 6 1/2" to ceiling and combustibles
• Hearth extension: 20" in front × 20" at sides, measured from door glass
• Combustibles (furniture, firewood): 48" in front of the unit

Documents

• Installation & Owner's Manual
• Dimension Sheet
• Brochure
