Osburn

1700 Insert

1700 Insert

In stock

Regular price $2,234.00 USD
Regular price Sale price $2,234.00 USD
Sale Sold out
Faceplate
Faceplate Trim
Door Overlay

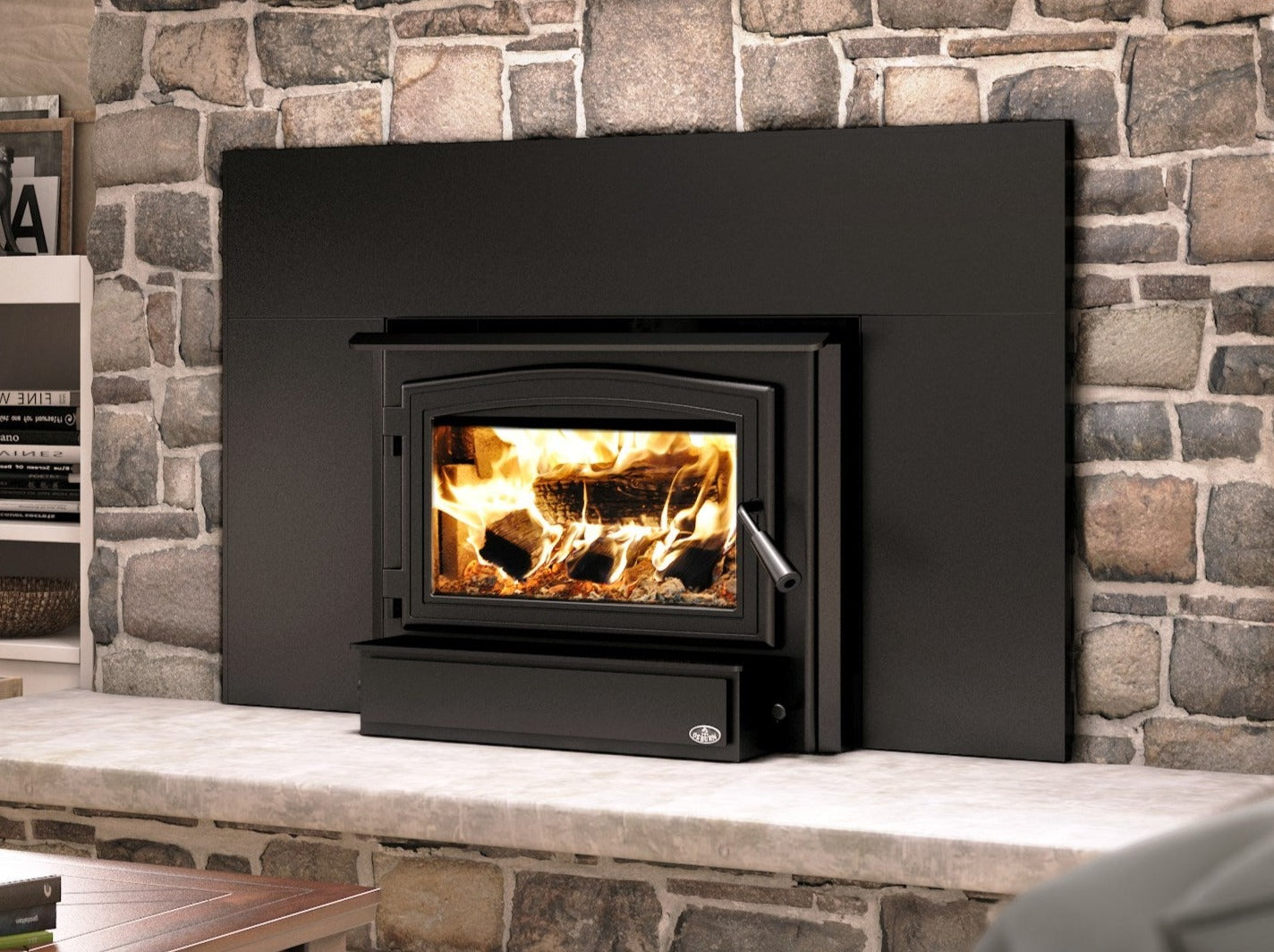

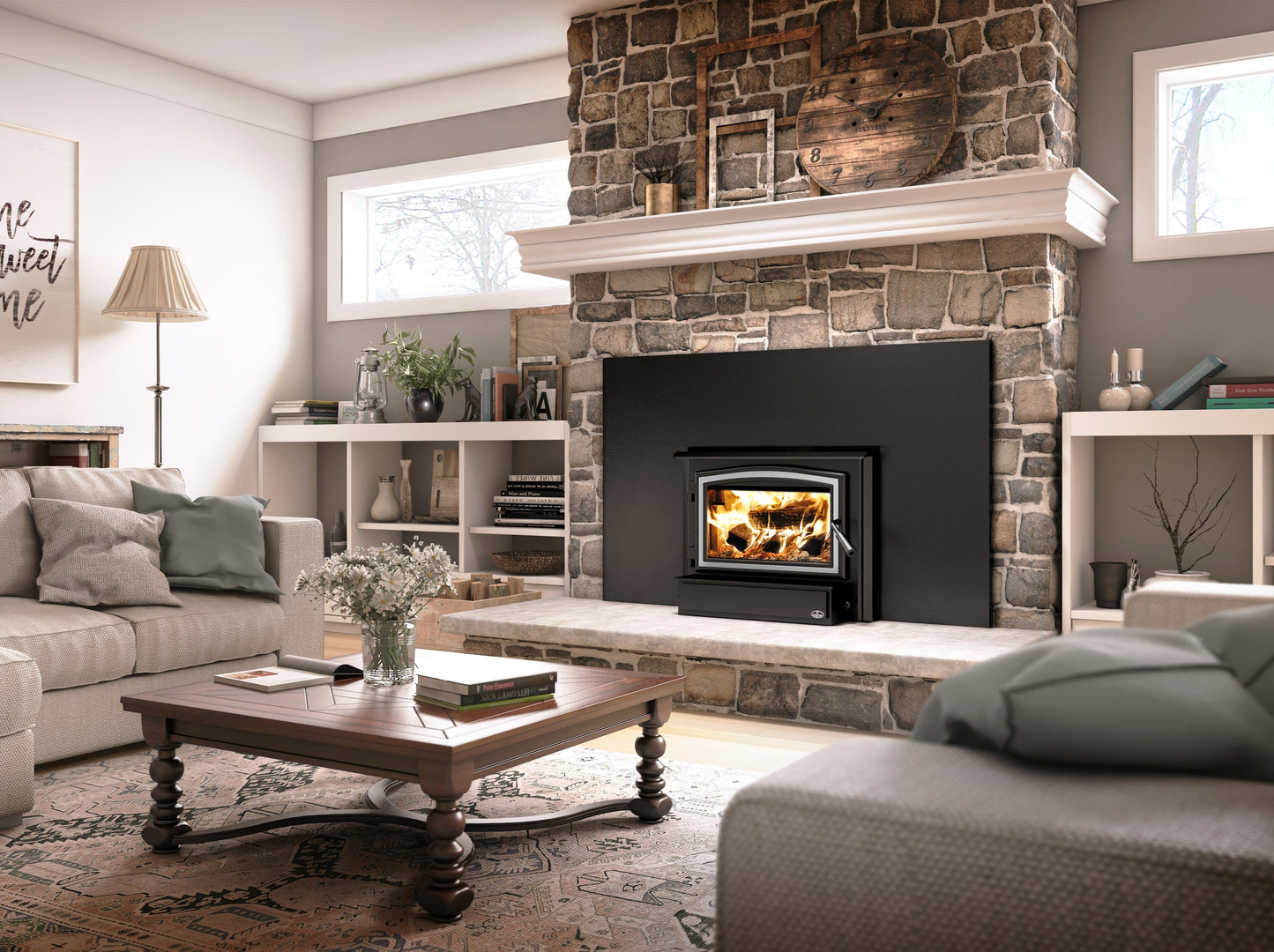

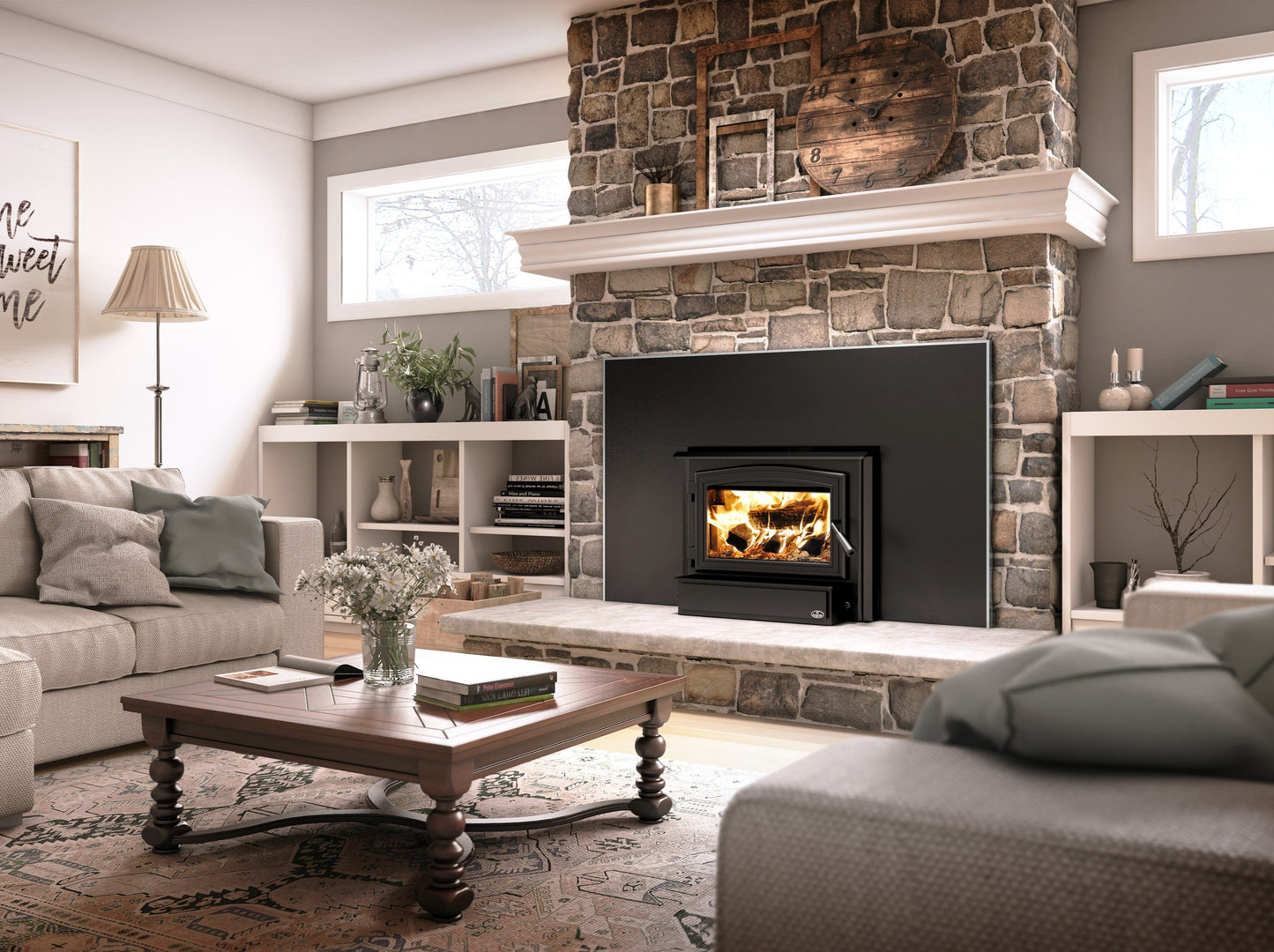

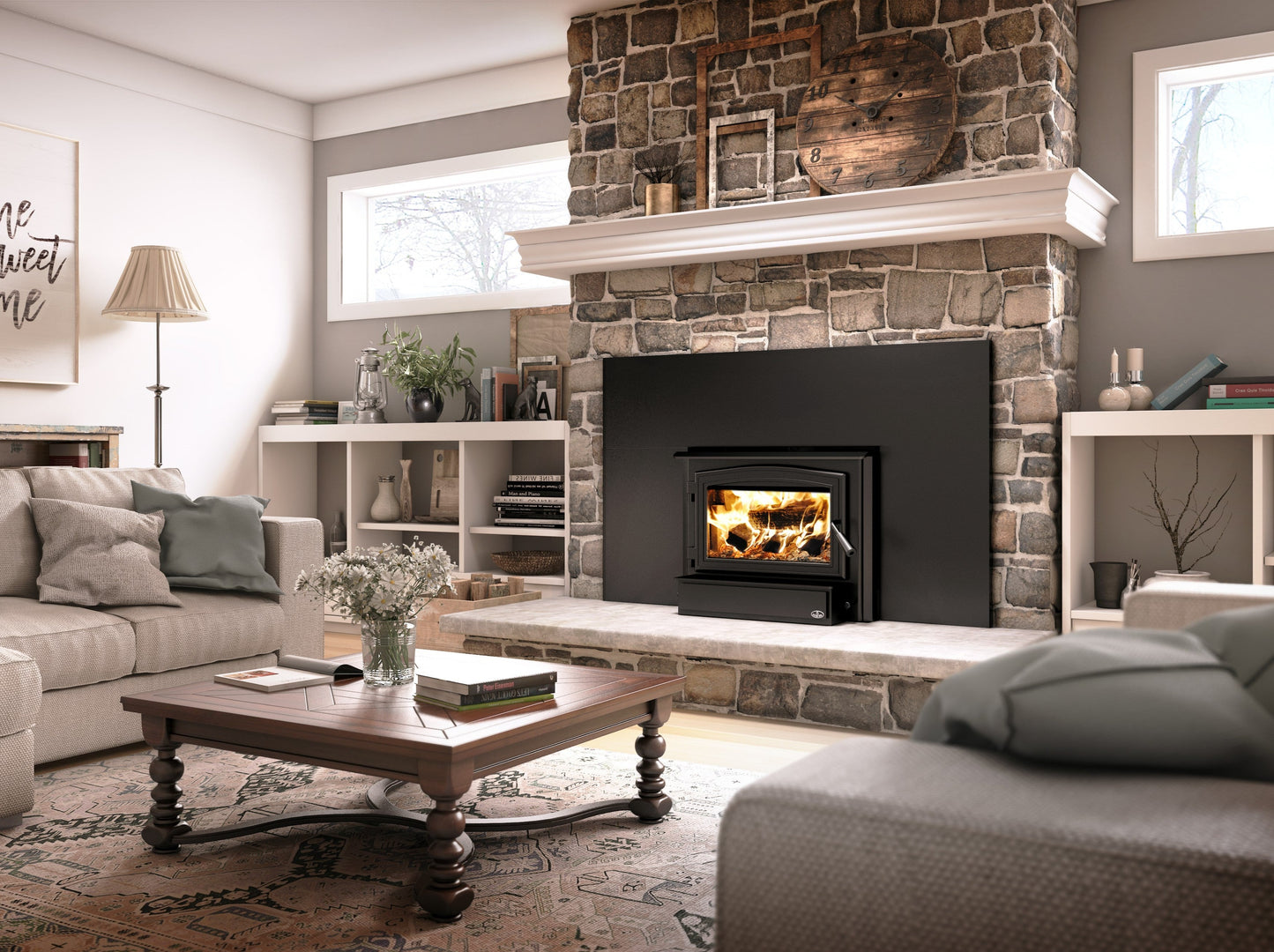

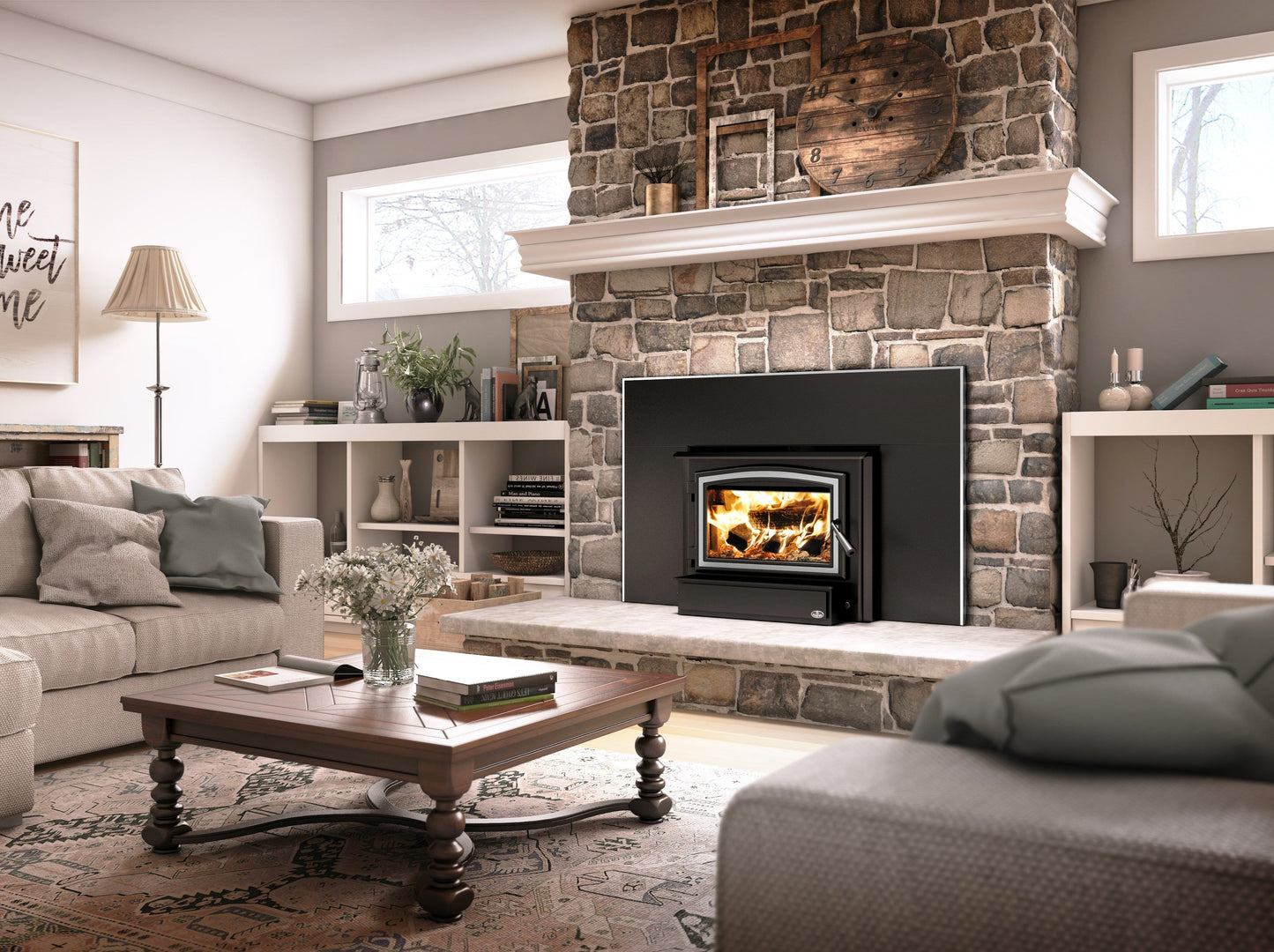

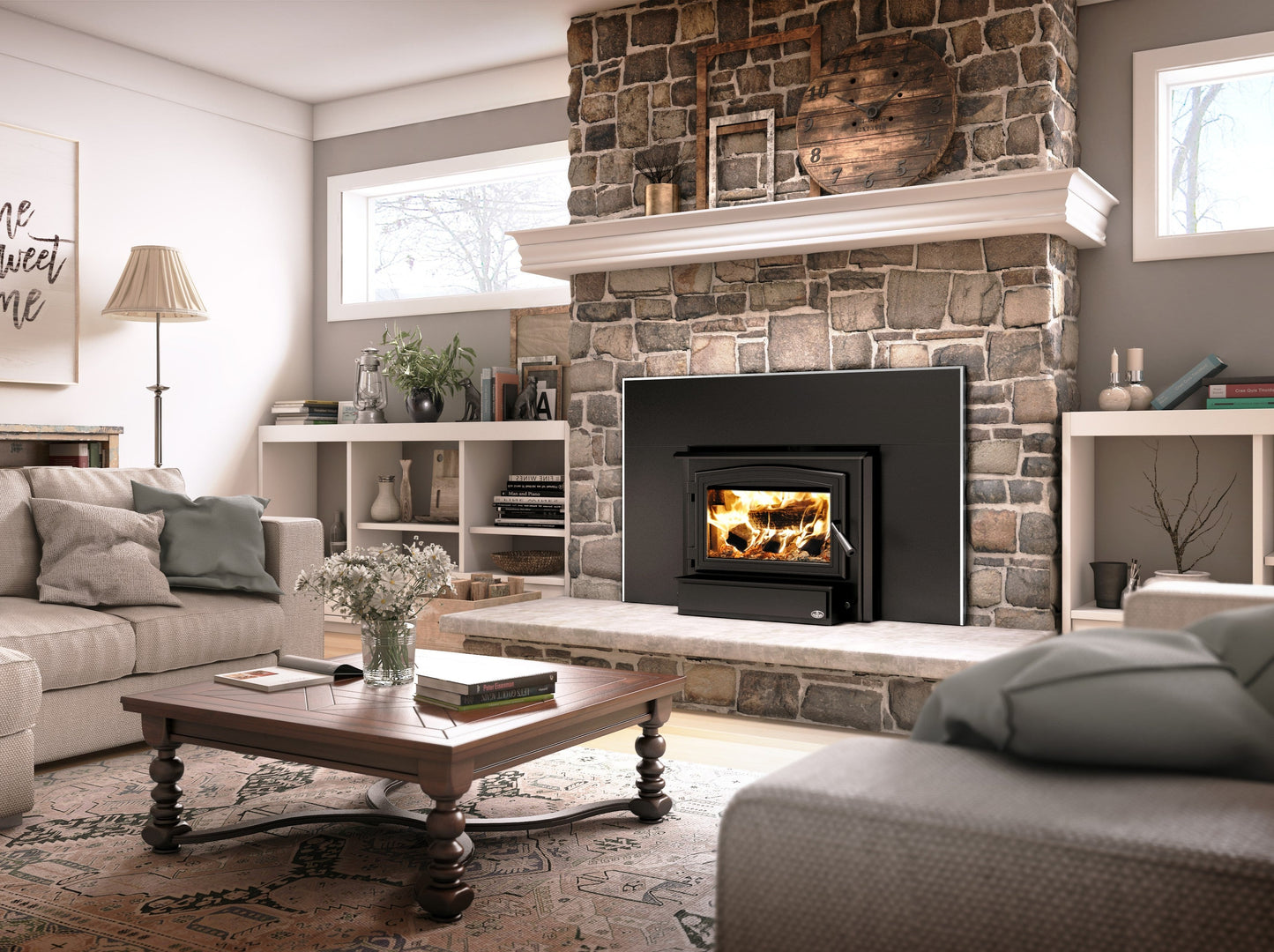

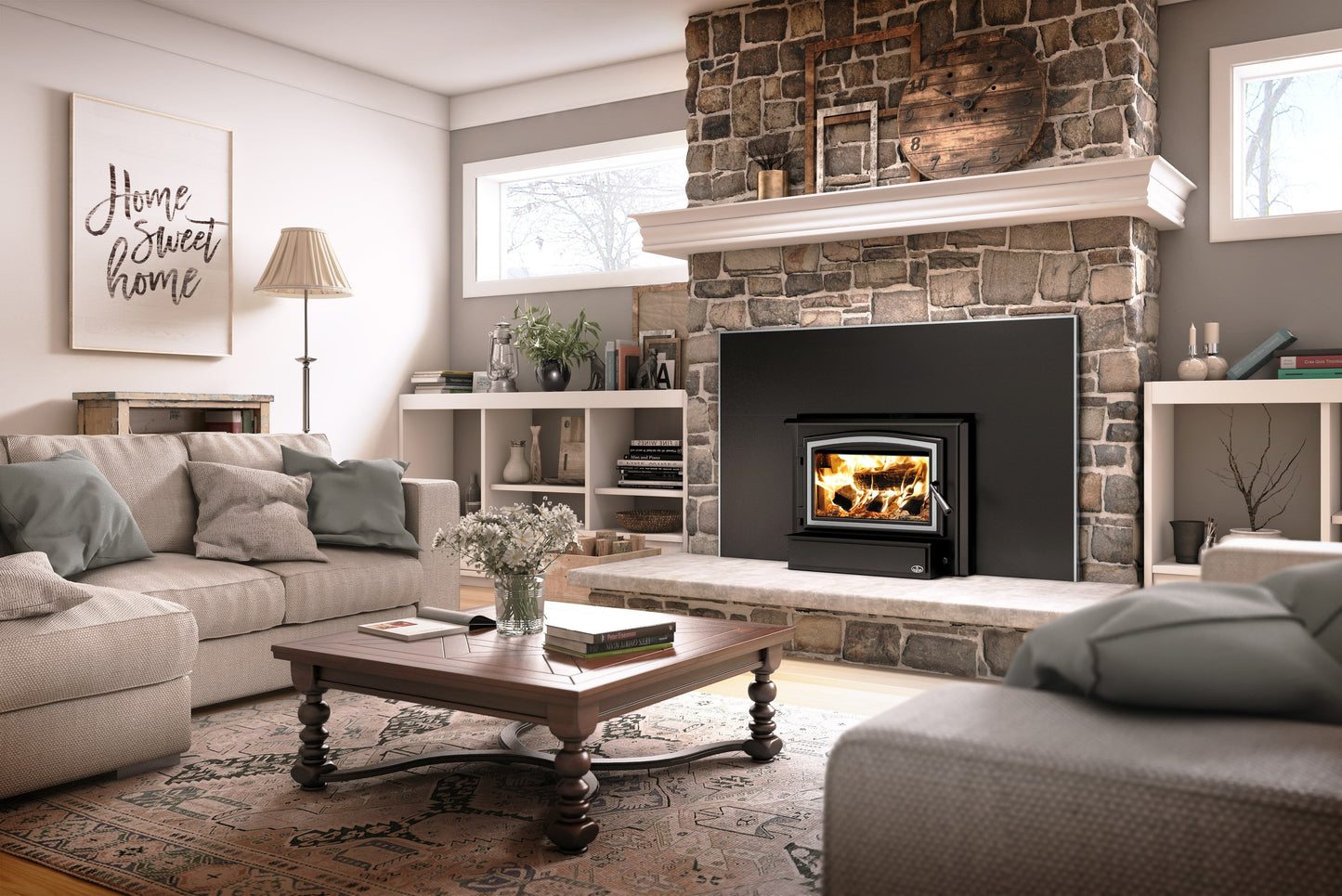

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device whose average particle emission rate is prodigiously low at 1.26 g/h!

Inside and out, this insert is engineered from high-quality materials that put you at the center of a heating experience for many years: high-density bricks, a cast iron door, and a quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel-plated: door overlays, faceplates, and faceplate trims.

Specifications

Appliance Performance

Fuel type : Dry cordwood (16" recommended)
Recommended heating area-ft² : 500 - 1,800
Overall firebox volume-ft³ : 1.9
EPA loading volume-ft³ : 1.44
Maximum burn time : 6 h
Maximum heat output-dry cordwood : 65,000 BTU/h (19 kW)
Overall heat output rate < : 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
Average overall efficiency (dry cordwood) : 70 % (HHV) 75 % (LHV)
Optimum overall efficiency : 78 %
Optimum heat transfer efficiency : 74 %
Average particulate emissions rate : 1.26 g/h
Average CO : 58 g/h
Manual and Dimensions

Osburn 1700 insert Manual

Osburn 1700 Dimensions
